What Is a Rock Slider?

Rock sliders are heavy-duty accessories designed to protect your vehicle’s rocker panels and body from damage caused by rocks, boulders, tree stumps, and other obstacles on rugged trails.

What Is a Rock Slider Kickout?

A kick-out protects the back side of your vehicle from getting pinned in more challenging terrain and can act as a pivot point.

Which Should You Choose: Kickouts or No Kickouts?

Choose kickouts if you want more step surface, increased clearance, and stronger side protection. Choose no kickouts if you prefer a low-profile look and frequently drive narrow trails.

Kickout Vs No Kickout: Rock Sliders Cali Raised LED

Kickout , No Kickout

Kickout Vs No Kickout: Rock Sliders Explained

Jul 28 2026 1 comment

Kick out rock sliders flare the rear outboard tube end away from the body for a deflection advantage on angled rock hits. No kickout sliders keep the rear tube tucked parallel to the body for a narrower profile on tight trails. Both configurations offer full rocker protection. The choice depends on your terrain and build style.

What Is a Kickout on a Rock Slider?

The kickout is the rear end of the outboard slider tube. On a kickout configuration, the tube bends outward at an angle as it approaches the rear of the slider. This flared end points away from the truck body and extends slightly past the truck's widest point at the rear of the slider.

The kickout serves a specific function on trail. When you approach rocks from an angle, or when a boulder catches the rear of the slider as you drive forward, the flared tube end acts as a deflector. It redirects the contact point upward and outward rather than letting the rear tube dig in and stop the truck. On rock-heavy terrain with irregular surfaces, this deflection advantage matters.

The kickout also contributes to the overall look of the build. The flared end gives the slider a more armored, aggressive appearance that a lot of Tacoma and 4Runner owners prefer over a tucked rear tube end.

What Is No Kickout?

On a no kickout configuration, the outboard tube runs parallel to the body from front to rear and ends flush. There is no flare at the rear. The slider profile stays narrow and consistent across its full length.

No kickout is the clean-profile option. The consistent tube line looks sharp on builds where a minimal, tucked aesthetic is the goal. More practically, the narrower rear profile reduces the chance of the slider snagging in tight gaps between trees, brush, or narrow rock slots.

On highly technical wooded trails, no kickout is a legitimate performance choice. Every inch of clearance at the rear of the slider matters when you are navigating between trees at two inches of clearance per side. The tucked rear end keeps things simpler on that kind of terrain.

Kickout vs No Kickout: How the Trail Use Cases Differ

The terrain type is the most reliable guide for this decision.

Open rocky terrain: Kickout performs better. When you are navigating boulder fields, shelf rock, or rocky washes where rocks approach from irregular angles, the flared rear tube deflects impacts that would otherwise catch and hold. Desert Southwest, Sierra Nevada granite, Moab sandstone terrain all favor kickout.

Tight wooded trails: No kickout performs better. Pacific Northwest trails, Appalachian single-track, and wooded routes with close tree spacing demand the narrowest possible profile. The kickout adds width at the rear of the truck and increases the chance of snagging. No kickout keeps the truck moving through tight gaps.

Mixed terrain: Most builds do both. For owners who run a mix of rocky open terrain and wooded trails, kickout is still the more popular choice because the deflection advantage on rocks outweighs the small width penalty on wooded sections. But this is a judgment call based on which terrain type you run more often.

Does Kickout Change the Width of the Truck?

Yes, marginally. The kickout flares the rear tube end outboard, which adds a small amount of width at the rear of the slider. The exact measurement depends on the vehicle fitment and the degree of the kickout angle, but it is typically in the range of one to two inches of additional width at the rear tube end compared to no kickout.

For most trail use, this difference is not consequential. For tight-clearance wooded terrain, it can matter. If you run a route where you know two inches of width is the difference between clearing a gap or not, no kickout gives you that margin back.

Does Kickout Affect the Slider's Protective Function?

No. The rocker panel protection provided by both kickout and no kickout sliders is identical. The slider tube, the frame mounting, and the steel specification are the same on both configurations. The kickout is an add-on feature at the rear tube end, not a structural modification. Both configurations transfer rock strike loads into the frame and keep the same steel between your rocker panel and the trail.

Kick Out Option Available

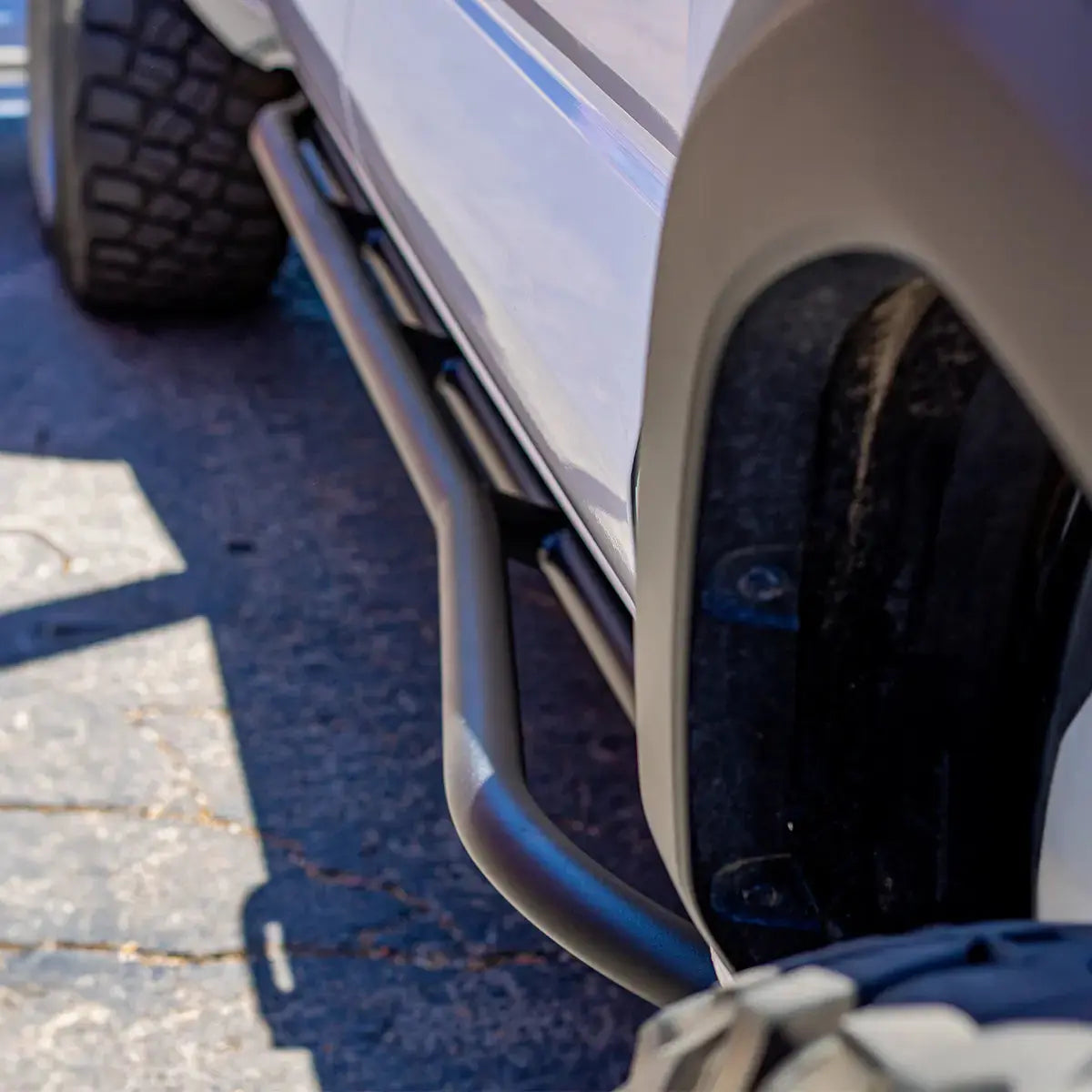

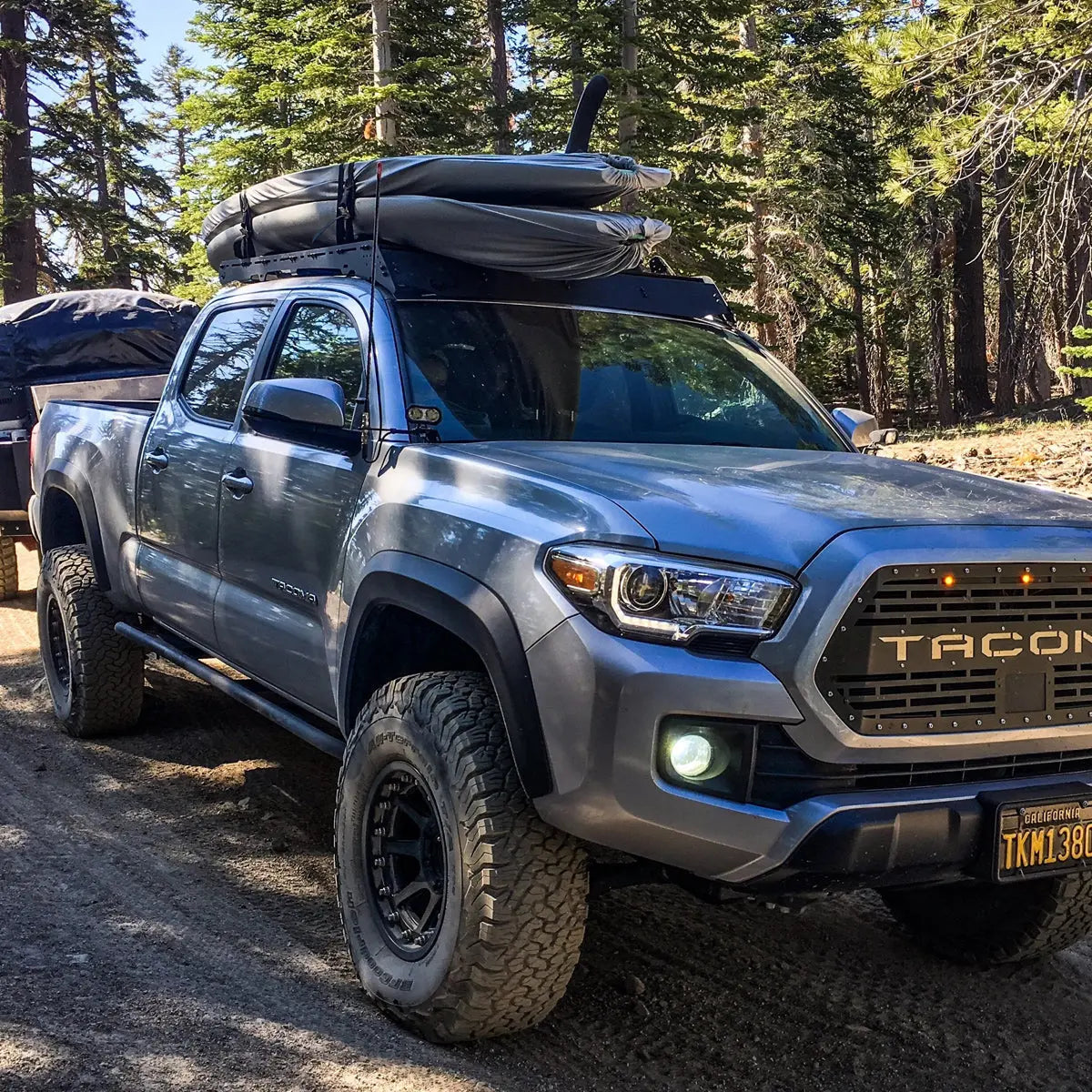

Trail Edition Rock Sliders For 2005-2023 Toyota Tacoma

Available in kick out and no kick out. 20-degree tucked mount for maximum clearance.

From $1,069.99 Shop now →

Kick Out Option Available

Step Edition Rock Sliders For 2005-2023 Toyota Tacoma

Available in kick out and no kick out. Flat step plate for daily entry and exit.

From $1,069.99 Shop now →

Kick Out Option Available

Trail Edition Bolt On Rock Sliders For 2010-2024 Toyota 4Runner

Available in kick out and no kick out. 20-degree tucked mount for 5th gen 4Runner.

From $909.99 Shop now →

Kick Out Option Available

Step Edition Bolt On Rock Sliders For 2010-2024 Toyota 4Runner

Available in kick out and no kick out. Flat-mount step slider for the 5th gen 4Runner.

From $909.99 Shop now →

Quick Decision Guide

If you run mostly open rocky terrain: choose kickout. If you run tight wooded trails: choose no kickout. If you run both: kickout is the more popular choice for mixed terrain builds. If you are building a show truck or prioritize a clean minimal look: no kickout gives you the tightest profile.

Both options are available at order time. You select kickout or no kickout when choosing your variant along with cab size, finish, and edition. There is no cost difference between the two configurations on most fitments. For help choosing your finish, see our rock slider coating options guide.

Frequently Asked Questions

Does kickout add to the overall width of the truck?
Yes, marginally. The kickout flares the rear tube end outboard, adding approximately one to two inches of width at the rear of the slider compared to no kickout. For most trail use this is not consequential, but on tight wooded terrain it can matter.

Is kickout stronger than no kickout?
Neither is structurally stronger. Both configurations use the same steel tube spec and frame mounting hardware. The kickout is a geometry feature at the rear tube end, not a reinforcement.

Can I add kickout later if I order no kickout?
No. The kickout is a fabricated feature of the slider tube, not an add-on component. You select your preference at the time of order.

Do both Trail and Step editions come in kickout and no kickout?
Yes. Both editions for Tacoma and 4Runner are available in kickout and no kickout configurations. For help picking between editions, see our Trail Edition vs Step Edition comparison. The kickout option is independent of which edition you choose.

Is kickout the more popular choice?
Yes, for most builds. The majority of buyers on mixed terrain choose kickout for the deflection advantage and the aggressive look. No kickout is a deliberate choice for narrow-trail and wooded-terrain builds.
