Roof Rack Mounting: Proper Gear Mounting And What You Need To Know

Proper roof rack gear mounting starts with understanding your weight limit and keeping the heaviest items centered low on the rack. This guide covers everything from static weight ratings to rooftop tent mounting, so your gear stays secure from the trailhead to camp.

What Weight Can a Toyota Roof Rack Hold?

Most aftermarket roof racks for the Tacoma, 4Runner, and Tundra carry a dynamic weight rating of 150-165 lbs while moving and a static rating of 300+ lbs while parked. Dynamic rating applies any time the vehicle is in motion. Static rating applies to a parked vehicle, which matters when you sleep in a rooftop tent on a flat surface.

These ratings reflect the rack in isolation. Your Toyota's factory roof also has its own rating, typically 150-165 lbs combined with the rack. Installing a quality aftermarket rack transfers load more evenly across multiple factory mounting points, which generally keeps you well within Toyota's roof rating when used responsibly. Check your specific vehicle's owner manual and confirm with the rack manufacturer before loading heavy.

How Do You Set Up a Roof Rack for Overlanding?

A clean overlanding roof rack setup follows a simple principle: heavy items centered, lightweight items toward the edges, nothing that can shift under braking or cornering. Here is a practical workflow:

1. Center of gravity: Mount sleeping gear and dense items directly over the vehicle centerline and as close to the roofline as possible. Every inch of height multiplies the rocking force on your suspension in corners.
2. Front bar: Reserve the front cross-member for your light bar bracket or camera. Avoid placing heavy gear here — it places moment load ahead of the front mounting points.
3. Secure everything with straps or hard mounts: Ratchet straps work for bags, cases, and soft goods. Use T-nut bolted hard mounts for anything with a bracket, including RTT bases, awning arms, and light bar mounts.
4. Check tension at 10 miles: Vibration loosens straps during the first few miles. Pull over and re-check every tie-down on the first trip with new gear aboard.

Which Roof Rack Is Right for Your Toyota?

Cali Raised LED builds two rack tiers for Tacoma, 4Runner, and Tundra: the Premium and the Economy. Both use the same CNC-bent steel construction and bolt to the same factory mounting points. The difference is in the profile and feature set.

The Premium Rack includes a full-length extrusion rail system with T-slot channels for sliding accessories without disassembly. If you plan to add lights, awnings, RTT mounts, or MOLLE panels, the extrusion system saves time every time you reconfigure your setup. The Premium Rack for Tacoma also offers an optional light bar cut-out in the leading cross-member for the cleanest possible bar mount.

The Economy Rack is a lower-profile, lighter option for drivers who want a clean base for a rooftop tent and minimal additional accessories. It uses the same mounting footprint as the Premium Rack and fits the same vehicles.

Tacoma Roof Racks

Premium Roof Rack For 2005-2023 Toyota Tacoma

Full-length extrusion rail system with T-slot channels for lights, RTT mounts, and awnings on 2nd and 3rd Gen Tacomas.

$849.99 Shop now →

Tacoma Roof Racks

Economy Roof Rack For 2005-2023 Toyota Tacoma

Clean low-profile rack available with or without a light bar cut-out for 2005-2023 Tacoma.

$749.99 Shop now →

4Runner Roof Racks

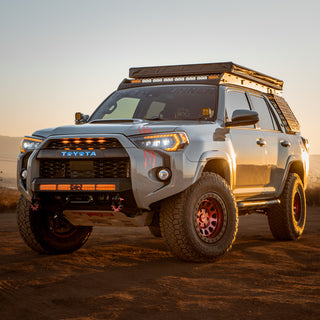

Premium Roof Rack For 2010-2024 Toyota 4Runner

Low-profile premium rack with full extrusion rail system for 5th Gen 4Runner gear mounting.

$999.99 Shop now →

How Do You Mount a Rooftop Tent on a Roof Rack?

A rooftop tent is the single heaviest item most roof racks carry, typically 100-150 lbs for hard shells and 70-100 lbs for soft tops. Mounting one correctly requires the right base hardware:

• Use the Cali Raised LED RTT Mounts, which slide into the rack's extrusion T-slot and accept most standard RTT base rails. Four mounting points spread the load across the full rack length.
• Torque the mount bolts to the manufacturer spec — under-torqued mounts shift, over-torqued mounts can crack the extrusion. Check the spec sheet included with the mounts.
• After the first night sleeping in the tent, re-check all four mounting bolts. Thermal cycling and the weight shift of entering and exiting the tent works fasteners loose the first time.

Roof Rack Accessories

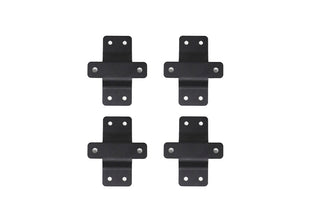

Roof Rack RTT Mounts

T-slot rooftop tent mounting hardware compatible with most major RTT brands.

$89.99 Shop now →

What Gear Can You Mount on a Roof Rack?

Roof racks handle a wide range of gear beyond rooftop tents:

• Light bars and ditch light wiring: The extrusion rail accepts CRL's own mounting brackets for 42-inch bars. Run the harness along the inside of the rail to keep wires protected and out of sight.
• Awnings: Side-mount awning arms bolt to the extrusion with T-nut hardware. A 270-degree awning on a Tacoma Premium Rack provides camp shade with no guy wires on three sides.
• Jerry cans and fuel: Use an aluminum jerry can holder bolted directly to the extrusion. Keep fuel cans at the rear of the rack, toward the vehicle's center of mass, not at the leading edge.
• Gear bags and soft goods: Soft gear bags with through-handles accept ratchet straps. Run the strap through the handle and hook directly to the extrusion or the rack's side rail.
• MOLLE panels: CRL makes MOLLE panels sized to fit their racks. These accept aftermarket MOLLE pouches, hydration packs, and organization accessories that bolt on without drilling.

Toyota-Specific Roof Rack Mounting Tips

A few notes that come up specifically on the Tacoma and 4Runner:

• 3rd Gen Tacoma roof mounting points: The factory mounting holes on 3rd Gen Tacomas align directly with the Premium Rack's base feet. No modification is needed. Confirm the gasket under each foot is seated flat before torquing, or water will find the path into the cab over time.
• 5th Gen 4Runner sunroof clearance: The 4Runner Premium Rack clears the factory sunroof with correct installation. Do not place heavy items directly above the sunroof panel. The rack distributes load to the side rails, not through the glass.
• Tundra Crew Max: The wider cab on the Tundra Crew Max means more rack real estate. The Premium Rack for the Tundra uses the same extrusion system and accommodates full-size RTTs without crowding the sides.

Frequently Asked Questions About Roof Rack Gear Mounting

How much weight can I put on a Toyota Tacoma roof rack?

The Cali Raised LED Premium and Economy Racks are rated for 150 lbs dynamic (while driving) and 300+ lbs static (while parked). Toyota's factory roof is rated for 165 lbs including the rack itself. For daily driving, keep your loaded rack under 150 lbs including the rack weight.

Do I need special hardware to mount a rooftop tent on a roof rack?

Yes. RTT Mounts from Cali Raised LED slide into the extrusion T-slot and provide four attachment points for tent base rails. Generic ratchet straps alone are not sufficient for a rooftop tent; vibration on rough roads will allow them to shift.

What is the best way to secure gear bags on a roof rack?

Run heavy-duty ratchet straps through the handles of any gear bag and hook directly to the rack extrusion or side rail. For bags without external handles, use a cargo net as a secondary restraint beneath the bag and ratchet over the top.

Can I add an awning to a Cali Raised LED roof rack?

Yes. The extrusion rail on Premium Racks accepts awning mount hardware on either side. Most 8-foot aftermarket awnings mount cleanly to Tacoma and 4Runner Premium Racks using T-nut hardware into the extrusion channel.

Does a loaded roof rack affect fuel economy?

Yes, any cargo on the roof increases aerodynamic drag and raises the center of gravity, which affects handling. A light bar or low-profile gear bag has minimal impact. A hard-shell RTT adds measurable drag at highway speeds — expect 1-3 mpg reduction depending on speed and load shape.
