LED Lighting , Off-Road Lighting

Roof Rack Lighting: The Best Lighting To Add To Your Roof Rack

Jul 28 2026 0 comments

The best lighting for your roof rack depends on how you drive: a 42-inch LED light bar delivers maximum flood coverage for trail driving, while pod lights and ditch lights add focused side illumination for technical terrain. This guide breaks down every option, how to mount it cleanly on your Toyota, and which products work best for the Tacoma, 4Runner, and Tundra.

What Types of Roof Rack Lighting Are There?

Three categories cover nearly every use case for Toyota truck owners:

Light bars: mounted on the leading edge of the rack, they project a wide beam forward. Single-row bars are slim and produce focused throw. Dual-row bars push more lumens. The amber/white dual-function bar lets you toggle between white for distance and amber for fog or dust.
LED pods: small 18-watt cubes that mount to rack cross-members or ditch brackets. Use them for side illumination, work lighting, or as accent lights on the corners of your rack.
Ditch lights: bracket-mounted pods that bolt to the A-pillar area on Tacomas and 4Runners. They light the periphery ahead of your front tires, which matters on tight switchbacks and canyon roads.

What Is the Best Light Bar for a Roof Rack?

A 42-inch single-row slim bar is the most popular choice for daily-driven Tacomas and 4Runners. It sits low on the rack, keeps wind buffeting manageable, and outputs 20,000 lumens — more than enough for forest roads, fire access routes, and most off-road situations. The white version suits general trail use. The amber version cuts through dust, rain, and smoke better than white, making it the go-to choice for desert runners and anyone driving in fire-prone areas.

The dual-function 43-inch bar earns its spot for anyone who wants both options in one unit. You get 28,000 lumens, a wiring harness that lets you run amber alone, white alone, or both at once, and the ability to dial the exact light quality you need on the fly.

LED Light Bars

42" Slim Single Row LED Bar

20,000-lumen slim profile bar built for clean roof rack mounting on any Toyota.

$359.99 Shop now →

43 inch Amber White Dual Function LED Bar

LED Light Bars

43" Amber/White Dual Function LED Bar

28,000 lumens with switchable amber and white modes for any condition.

$399.99 Shop now →

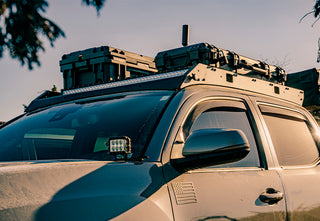

How Do You Mount a Light Bar on a Roof Rack?

Mounting hardware is the detail most people overlook until they are staring at the rack trying to figure out how to attach their new bar. The process on a Cali Raised LED Premium Roof Rack takes under 30 minutes:

Decide on bar position. The front-most cross-member gives maximum forward throw. Center or rear placement works for camp lighting or fill coverage.
Drop the T-nuts into the extrusion slot before positioning your brackets. Sliding them in after the bracket is already placed wastes time.
Set the bar, snug the bolts finger-tight, then adjust aim before torquing to spec.
Run the wiring harness along the rack extrusion and down the A-pillar channel. Use zip ties every 12 inches to prevent vibration rattle.

For Prinsu and Front Runner racks, use the dedicated laser-cut brackets from Cali Raised LED. They hold the bar in the correct position relative to the rack geometry and resist the vibration that generic clamps allow over time.

For a complete guide to weight limits, RTT setup, and gear organization on your roof rack, see our Roof Rack Mounting guide.

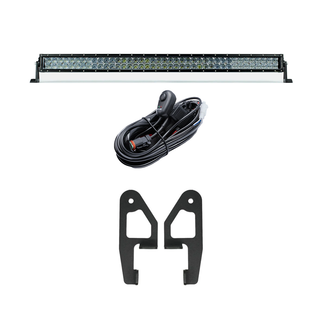

42 inch LED Mounts for Premium Roof Rack

Mounting Brackets

42" LED Mounts for Premium Roof Rack

USA-made laser-cut brackets that lock your 42-inch bar securely to CRL Premium Racks.

$59.99 Shop now →

Should You Add Ditch Lights or Pods to Your Roof Rack Setup?

Ditch lights and pods serve a different purpose than the main light bar. Where a roof-mounted bar throws light far down the road, ditch lights cast illumination to the sides and into the near-field at an angle. On tight trails with trees, rock faces, or drop-offs immediately adjacent to your line, that near-field coverage is the difference between reading the terrain and guessing at it.

For Tacoma owners, factory A-pillar real estate accepts dedicated ditch light brackets that keep pods low-profile and aimed correctly. The complete kit includes brackets, pods, wiring harness, and a rocker switch. This is one of the first lighting upgrades worth making even before a roof-mounted bar, because the coverage gap it fills is consistent and noticeable on every night drive.

Ditch Light Kits

Low Profile Ditch Light Brackets Kit For 2016-2023 Toyota Tacoma

Complete kit with 18W LED pods, brackets, and switch for peripheral trail illumination.

$169.99 Shop now →

How Do You Wire a Roof Rack Light Bar?

Every Cali Raised LED light bar kit ships with a plug-and-play wiring harness. The harness runs from the battery through a relay and fuse to a cab-mounted rocker switch. Wiring takes roughly 45-60 minutes on a first install:

Route the positive lead from the battery to the relay, keeping it away from heat sources and moving parts.
Ground the relay to a clean, paint-free chassis bolt near the battery.
Fish the switch wire through the firewall grommet. Most Tacomas have an unused grommet on the driver side. Use a wire fish and patience.
Mount the rocker switch in the cab. Blue-backlit switches sit flush in the dashboard cubby on 3rd Gen Tacomas and in the lower dash panel area on 5th Gen 4Runners.

For the dual-function bar, the harness includes two circuits: one for white and one for amber, each with its own switch or a dual-function rocker that handles both from a single panel position.

What Is the Best Complete Roof Rack Lighting Kit for a Toyota?

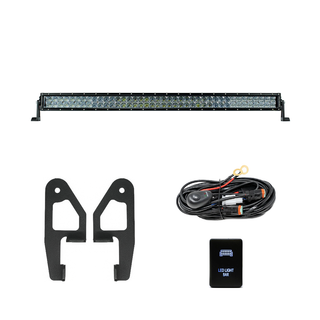

If you want the complete solution in one purchase, the Economy Roof Rack Lighting Kit combines the light bar, mounting brackets, and switch into a single box sized for the Cali Raised LED Economy Rack on Tacomas, 4Runners, and Tundras. It removes the guesswork about fitment and compatibility, and it gets you from unboxing to lit up faster than sourcing each component separately.

Roof Rack Lighting Kit

Economy Roof Rack Lighting Kit For Tacoma, 4Runner, Tundra

Complete bar, mounts, and switch kit sized for CRL Economy Racks on all major Toyota platforms.

$399.99 Shop now →

If you drive on the highway regularly with a loaded rack or light bar, pairing your setup with an adjustable wind fairing reduces drag, cuts cabin noise, and improves fuel economy at highway speeds.

Toyota-Specific Roof Rack Lighting Tips

A few details that matter for Tacoma and 4Runner owners specifically:

3rd Gen Tacoma (2016-2023): The A-pillar trim sits close to the factory HVAC and electrical runs. Plan your wire routing before pulling any panels. The stock unlit rocker switch blanks in the dashboard cubby accept standard aftermarket switches with no modification.
5th Gen 4Runner (2010-2024): The factory overhead console runs directly beneath where a roof bar wire exits the headliner. Leave 18 inches of slack before the wire enters the cab so the sunroof and headliner can flex without stressing the connection.
2nd Gen Tacoma (2005-2015): The A-pillar area is simpler to work with. Ditch light brackets bolt to existing holes with no drilling required on most model years.
Tundra: The wider cab means more wire to run, but the larger firewall offers several clean entry points. Route high and use convolute tubing over any section near the exhaust.

Frequently Asked Questions About Roof Rack Lighting

What size light bar fits a Toyota Tacoma roof rack?

A 42-inch bar fits cleanly on the Cali Raised LED Premium and Economy racks for the Tacoma. The bar spans the main mounting rail with room for brackets on each end and does not overhang the vehicle sides at the mirror line.

Do I need a relay and fuse for a roof rack light bar?

Yes. All Cali Raised LED light bar kits include a pre-wired relay and fuse in the harness. The relay protects your factory wiring from drawing high current through the switch circuit, and the fuse protects the harness from shorts.

What is the difference between white and amber LED bars?

White LED bars produce a broader color spectrum that illuminates terrain accurately in clear conditions. Amber bars output a warmer light that scatters less in dust, fog, and rain, which is why desert and forest drivers favor amber for serious off-road use.

Can I run a roof light bar on a daily driver?

Yes, as long as you aim the bar below the horizon line of oncoming traffic. A properly aimed 42-inch bar mounted on a roof rack should not blind other drivers. Check your aim with the vehicle on level ground, verified against a wall at 25 feet.

Do LED pod lights work as well as a light bar?

Each 3x2 18-watt pod produces roughly 1,800 lumens, which is less throw per unit than a full bar. However, pods give flexible placement and let you illuminate specific zones like trail edges, camp sites, or work areas that a forward-facing bar cannot cover.
