Rock Slider Engineering Specs Explained (DOM, Angle & Kickout Guide)

When choosing rock sliders for a Toyota Tacoma, 4Runner, or Tundra, most off-road enthusiasts compare products based on appearance or price. However, the real difference between rock sliders comes down to engineering design, materials, and structural strength.

Understanding rock slider specifications helps answer common questions like:

• What tubing should rock sliders use?

• What is the difference between DOM vs HREW tubing?

• Should you choose 0° or angled rock sliders?

• What does a kickout actually do?

This guide breaks down the engineering behind Cali Raised rock sliders, including tubing materials, mounting hardware, and structural components that allow sliders to support the weight of your vehicle during off-road impacts.

If you're looking for rock sliders specifically designed for Toyota trucks, explore our Tacoma Rock Sliders, 4Runner Rock Sliders, and Tundra Rock Sliders built for off-road protection and daily usability.

Explore the full Cali Raised rock slider lineup here:
https://caliraisedled.com/collections/rock-sliders

Rock Slider Engineering Quick Reference

Rock sliders are frame-mounted steel bars designed to protect a vehicle’s rocker panels from rocks, ledges, and trail obstacles.

Key engineering elements that determine rock slider strength include:

• DOM steel tubing for durability and impact resistance

• 1.75-inch tubing diameter for structural strength

• .120 wall thickness to handle heavy trail impacts

• Frame-mounted brackets that distribute vehicle weight

• High-grade mounting hardware

When properly engineered, rock sliders can support the full weight of the vehicle and protect critical body panels during off-road obstacles.

What Are Rock Sliders?

Rock sliders are steel protective bars mounted directly to the frame of an off-road vehicle.

Unlike factory side steps or nerf bars, rock sliders are designed to:

• Protect the rocker panels

• Support the vehicle’s weight

• Act as a pivot point when sliding across rocks

• Deflect obstacles away from the body

Because they mount directly to the vehicle frame, rock sliders provide structural protection rather than cosmetic protection.

Rock Slider Strength Overview

Cali Raised rock sliders are engineered to support the full weight of the vehicle when contacting rocks or trail obstacles.

Frame-mounted brackets distribute impact forces across multiple mounting legs, protecting important body components such as:

• rocker panels

• doors

• quarter panels

• body mounts

For serious off-road use, DOM steel frame-mounted sliders provide the highest level of protection.

Cali Raised Rock Slider Engineering Specifications

Below is a general overview of the engineering specifications used in Cali Raised rock sliders.



These specifications help balance strength, weight, and off-road protection.





DOM vs HREW Rock Sliders

One of the most common questions when comparing rock sliders is:

Are DOM rock sliders stronger than HREW sliders?

DOM Tubing (Drawn Over Mandrel)

DOM steel tubing is widely used in off-road armor fabrication because of its strength and durability.

Benefits include:

• Higher tensile strength

• Consistent wall thickness

• Greater resistance to bending

• Better durability during heavy impacts

Cali Raised rock sliders use 1.75-inch DOM tubing with .120 wall thickness to provide the strength needed for off-road environments.

HREW Tubing (Hot Rolled Electric Welded)

HREW tubing is sometimes used in lower-cost steel fabrication.

Advantages include:

• Lower manufacturing cost

• Suitable for lighter trail use

However, compared to DOM tubing, HREW typically offers less resistance to severe off-road impacts.

0° vs 20° Rock Slider Angle

Rock sliders are commonly offered in two angle configurations.

0° Rock Sliders (Flat)

Flat sliders run parallel to the ground.

Advantages include:

• Works as a usable side step

• Easier entry into lifted vehicles

• Ideal for daily-driven trucks

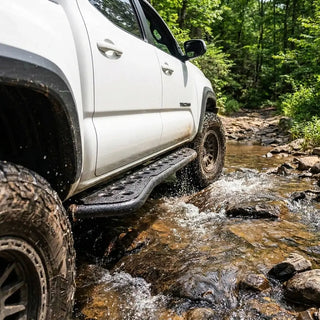

Cali Raised Step Edition sliders use a flat 0° design with optional step plates.

20° Angled Rock Sliders

Angled sliders tilt upward toward the vehicle body.

Advantages include:

• Increased ground clearance

• Better obstacle deflection

• Reduced chance of getting hung up on rocks

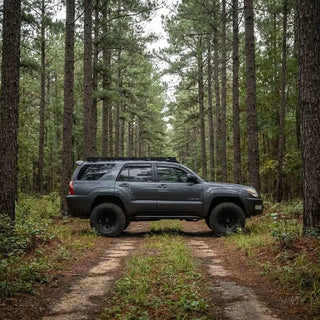

Cali Raised Trail Edition sliders use a 20° angle designed for aggressive off-road terrain.

What Is a Kickout on Rock Sliders?

A kickout is the outward bend located near the rear of a rock slider.

Purpose of a Kickout

Kickouts help:

• Deflect rocks away from the rear tire

• Protect the rear quarter panel

• Provide a pivot point during rock contact

When the vehicle contacts an obstacle, the kickout pushes the vehicle away from the obstacle rather than allowing body damage.





Vehicle-Specific Rock Slider Specifications

While Cali Raised rock sliders follow the same engineering principles across platforms, mounting hardware and weight vary depending on the vehicle.

Tacoma Rock Slider Specs

Tacoma sliders use five mounting legs to distribute vehicle weight across multiple frame contact points.

4Runner Rock Slider Specs

These sliders maintain the same structural strength while being slightly lighter due to vehicle size.

Tundra Rock Slider Specs

Because the Toyota Tundra is a larger truck, these sliders use heavier steel construction to maintain durability and support.

Rock Slider Engineering Glossary

DOM Tubing
Drawn Over Mandrel steel tubing known for strength and consistent wall thickness.

HREW Tubing
Hot Rolled Electric Welded tubing often used in lower-cost steel fabrication.

Slider Angle
The upward tilt of a rock slider relative to the ground.

Kickout
An outward bend in the rear of a rock slider designed to deflect rocks.

Gusset
A reinforcement plate used to strengthen mounting brackets.

Frame Leg
The bracket connecting the rock slider to the vehicle frame.

Direct Answers About Rock Sliders

What are rock sliders?
Rock sliders are frame-mounted steel bars designed to protect a vehicle’s rocker panels from rocks and off-road obstacles.

Are rock sliders strong enough to support vehicle weight?
Yes. Properly engineered rock sliders mounted to the frame can support the full weight of the vehicle.

What angle rock sliders are best?
0° sliders work best when you want a usable step, while 20° sliders provide better ground clearance for off-road driving.

What does a kickout do on rock sliders?
A kickout helps push the vehicle away from rocks, protecting the rear tire and quarter panel.



Final Thoughts

Rock sliders are one of the most important upgrades for protecting your vehicle during off-road adventures.

A properly engineered rock slider should include:

• DOM steel tubing

• Adequate wall thickness

• Frame-mounted brackets

• High-grade installation hardware

Cali Raised rock sliders are designed to support the weight of the vehicle while protecting rocker panels during off-road obstacles, making them a popular upgrade for Tacoma, 4Runner, and Tundra builds.
