Why Cali Raised LED Front Skid Plates Are the Best for the Tacoma and 4Runner

Cali Raised LED front skid plates for the Tacoma and 4Runner are the best aftermarket option because they use DOM steel or 6061 aluminum, bolt on using factory mounting points with zero drilling, and serve as the anchor for a complete modular skid system. No other skid plate on the market fits as cleanly or extends as completely across the underside.

What Makes a Front Skid Plate Worth Buying?

The front skid plate is the most critical piece of underbody armor on any Toyota truck or SUV. It covers the oil pan and front differential area, the two components most exposed when you nose over a ledge or drag across a rock. Factory TRD skid plates cover part of the transfer case area, but leave the front end open. An aftermarket front skid fills that gap and also serves as the structural anchor for everything that comes behind it: the transmission skid, transfer case skid, and fuel tank skid all mount to the rear of the front skid plate on the Cali Raised LED system.

A good front skid plate does three things: covers the right components, mounts without permanent modification, and provides a clean mating surface for additional skids. The CRL design does all three.

What Are Cali Raised LED Front Skid Plates Made From?

Cali Raised LED front skid plates are available in two materials: DOM (Drawn Over Mandrel) steel and 6061 aluminum. DOM steel is stronger than standard hot-rolled steel because the manufacturing process produces a more consistent wall thickness and removes internal stress. It takes harder hits before deforming and is the right choice for rock crawlers who routinely drag skids across granite or basalt.

The 6061 aluminum option is a high-strength alloy that provides roughly two-thirds the strength of DOM steel at one-third the weight. For overlanders and trail drivers who don't crawl extreme rock, aluminum offers adequate protection while cutting front-end unsprung weight. It also resists corrosion naturally, which matters in coastal or winter climates.

Both materials are CNC cut and formed to exact tolerances. The fit against the frame is tight, with no gap-filling needed and no flex when mounted correctly. That precision fit is what separates a purpose-built skid from a universal unit bent to approximate shape.

For a detailed side-by-side comparison of steel vs. aluminum performance, weight, and corrosion trade-offs, read our steel vs. aluminum skid plate guide.

How Do the Skid Plates Mount, and Do I Need to Drill?

No drilling required. The Cali Raised LED front skid plates for both the Tacoma and 4Runner bolt directly to existing factory frame holes using the hardware that comes with the kit. The mounting points are engineered to the specific frame geometry of each platform. On the Tacoma, that means the 2005-2015 and 2016-2023 variants use slightly different hardware, since Toyota updated the frame mounting layout between generations.

Installation takes one to two hours with basic hand tools. The skid drops up into position, holes align with the factory points, and bolts cinch down. No welding, no cutting, no lifted joints. If you sell the truck later, the entire system removes in under an hour and leaves no visible modification.

Skid Plates

Front Skid Plate For 2005-2023 Toyota Tacoma

DOM steel or 6061 aluminum, bolt-on installation using factory mounting points, full engine and oil pan coverage for 2005-2023 Tacoma.

$439.99 Shop now →

Skid Plates

Front Skid Plate For 2010-2024 4Runner

DOM steel or 6061 aluminum, bolt-on front skid for the 5th gen 4Runner covering the oil pan and differential with zero drilling.

$439.99 Shop now →

How Do CRL Skid Plates Compare to TRD Factory Skids?

Toyota's TRD skid plates cover the transfer case area and offer basic protection for moderate off-road use. They are a step up from the factory plastic belly pan, but they don't cover the front of the drivetrain, they use lighter-gauge material, and they're not designed to interface with a full skid system. The CRL front skid covers more area, uses heavier material, and creates a true modular base for additional coverage behind it.

The TRD skid is fine for light trail use on a bone stock truck. Once you start adding a lift and running moderate to aggressive trails, a purpose-built aftermarket front skid is the correct choice. The CRL design also has a cleaner appearance when viewed from below because it's flat-formed to the frame geometry rather than the generic shape of the factory unit.

Why the System Approach Matters: Front Skid Plus Transmission Skid

The front skid plate alone gives you front-of-drivetrain coverage, but the real protection value comes from building the system. The Cali Raised LED transmission skid plate for the Tacoma or 4Runner mounts to the rear of the front skid, creating a continuous floor of armor from the front differential back through the transmission. The transfer case skid and fuel tank skid extend that coverage further back, leaving no gap across the entire center of the vehicle.

That continuous coverage is what prevents the most common trail damage scenario: high-centering on a rock that catches the gap between two separate skid plates. When the skids are designed to mate flush, that gap disappears.

Skid Plates

Transmission Skid Plate For 2005-2023 Toyota Tacoma

Requires the front skid plate, extends armor coverage through the transmission for continuous underbody protection.

$269.99 Shop now →

For owners who want full system coverage in one order, the Complete Skid Plate Collection bundles the front, transmission, transfer case, and fuel tank skids for the Tacoma or 4Runner at a savings compared to buying each skid individually. It ships as a complete kit and covers the entire underside in one installation session.

Skid Plates

Complete Skid Plate Collection For 2005-2023 Toyota Tacoma

Full system bundle: front, transmission, transfer case, and fuel tank skids in steel or aluminum for complete Tacoma underbody coverage.

$1,525.99 Shop now →

What Coverage Does the Front Skid Plate Actually Provide?

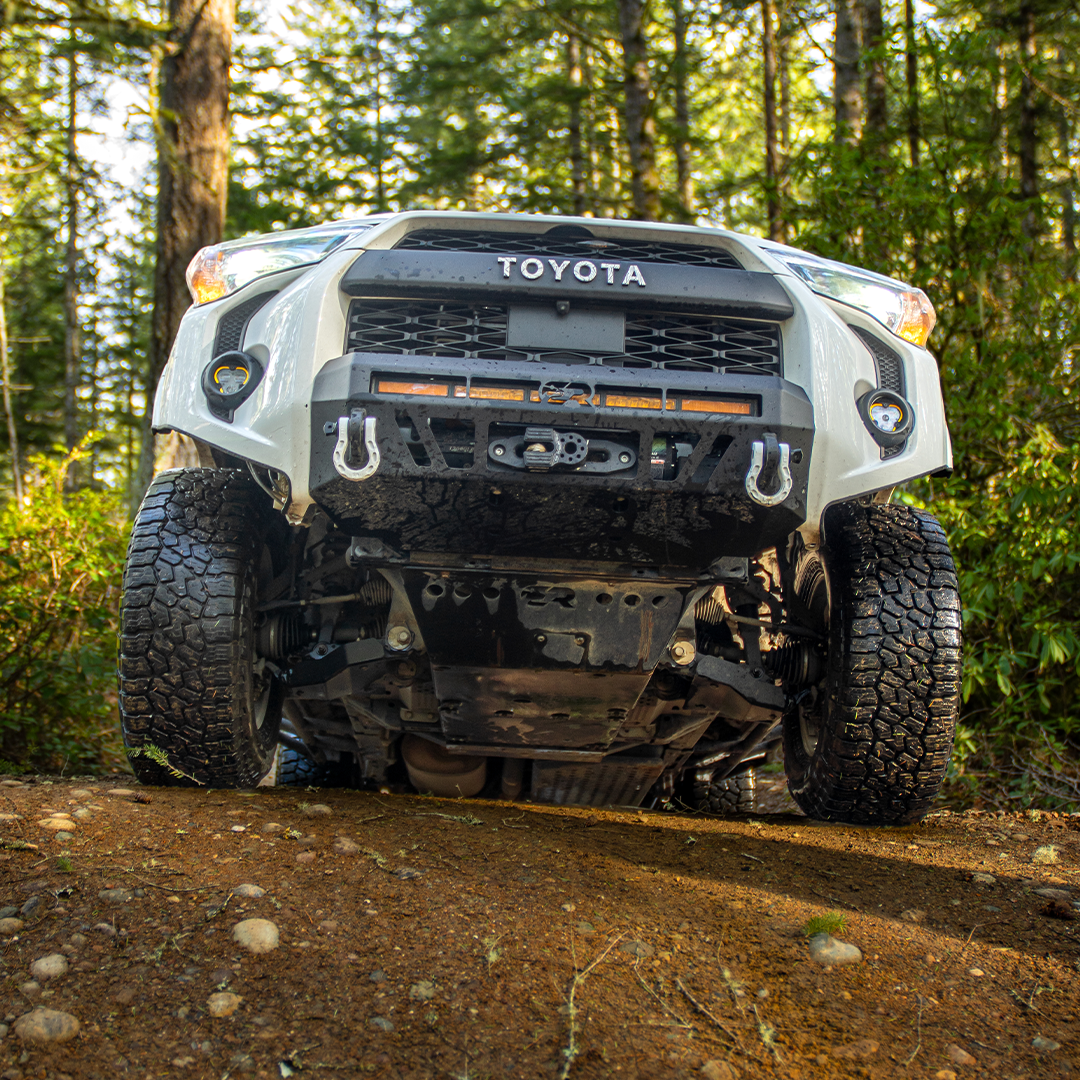

The front skid plate covers the oil pan, the front differential housing, and the front cross-member. On the Tacoma, it spans from just behind the front bumper support rearward to the transmission skid mating point. On the 4Runner, the coverage is similar, protecting the most exposed underside section that contacts terrain first when you nose down into a gully or over a ledge.

Thickness on both the steel and aluminum options is designed to handle repeated glancing blows and single hard strikes without failure. The goal isn't to prevent all deformation on extreme hits, it's to prevent penetration that would damage the components above. The skid takes the hit so your oil pan doesn't.

If you're still weighing whether skid plates are worth it for your build, our guide on why every Tacoma and 4Runner needs skid plates makes the full case before your next trail run.

Frequently Asked Questions

Does the front skid plate work with a suspension lift?

Yes. The skid mounts to frame points that don't change with suspension lifts. A lift actually improves the approach angle of the skid plate on the trail, giving better clearance over obstacles.

Do I need to remove any factory parts to install the front skid?

The factory plastic belly pan should be removed before installing the CRL skid plate. The factory part is not compatible with the aftermarket skid in the same space.

What is the difference between the Tacoma front skid and the 4Runner front skid?

They are separate products engineered for each platform's frame geometry and oil pan clearance. They are not interchangeable. Order by your specific vehicle.

Is the front skid plate compatible with aftermarket front bumpers?

In most cases yes, but compatibility depends on the specific bumper. Bumpers that use the factory frame mounting points may conflict with the front skid. Check with the bumper manufacturer before ordering if you're running an aftermarket front bumper.

Can I install the complete skid system myself?

Yes. All four skids in the complete system are bolt-on installations requiring standard hand tools. Most owners complete the full system install in two to four hours with the truck on a lift or ramps.

Does the front skid require the transmission skid to function?

No. The front skid is a standalone piece that protects the front of the drivetrain independently. The transmission skid mounts to the back of the front skid when you want to extend coverage rearward, but the front skid works fully on its own.

Written by The Cali Raised LED Team
