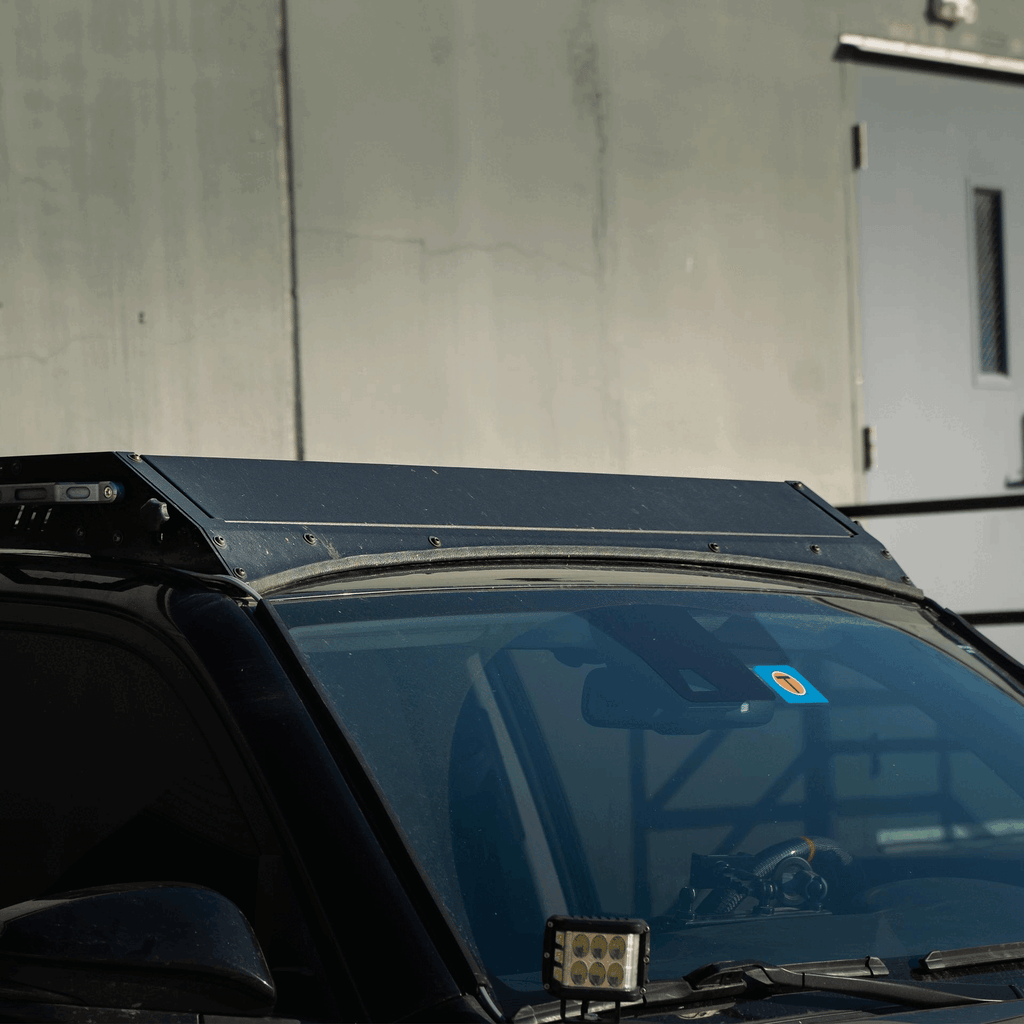

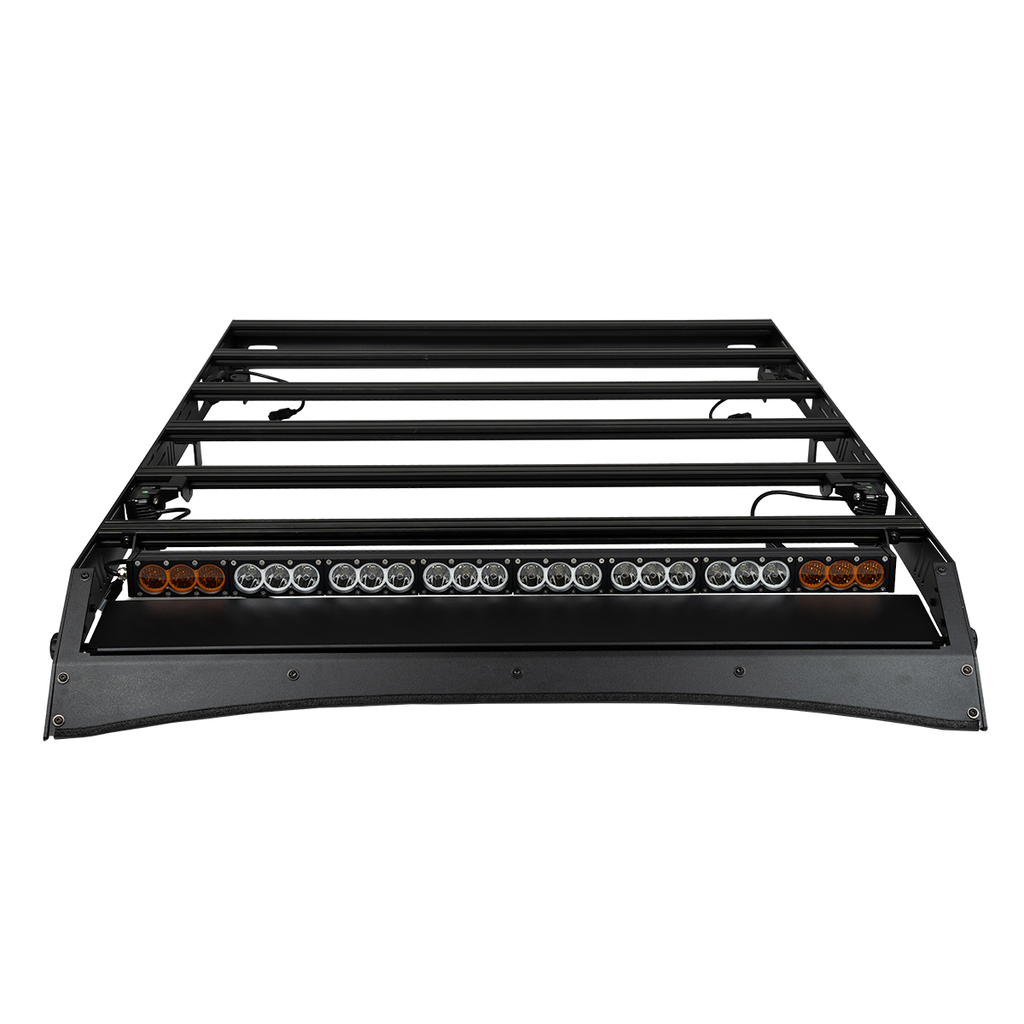

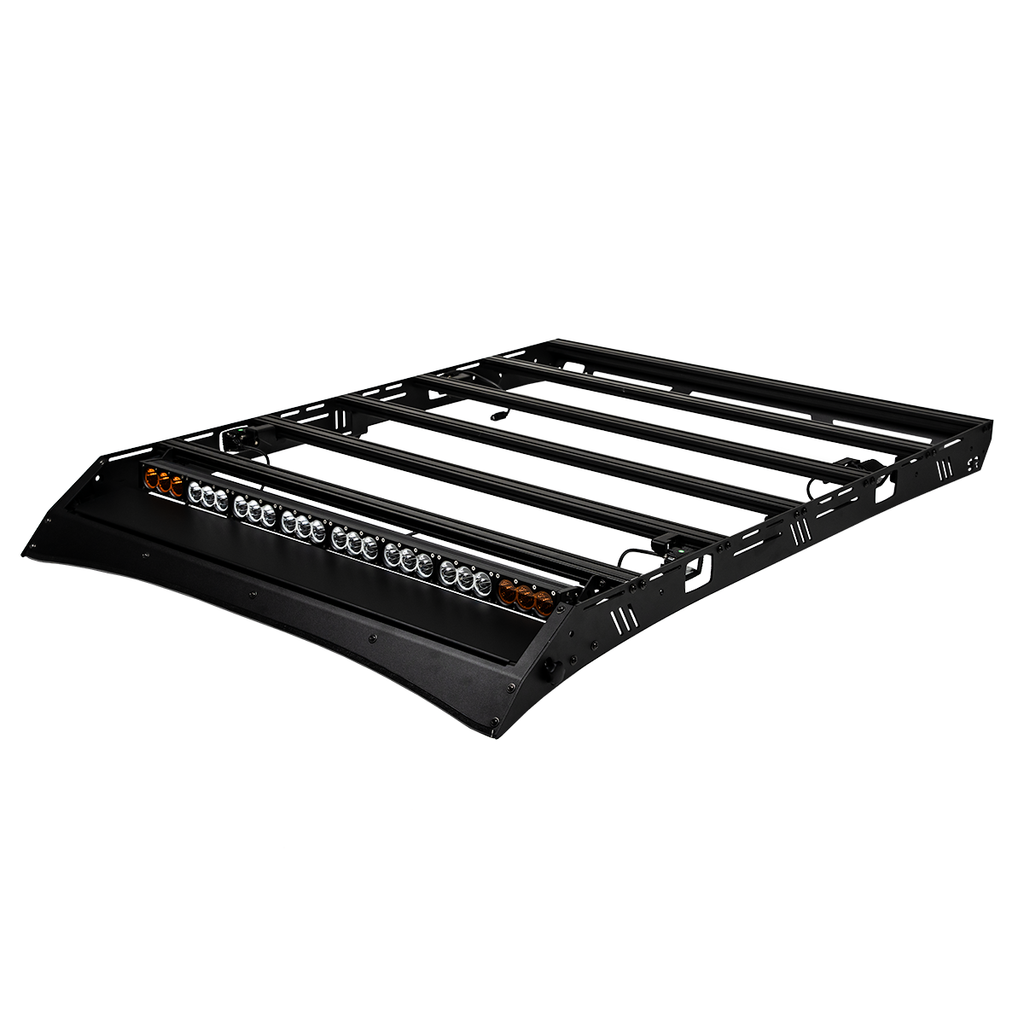

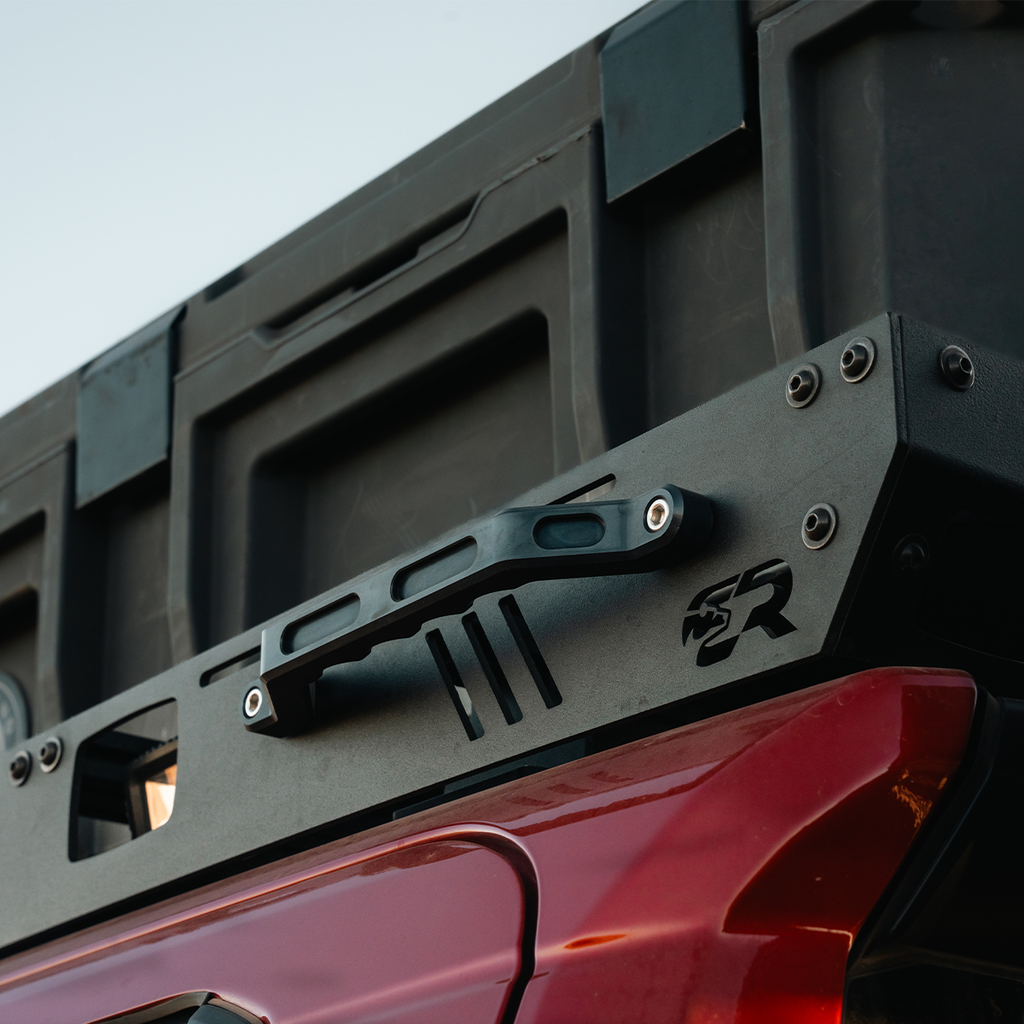

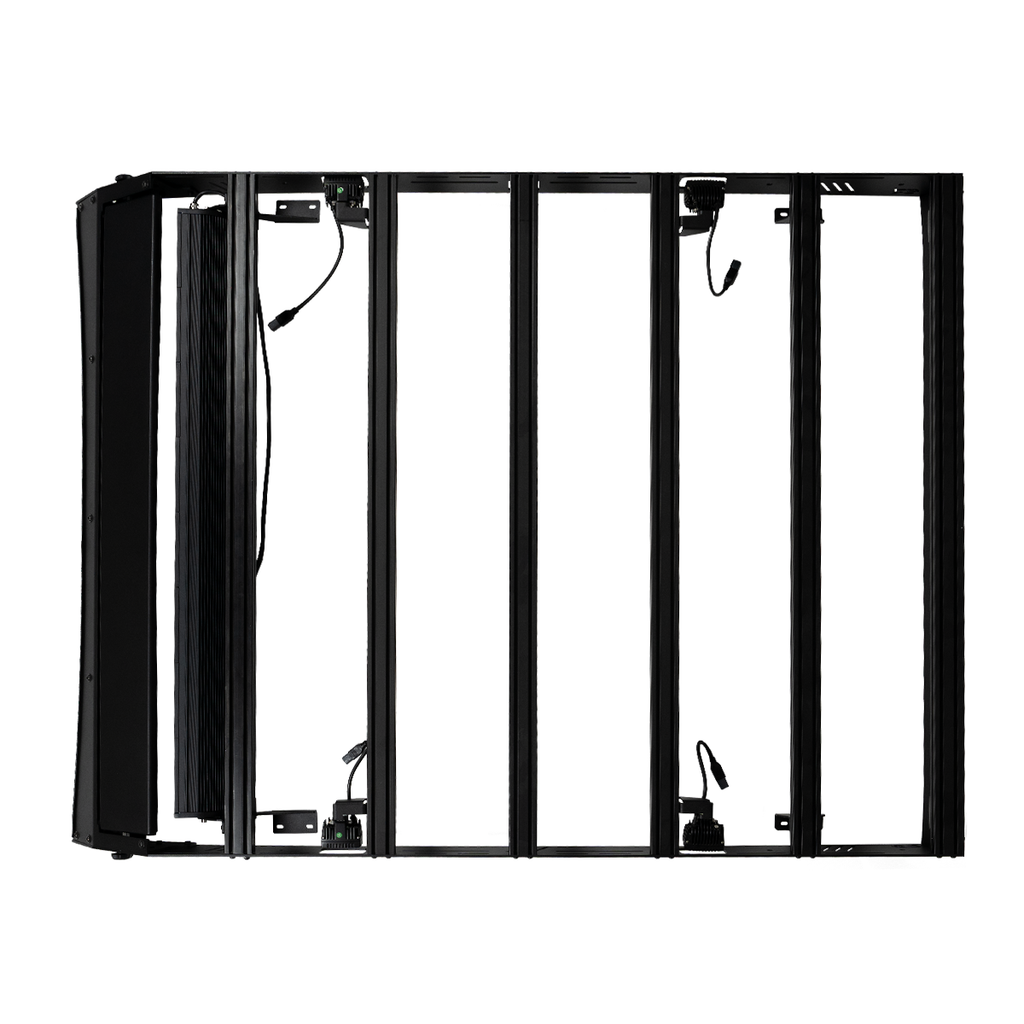

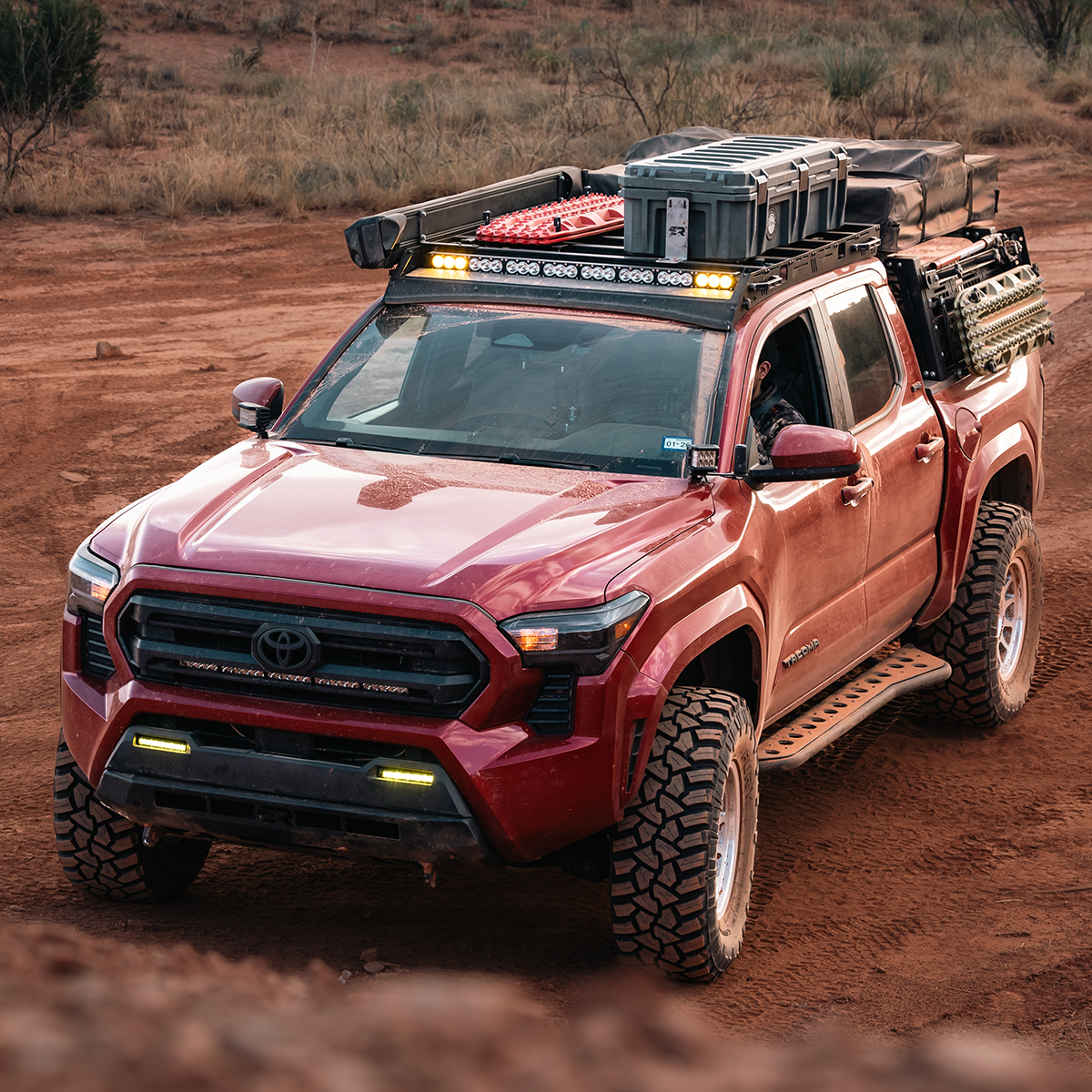

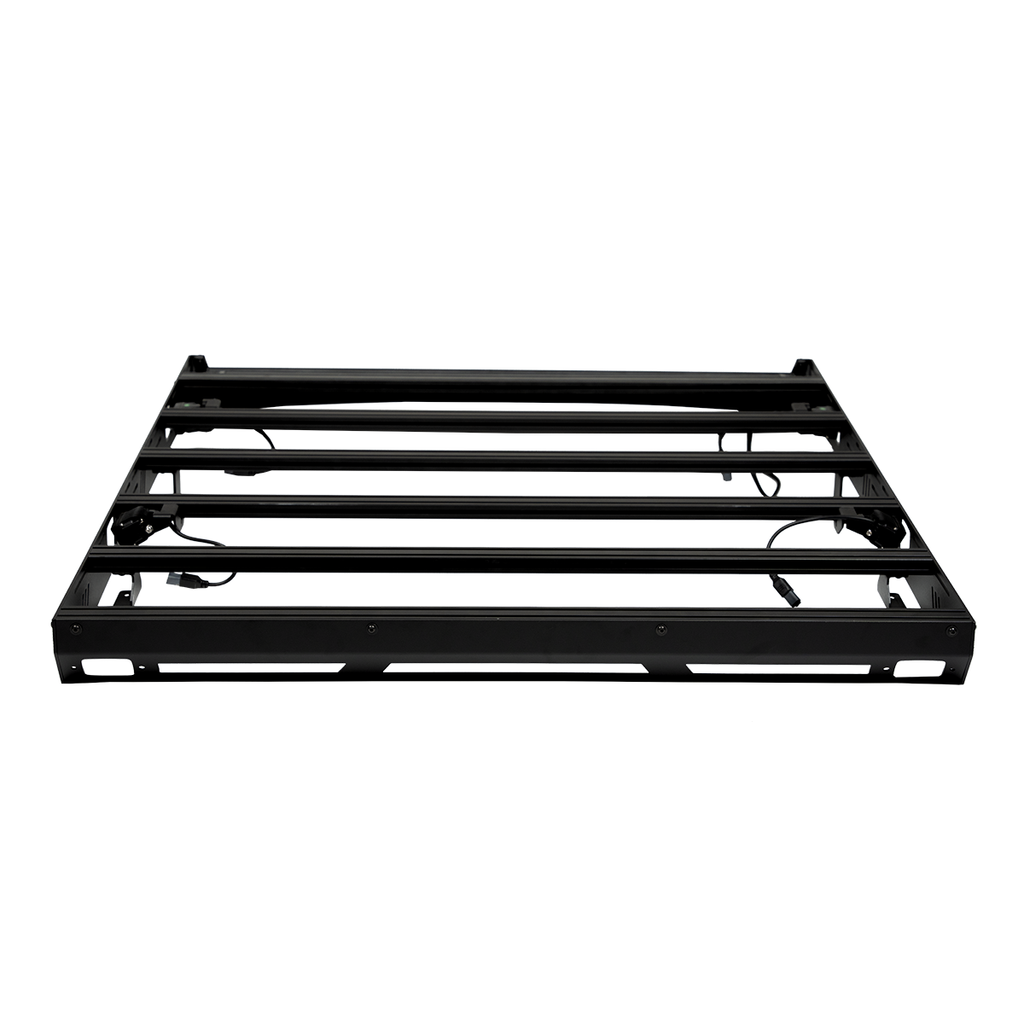

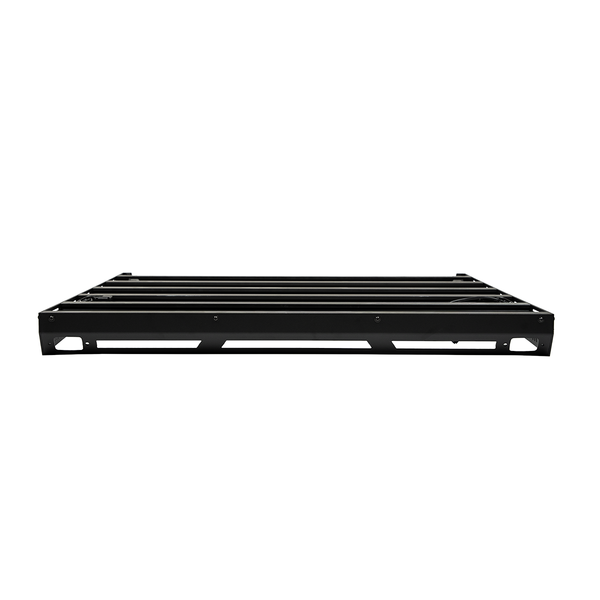

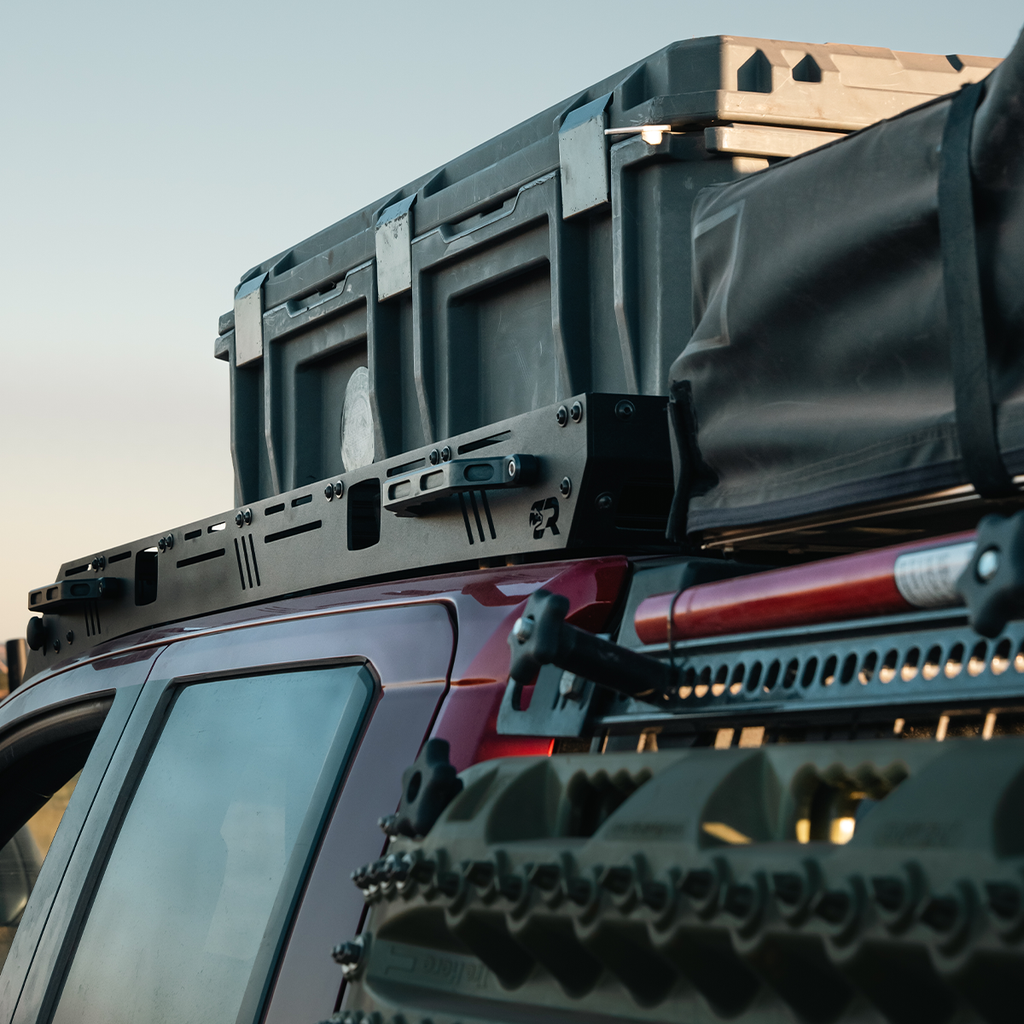

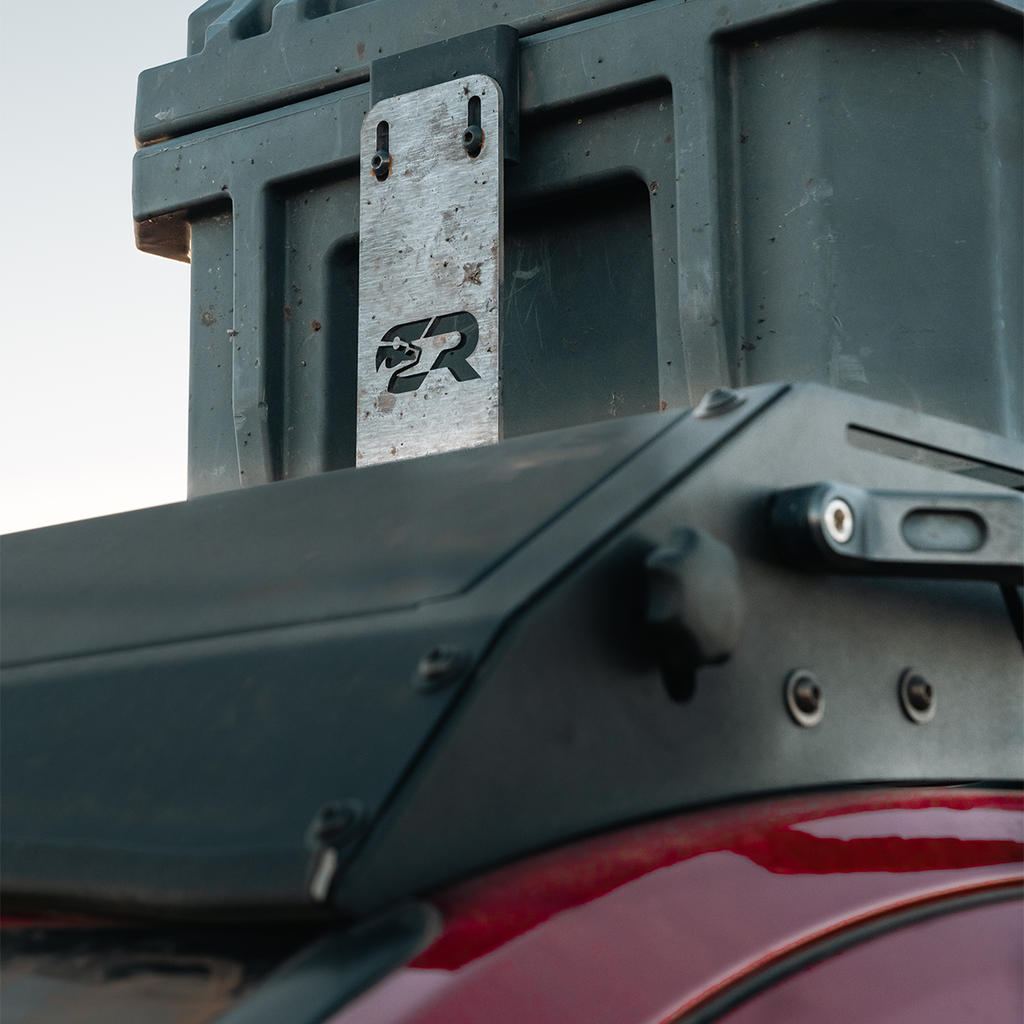

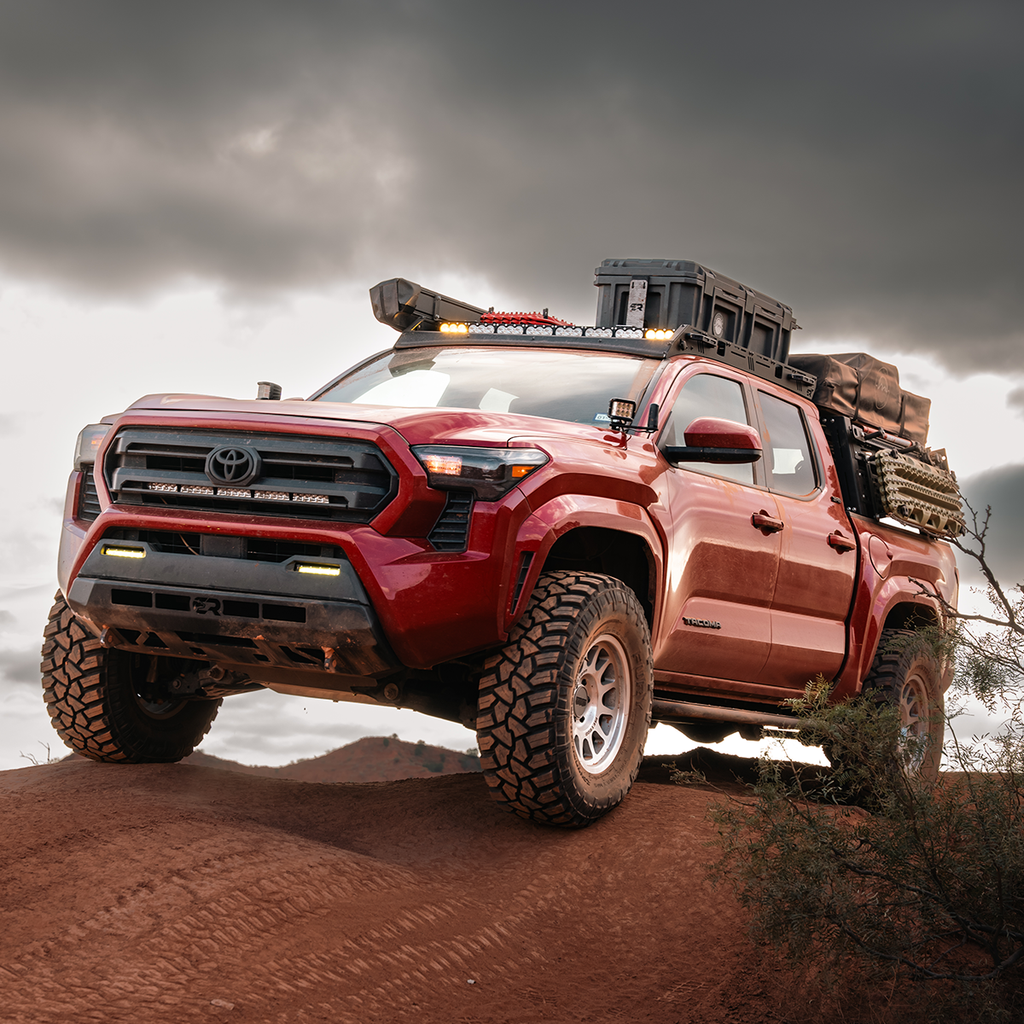

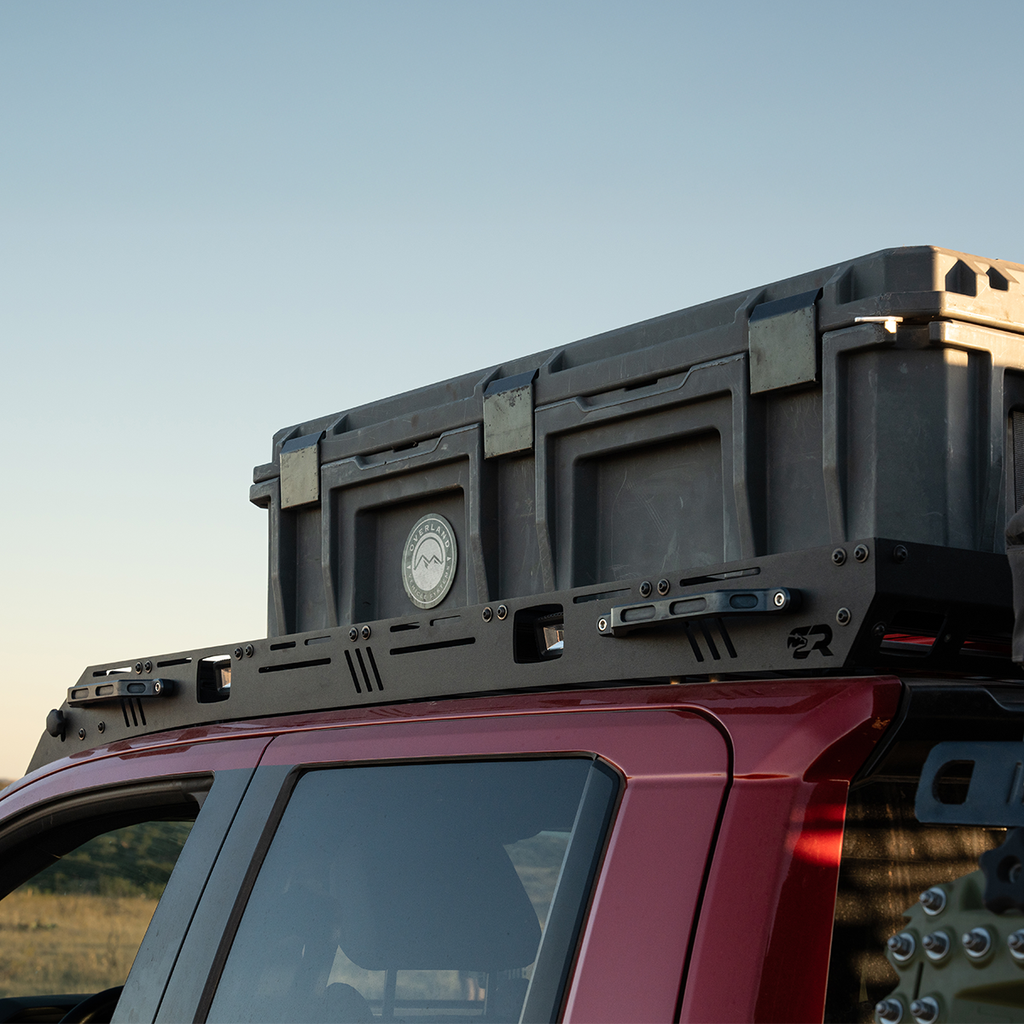

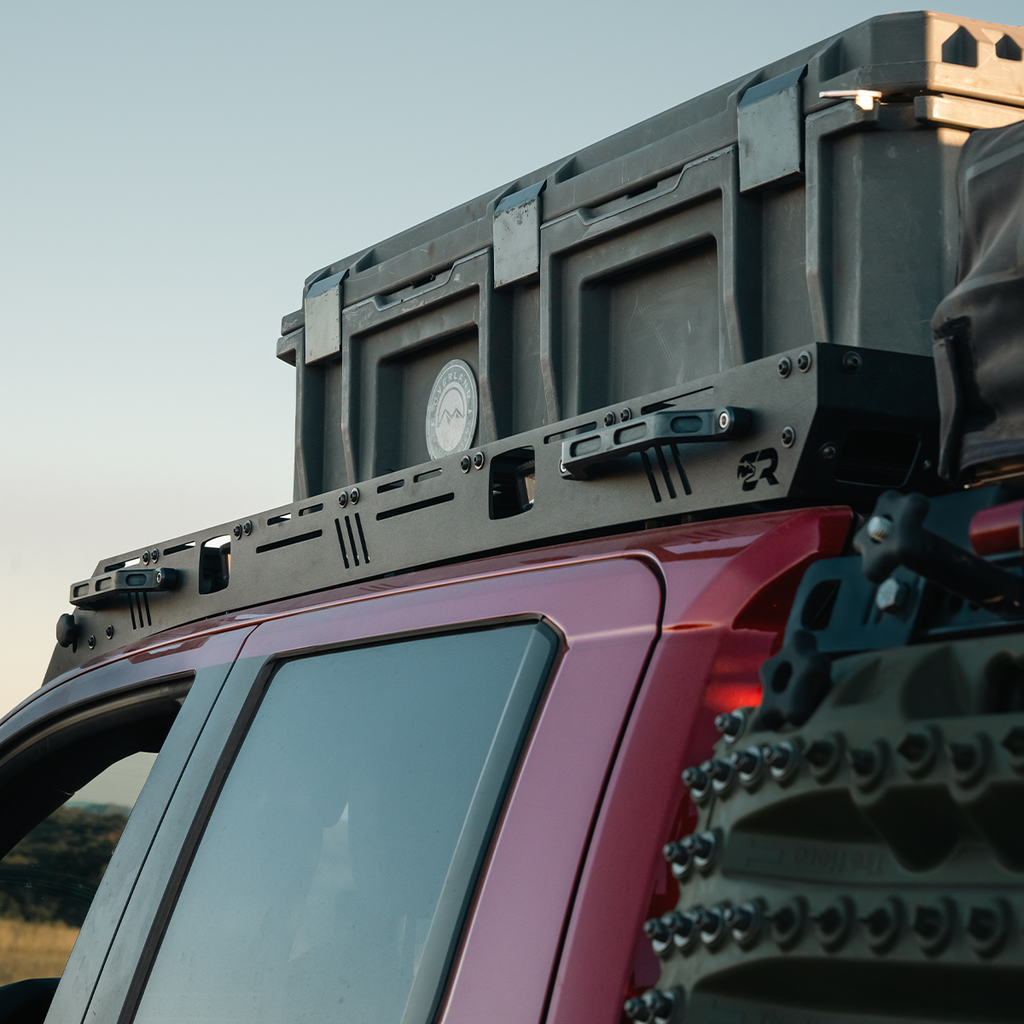

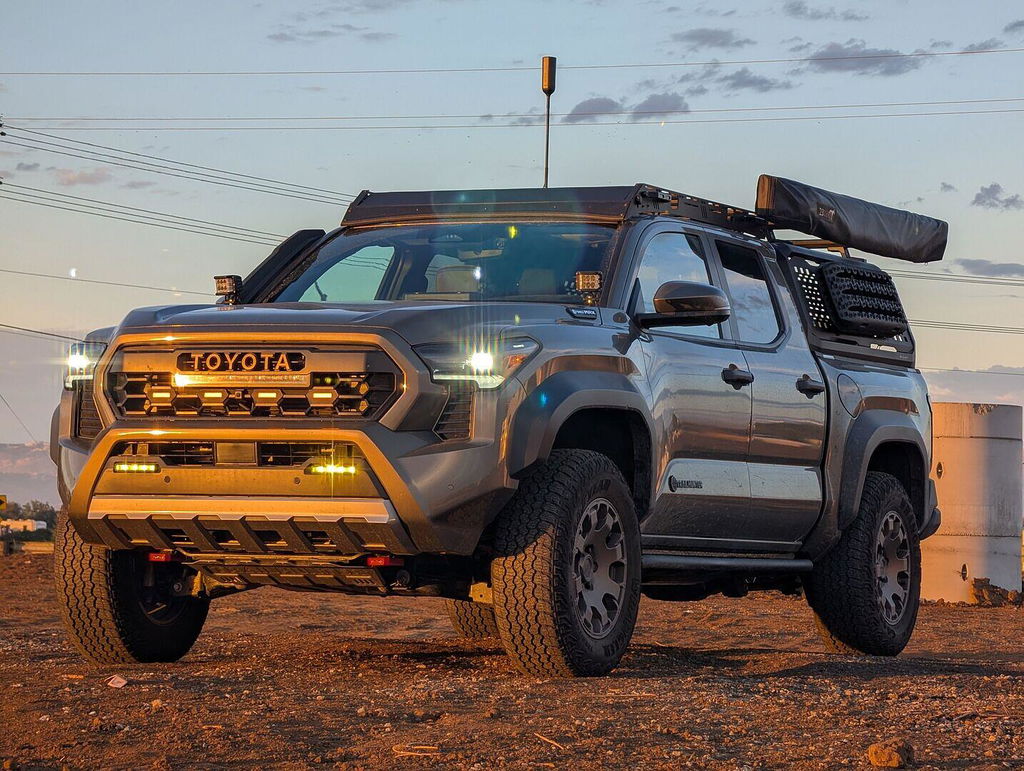

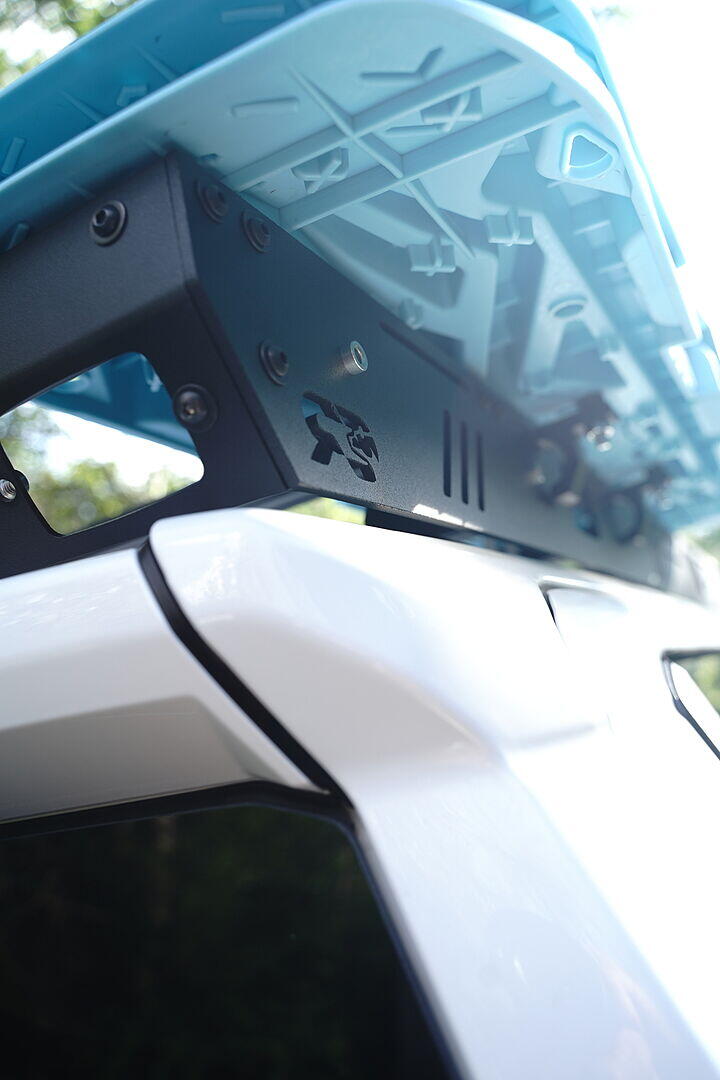

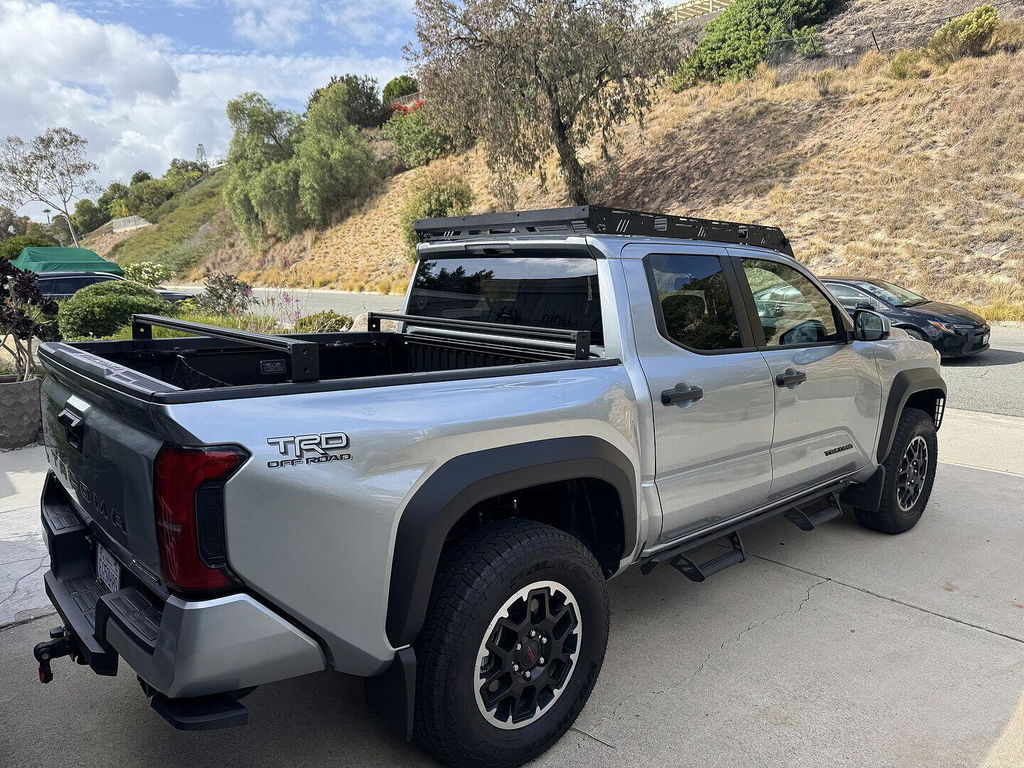

Premium Roof Rack For 2024+ Toyota Tacoma

1. Q: What vehicles does this roof rack fit?
   A: This premium roof rack is custom-designed for the 2024+ Toyota Tacoma. Fitment on other vehicles is not guaranteed unless explicitly stated. Other vehicle-specific versions are available for Toyota 4Runner and Tundra models.

2. Q: Is this rack truly bolt-on?
   A: Yes. The rack features a 100% bolt-on installation — no drilling, cutting, or major modifications required. All necessary hardware is included. For added waterproofing, we recommend applying silicone during install (not included).

3. Q: Does the rack add height to my vehicle?
   A: Yes. This rack adds approximately 5 inches to your vehicle’s overall height. Be sure to account for the added clearance when entering garages or parking under low overhangs.

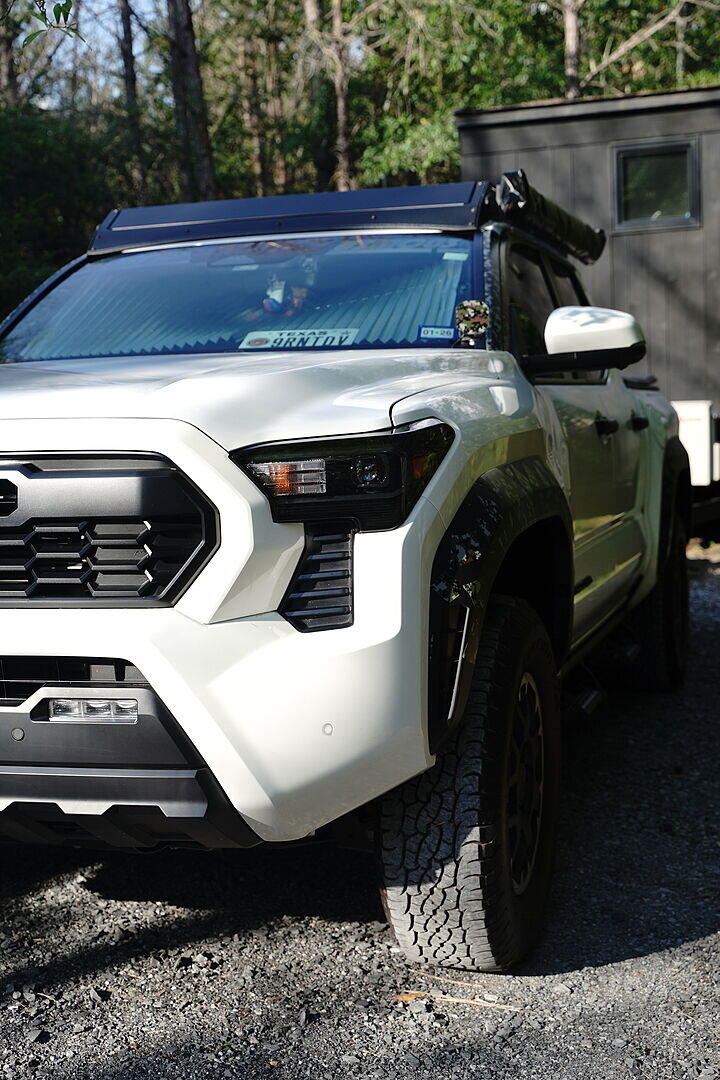

4. Q: What is the Adjustable LED Wind Deflector (ALWD)?

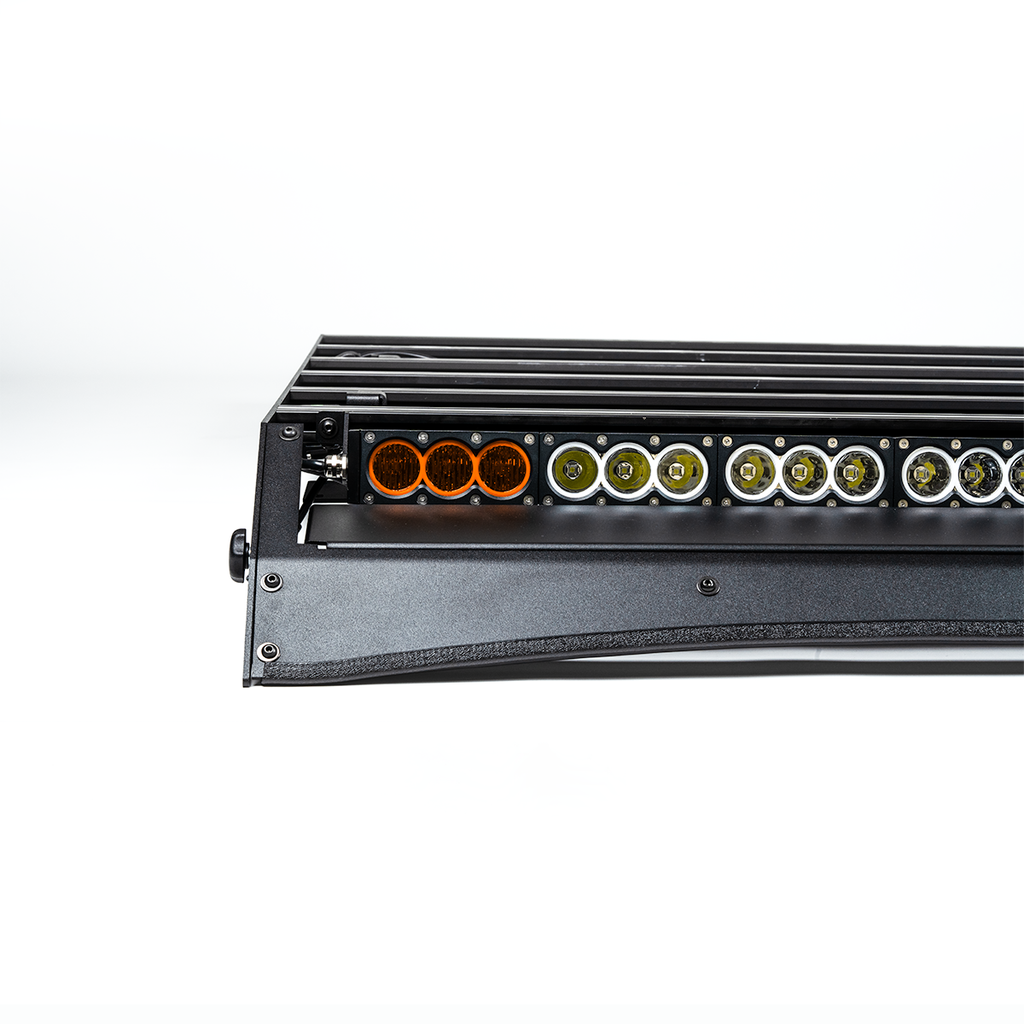

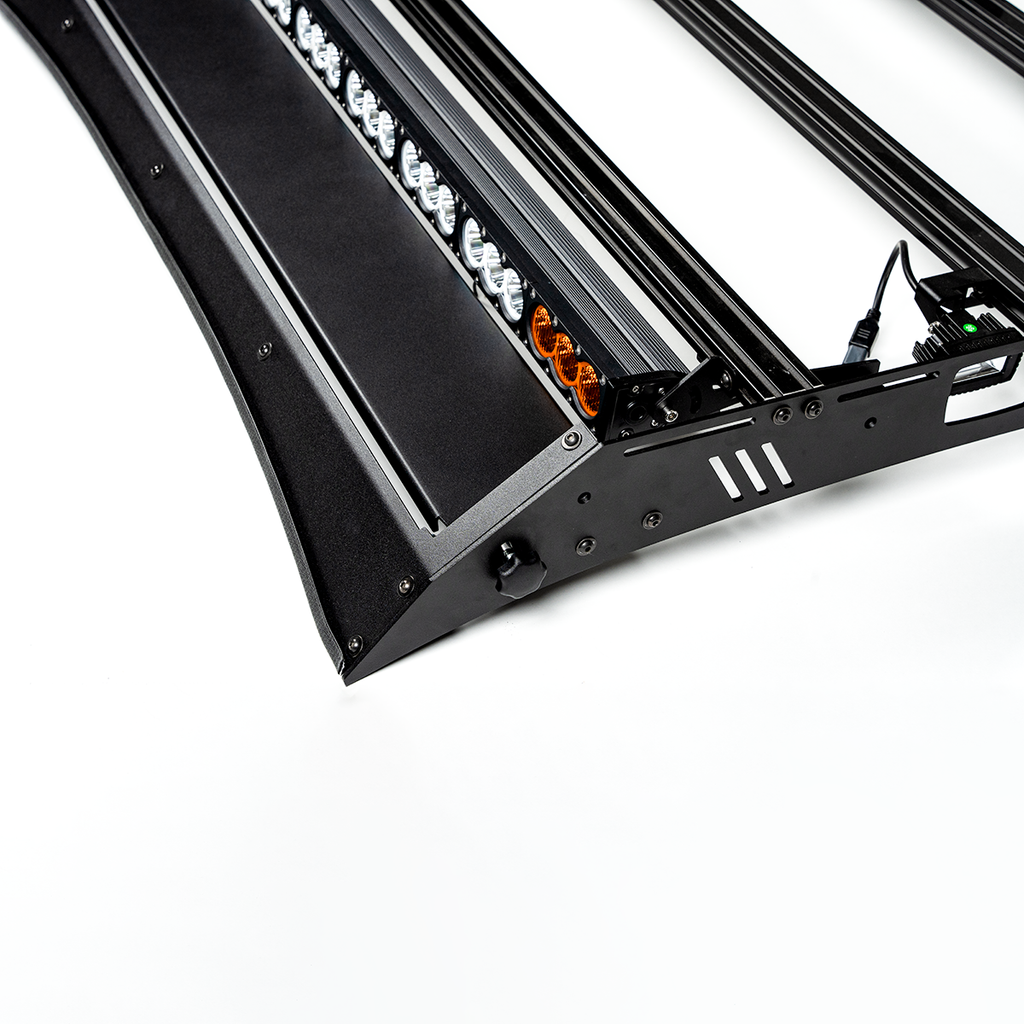

   A: Exclusive to Cali Raised LED, the ALWD is a retractable fairing that protects your LED light bar when not in use. Stay stealthy and street-legal while driving on-road, then reveal your lighting setup in seconds for off-road use.

5. Q: What light bar options are available?
   A: You can choose from:

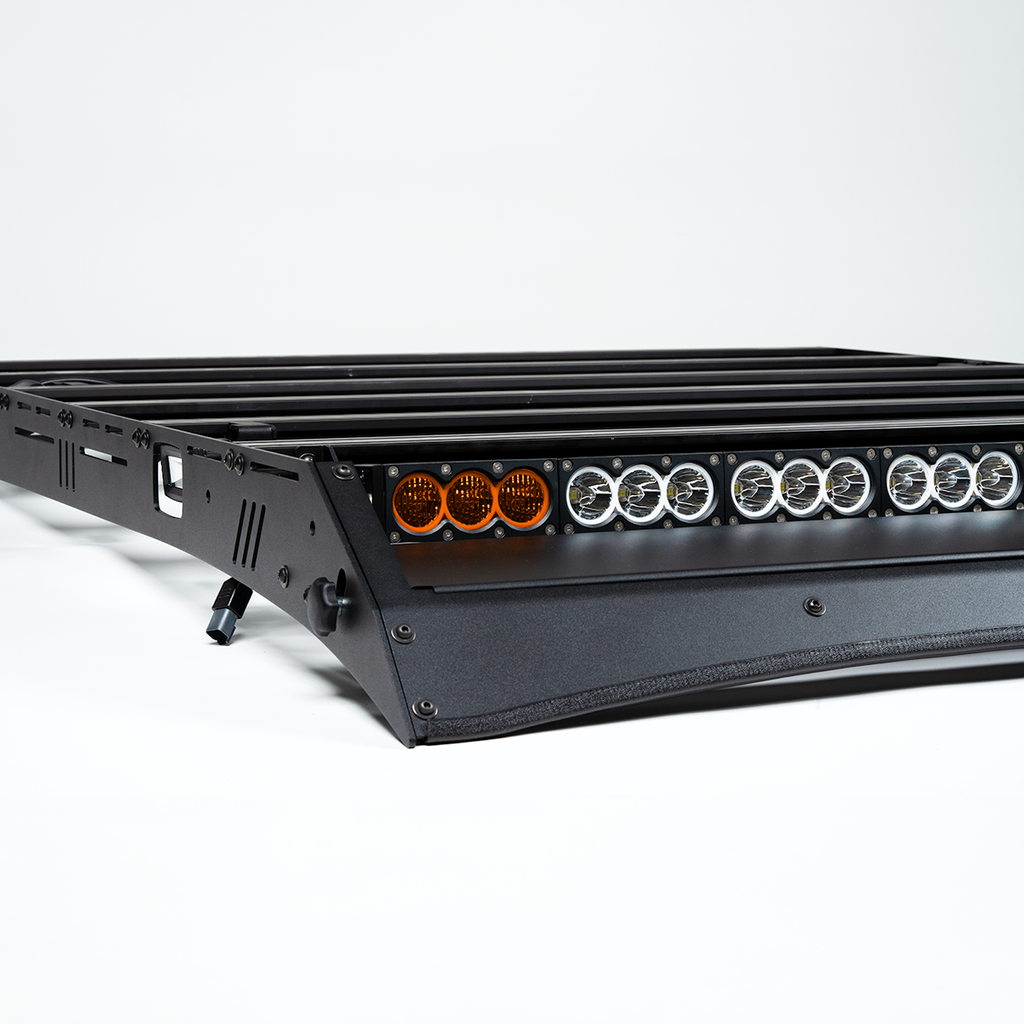

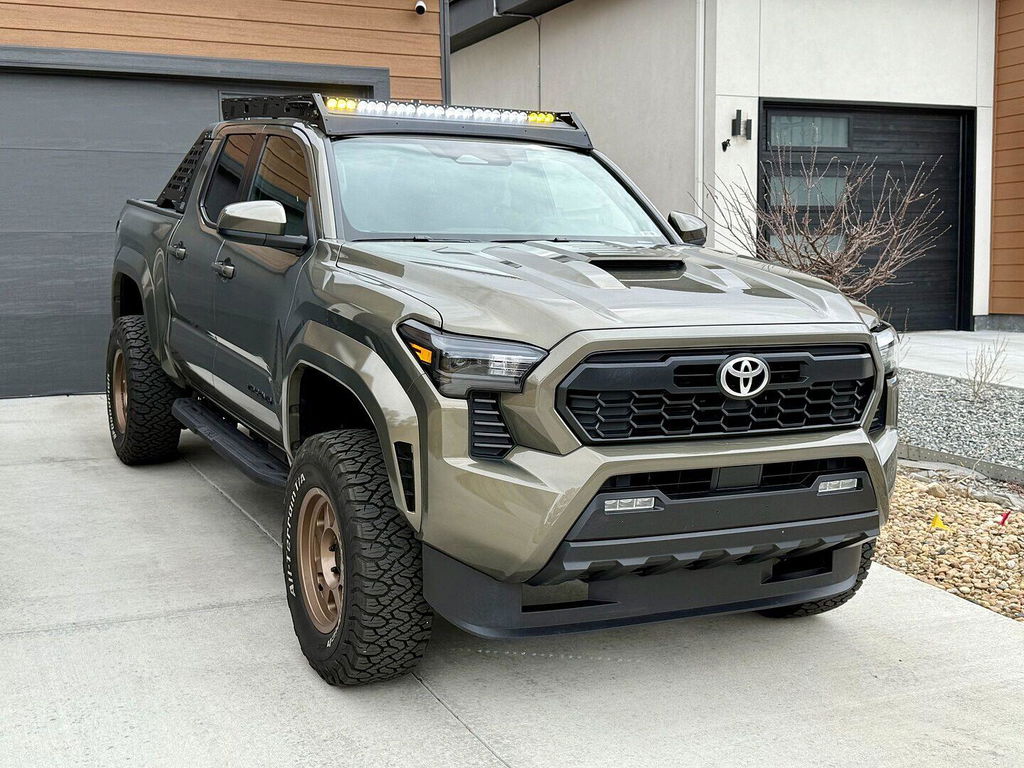

• 43" Dual Function LED Light Bar: Switch between white and amber lighting for adaptive visibility.
• 42" White Dual Row Spot Beam: Long-range lighting ideal for fast-moving trails or highway use.
• 42" White Dual Row Combo Beam: Combines spot and flood beams for broad visibility and depth.

6. Q: Are side and rear lights included?

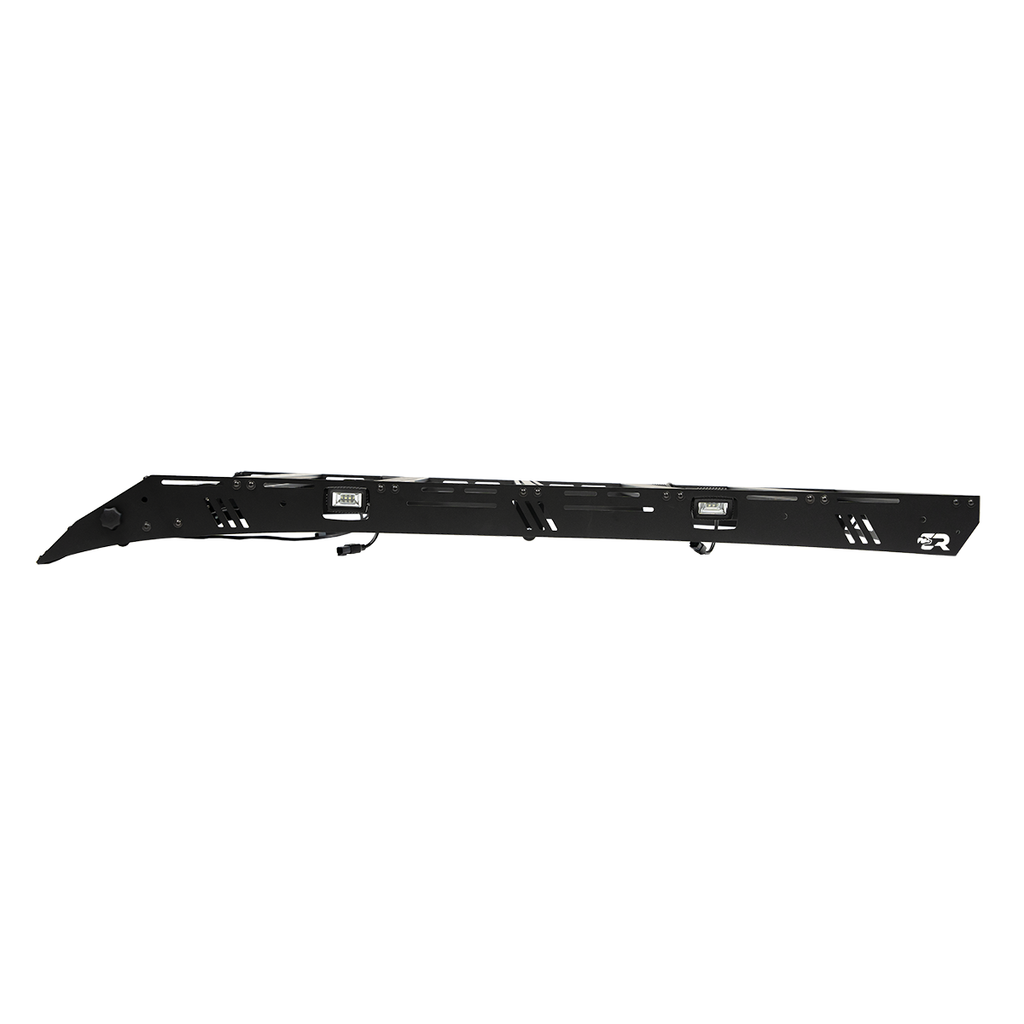

   A: Side light cut-outs come standard with the rack, allowing you to easily add optional pod lights. Rear lighting and full 360° packages are available separately.

7. Q: What’s included with a light bar purchase?
   A: When you buy a light bar from Cali Raised LED, it includes a dedicated wiring harness and mounting brackets for quick and clean installation.

8. Q: Do I need to modify the wiring?
   A: For the front light bar, we offer plug-and-play wiring harnesses. For side and rear lights, a custom wiring solution may be required. If you're unsure, Contact @CALIRAISED-Support for help.

9. Q: What makes this rack different from others?
   A: The Cali Raised LED Premium Roof Rack is proudly made in the USA and combines form, function, and innovation — including the industry-first ALWD. It's modular, durable, low-profile, and optimized for Toyota-specific fitment with multiple lighting integration options.

• Installation Type: 100% bolt-on — no cutting, drilling, or permanent modifications required.
• Tools Needed: Basic hand tools and a torque wrench.
• Time Required: Approximately 2–3 hours with two people recommended for easier handling.
• Hardware: All black powder-coated hardware and extrusion bars included.
• Waterproofing: We recommend applying automotive-grade silicone (not included in purchase) where the rack mounts to the roof to enhance weather resistance.
• Lighting Integration: All required wiring harnesses and brackets are included with light bar purchases. Custom wiring may be needed for side and rear lights.

Wiring Your Dual Function Light Bar:

Make wiring simple with the Cali Raised LED Dual Function Wire Harness — designed for a 100% plug-and-play installation. When you purchase a Dual Function LED Bar and matching harness from Cali Raised LED, all you need to decide is the switch height. It’s the cleanest and most efficient way to wire your dual-output setup. There are two ways you can wire your dual-function bar depending on how you would like it to operate.

If you prefer to wire the bar manually, here’s how:

OPTION 1: Single Harness — Control All Lights Together
Use this setup if you want both the amber and white LEDs to turn on/off simultaneously.

LED Bar Wire Colors:
BLACK: Ground
WHITE: Power for White LEDs
GREEN: Power for Amber LEDs

STEPS:

1. Remove the plug from the harness.
2. Connect black wire from the LED bar to the black wire on the harness.
3. Combine the white and green wires from the LED bar and connect them to the red wire on the harness.

OPTION 2: Dual Harnesses — Control Amber & White Independently
Use this setup If you want to control the amber and white lights separately, you’ll need TWO HARNESSES — one for each function. This setup allows you to run the amber and white LEDs independently or together, depending on your needs.

The LED Bar will Have 3 Wires On It:
BLACK: Ground
WHITE: Power for White LEDs
GREEN: Power for Amber LEDs

STEPS:

1. Remove the DT plugs from the ends of both wire harnesses to expose red and black wires.
2. Combine the black wires from both harnesses and connect them to the black wire on the LED bar.
3. Connect one red wire to the white wire (white LEDs), and the other red wire to the green wire (amber LEDs) on the LED bar.

This configuration gives you independent control over your amber and white light functions — ideal for adaptive lighting on and off the trail.
