Made in the USA
Front Skid Plate for 2010-2024 4Runner | Cali Raised LED Front Skid Plate for 2010-2024 4Runner - installed view | Cali Raised LED Front Skid Plate for 2010-2024 4Runner - close-up detail | Cali Raised LED Front Skid Plate for 2010-2024 4Runner - lifestyle photo | Cali Raised LED Front Skid Plate for 2010-2024 4Runner - angled view | Cali Raised LED

Cali Raised · Ships from our Texas Facility

Front Skid Plate For 2010-2024 4Runner

MPN: CR3801

Before you hit the rough terrain, protect your vehicle with a front skid plate that can take a hit and is built to last through the toughest conditions. Guarding the underside of your outfitted off-road vehicle as you adventure in the great outdoors, these skid plates are custom-made to fit your vehicle so you can focus on the trail ahead.

Crafted from American 3/16 Steel. The front skid plate is 100% bolt-on and is installed with zero modification to your truck. Using a combination of factory hardware and grade 8 hardware for high-quality fit.

All plates ship with a durable semi-gloss black powder coat finish for long-term corrosion resistance.

NOTE:

  • Skid plates will NOT work with KDSS
  • Front Skid does NOT work with a sway bar drop used by King and Fox. They will need to remove the sway bar.

FEATURES:

  • 100% bolt-on option, no modification required.
  • Durable semi-gloss black powder coat finish for long-term corrosion resistance.
  • Easy installation, read our installation instructions or watch the installation video below for a step-by-step guide.
  • Crafted by American Welders with professional powder coat finish to protect from corrosion.
  • Differential Drop Compatible.
Read More
HOT

$439.99

See payment options
  • Front Skid Plate For 2010-2024 4Runner
  •
    Material /
    SKU
Subtotal: $
Fits:Toyota 4Runner 2010-2024
Secure checkout · Shop Pay & all major cards
$439.99
FAQ
WEIGHT

1. Does the transfer case skid protect the catalytic converter from theft?

Not a guarantee, but it will make it more difficult for thieves to fit cutting tools in that area. But these were not designed for theft prevention. The transmission skid covers 50% of the catalytic converter.

2. Are they bolt-on, or do they require modification?

Yes, they are 100% bolt-on. You will have to remove some factory items, but they use all existing bolt holes. You can go back to stock at any time.

3. What types of material are the skid plates made from?

The front, transmission, transfer case and fuel skids are all made from either 3/16” thick steel, or 1/4” 5052 aluminum. 100% MADE IN USA, Fort Worth, Texas.

4. Differential Drop Compatible?

Yes

5. SPECIAL NOTES

Front Skid does NOT work with a sway bar drop used by King and Fox. They will need to remove the sway bar.

STEEL:

  • 49.2 lbs

ALUMINUM:

  • 20.5 lbs

Installation

Installation guide for Front Skid Plate For 2010-2024 4Runner.

Watch video
Read installation steps

How to Install 2014-2024 Toyota 4Runner Front Skid Plate

Protect your 2014–2024 Toyota 4Runner’s undercarriage with a heavy-duty front skid plate, designed to shield vital components like the oil pan and front differential from rocks and debris during off-road adventures. This step-by-step video guide shows you how to remove the factory skid plate, align and position the new one, and securely fasten it using proper torque settings. Perfect for rugged trails, this essential upgrade safeguards your vehicle’s underbody while giving you the confidence to tackle tough terrain. Watch now for a straightforward installation that enhances your 4Runner’s durability and off-road capabilities!

Recently Viewed

  • 5 stars: 13 (93%)
  • 4 stars: 1 (7%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
A
Alex
Great Product

Great product with a simple install. I purchased my front skid plate raw and spray painted it using "Steel-It". The instructional install video was helpful, however, a bit lacking. I believe Cali Raised should add instructional text with information on what tools are required. For instance, wrench and socket size (you'll need metric 13mm and 14mm). Even the instructional video does not mention these details. A minor inconvenience only.

I have not done an oil change with the skid plate yet. I do believe for ease, removing the front skid plate will still be much easier. The removable portion on the front skid plate for access to the oil filter is a bit offset from the oil filter itself, which may make an oil change difficult. This is not a deal breaker for me due to I tend to favor having room to work with and removing the whole skid anyway.

This product will add a little more weight to the vehicle. I have not done the science but maybe about 20lbs total. Not much. In addition, you may lose about a half inch of clearance. This won't be an issue due to the steel plate will be able to act as a skid plate, of course. Also, part of the very minor loss of clearance comes from the 3/16 inch of steel added, which is expected.

Regardless, the product is built well and I will have full confidence on my off road escapades. My OEM front skid plate was in really bad shape with the rocks I've scraped on it already. I'm comfortable knowing those same lines I took with this skid plate would simply turn into needing to reapply paint and not a damaged skid plate.

Thank you Cali Raised for a great product at a competitive price.

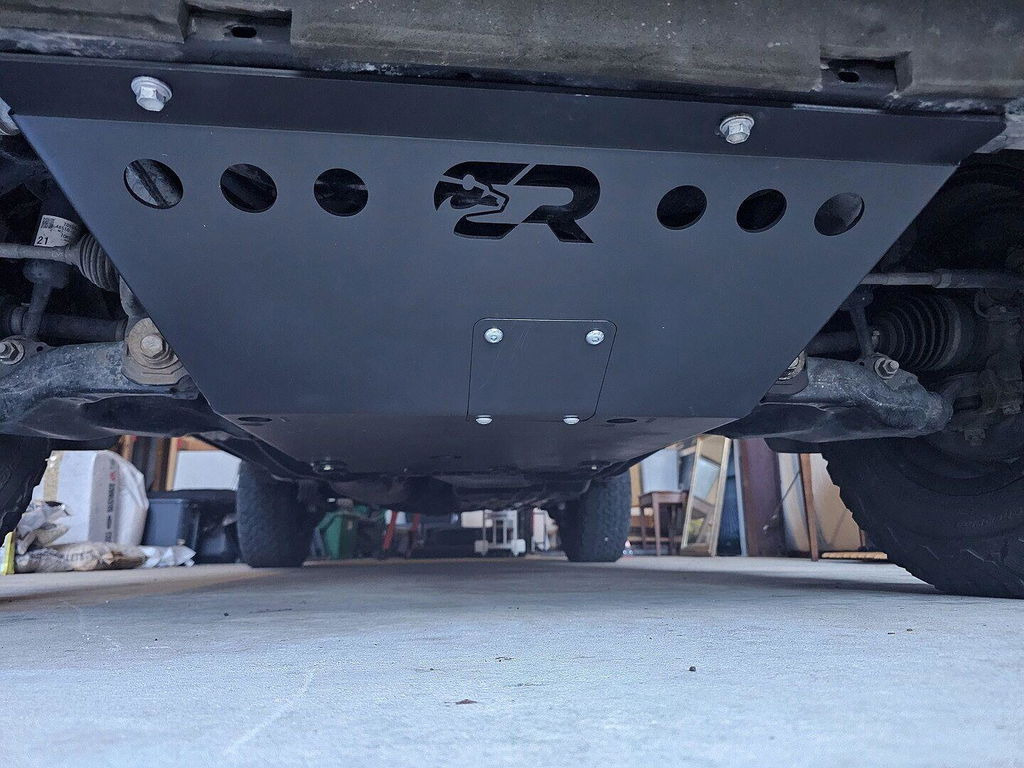

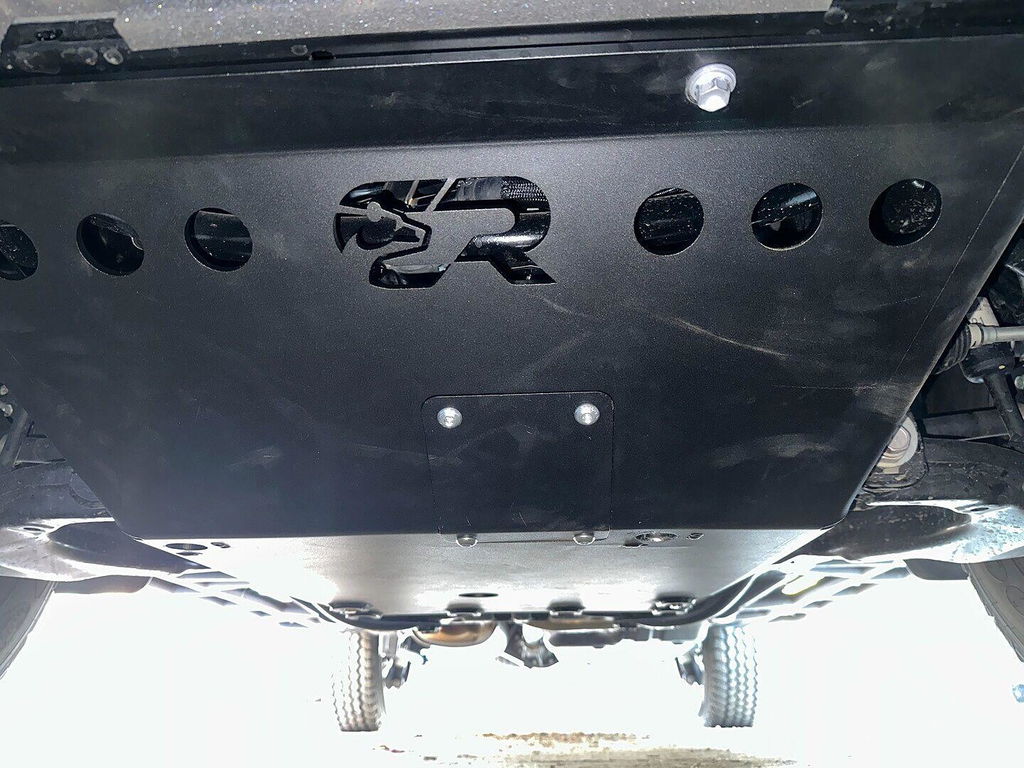

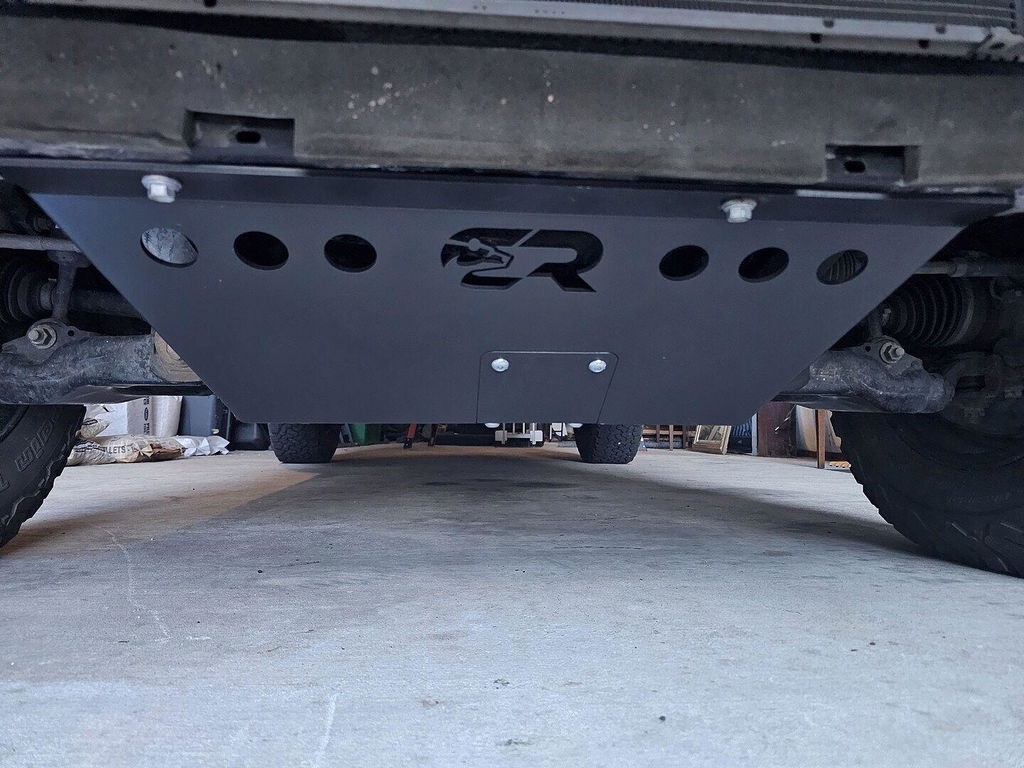

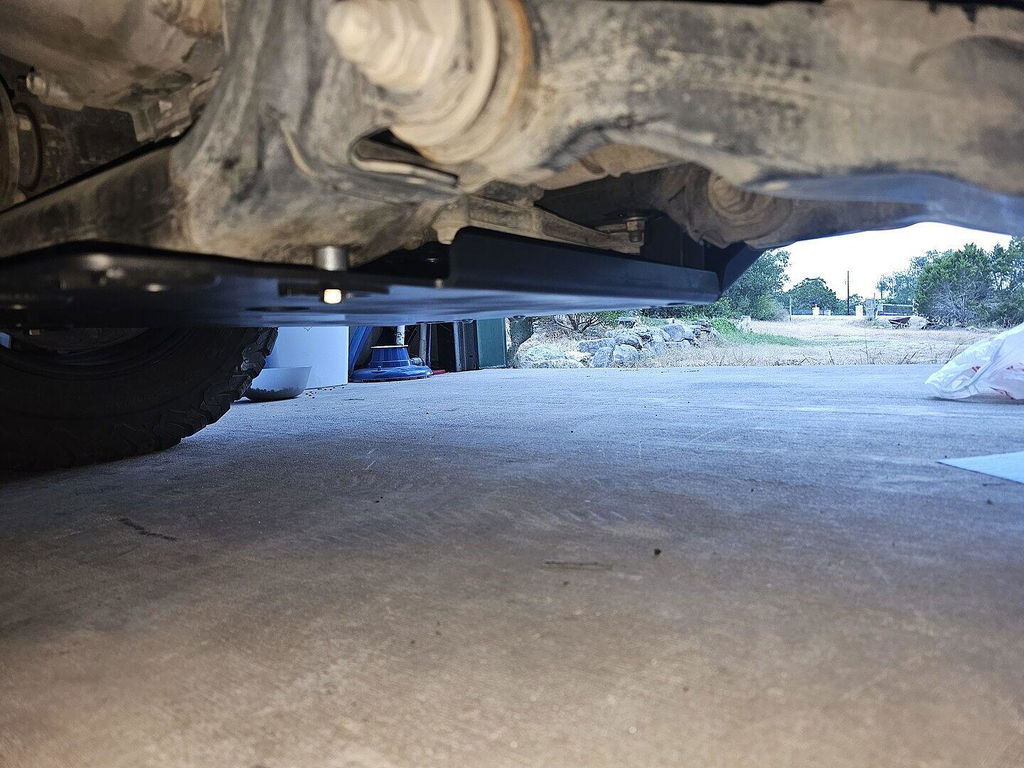

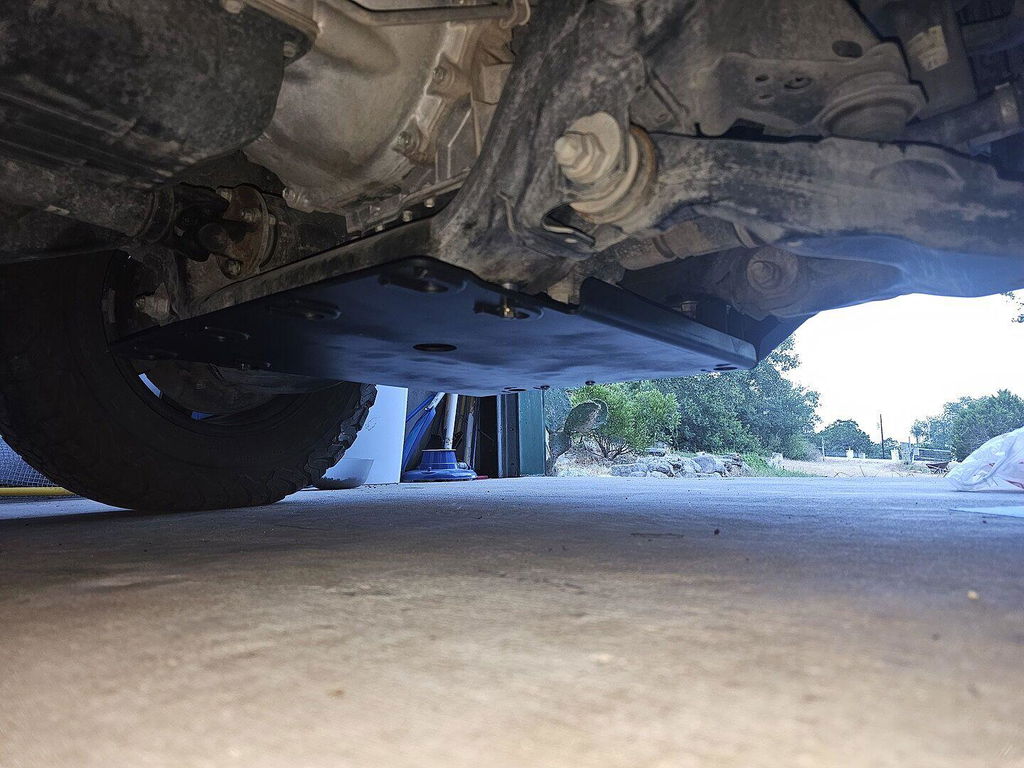

Alex review photo Alex review photo Alex review photo Alex review photo
S
Sean
Great skid plate!

Great looking skid plate to replace factory tin metal pieces. The aluminum is very light weight and easy to install. The fit was a little tight, but it all went together with some patience. Pleasant surprise it came with the Cali Raised logo and not just the holes in the picture shown.

Sean review photo
R
RICK H.
Nice products front and trans

Nice products front and trans skids along with cat shields on our 2nd TRD Sport same items as the first one. Great fit both have the X-Reas system and when installing the cat shields just have to adjust the lines from them 1 on each side for clearance. No biggie I expected it. If you really wanted to you could shorten the front part of the shield but its really not necessary. I don't off road either but wanted road protection. They are heavy but worth it. Nice option getting to the oil filter is a big plus.

T
Todd D.
Got tired of dropping my

Got tired of dropping my factory skid plate to change the oil filter. The Caliraised skid plate fixed my problem. It’s very heavy duty and easy to install.

S
Scott S.
World class customer service! Easy

World class customer service! Easy to bolt up and absolute tank armor. Thank you Cali Raised!!!

J
Joe D.
The product’s quality and overall

The product’s quality and overall protection are of the highest standard.

G
Greg R.
I bought the transmission plate

I bought the transmission plate also. Would have been nice ot the transmission plate was wider to cover the catalytic converters instead of needing to buy extra covers to prevent theft. Plates installed fine but it doesn't accomodate the plastic front cover for the SR5.

s
sal l.
Good overall but bolts not

Good overall but bolts not long enough
Had to source and buy right ones

A
Adam H.
Excellent fit and finish

Excellent fit and finish

E
Ella C.
Front skid for 2014 4Runner

Bought this to replace the stock skid on my 2014 SR5P, install wasn't too difficult, took two people though. I got the steel variant, very happy with quality and the better protection it'll give my truck. Thanks CaliRaised!

B
Brian K.
Great Product & Support

Unfortunately, this did not fit my vehicle as it is equipped with KDSS. It was extremely well built though and the return process was easy and the Cali Rasied team was extremely friendly and helpful!

J
Joseph L.
Outstanding skid

Super easy install, looks great. No more pulling factory skid off to change oil filter

C
Caleb M.
Front Skid Plate - 2023 4Runner TRD Off-Road Premium

Amazing product, the powder coated steel is a massive upgrade from stock and TRD aluminum plate. I had slight trouble getting the oil filter door installed, I may have to drill out the bolt holes in the small plate slightly to avoid stripping threads. Install was easy, videos are a huge help! Highly recommend!

M
Mark M.
Front skid plate

Looks great, seems pretty solid. Love the black powdered coated option. Let’s go places :call_me_hand::skin-tone-4:
