Cali Raised LED catalytic converter shields CR3896 for the 2010-2024 Toyota 4Runner and 2007-2014 FJ Cruiser, driver- and passenger-side 12-gauge 304 stainless guards.

Toyota 4Runner catalytic converter anti-theft shield by Cali Raised LED

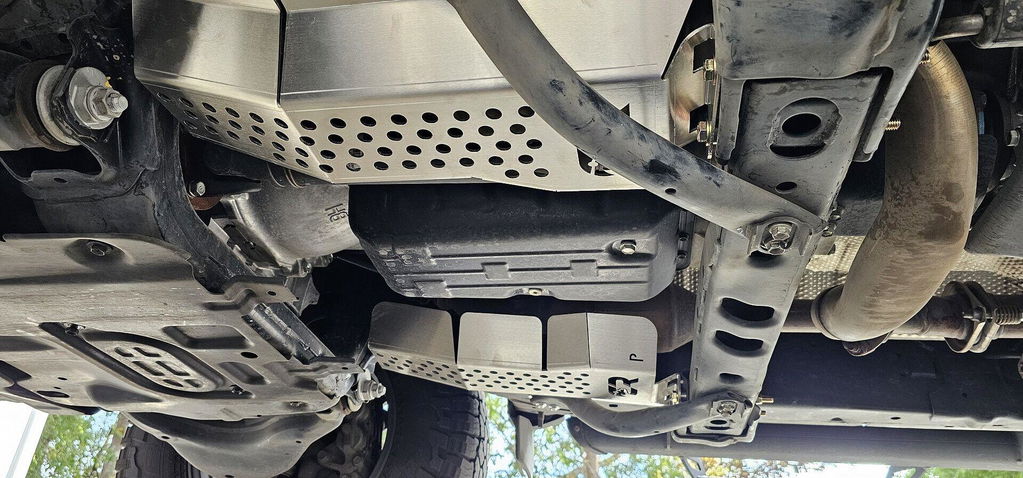

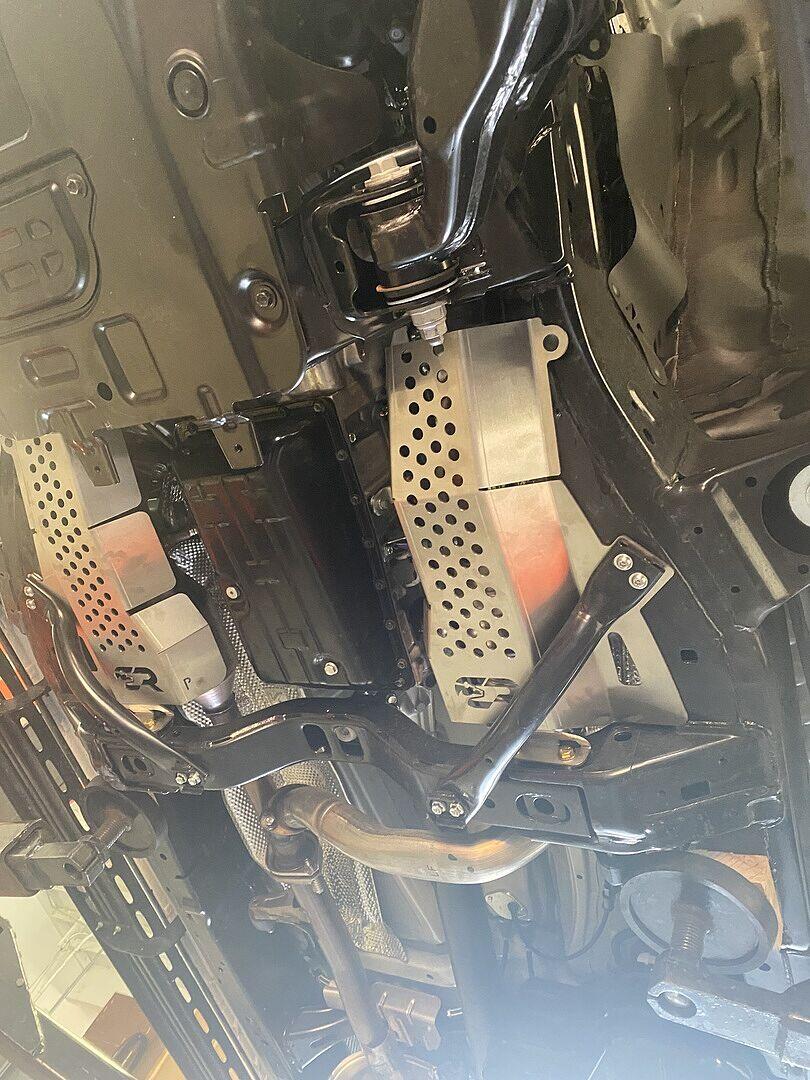

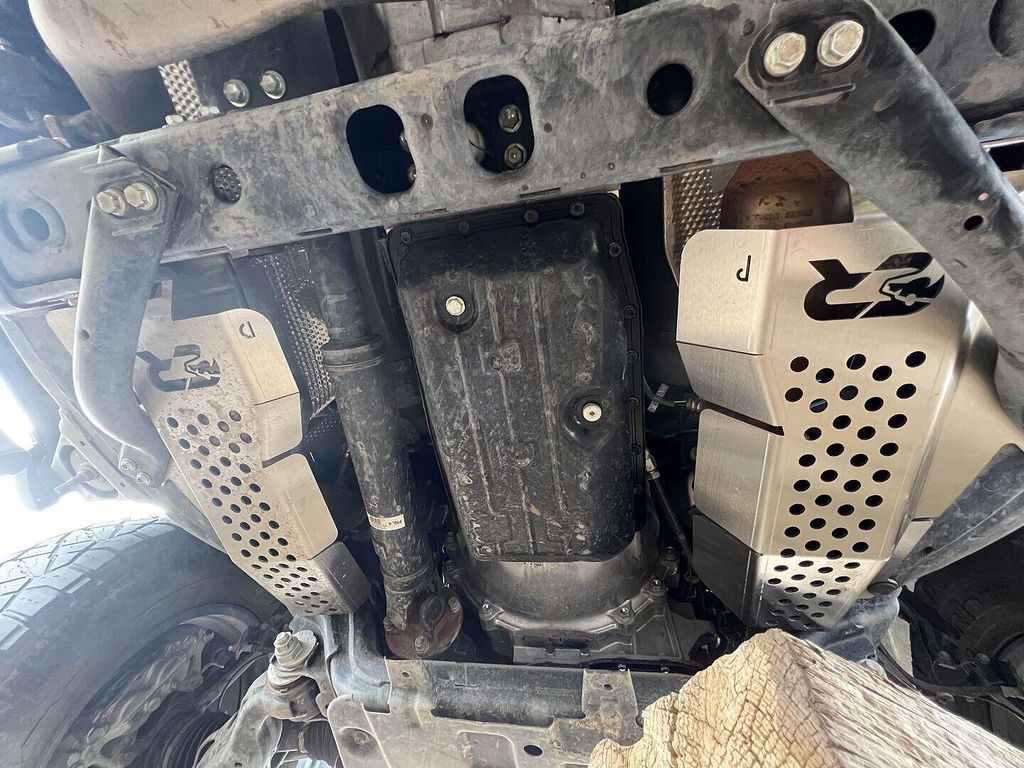

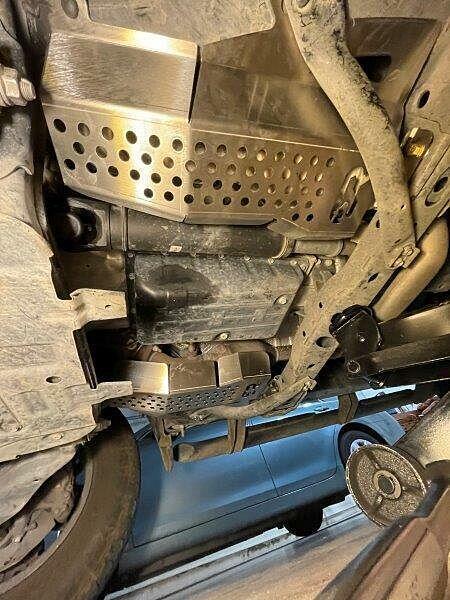

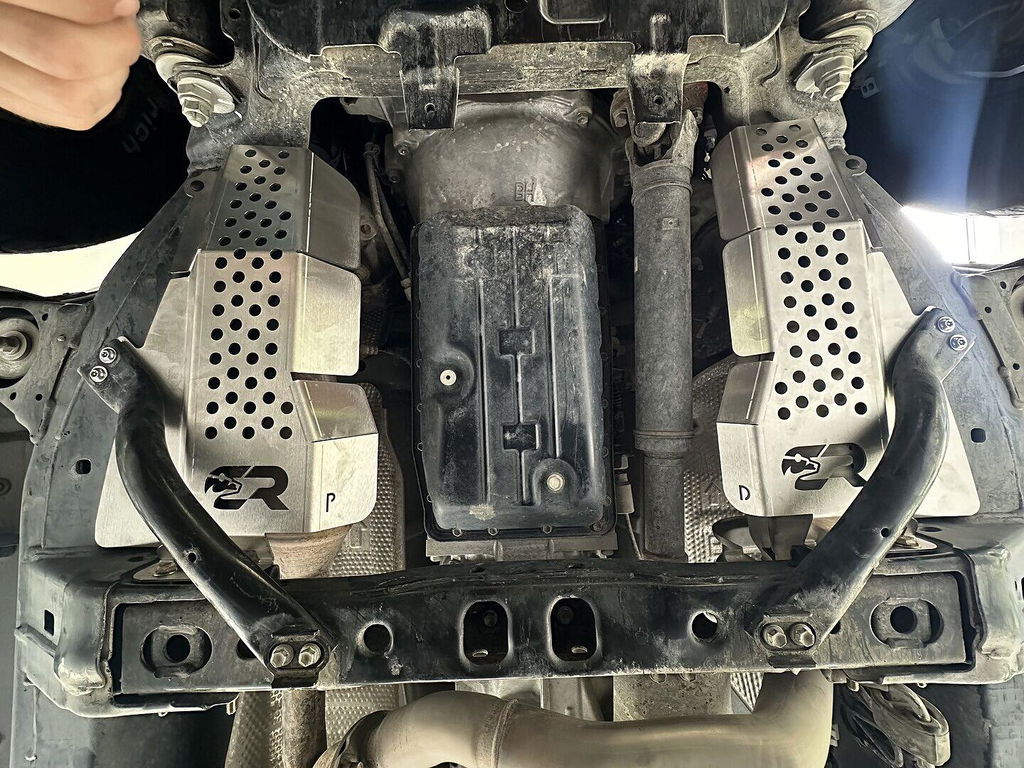

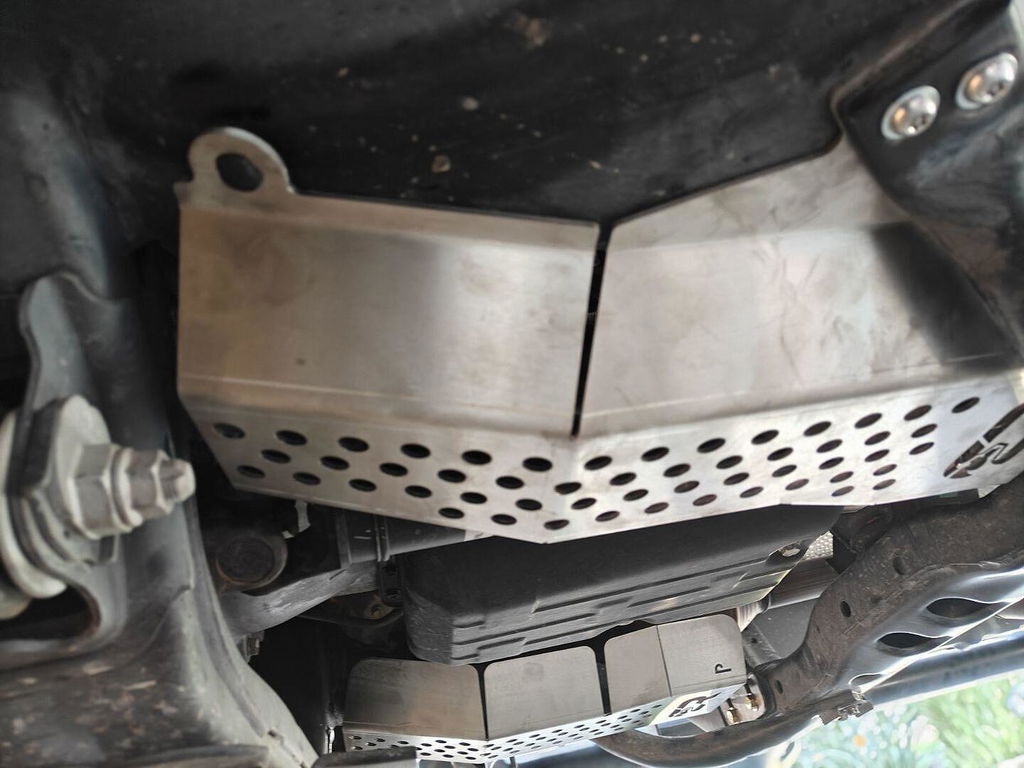

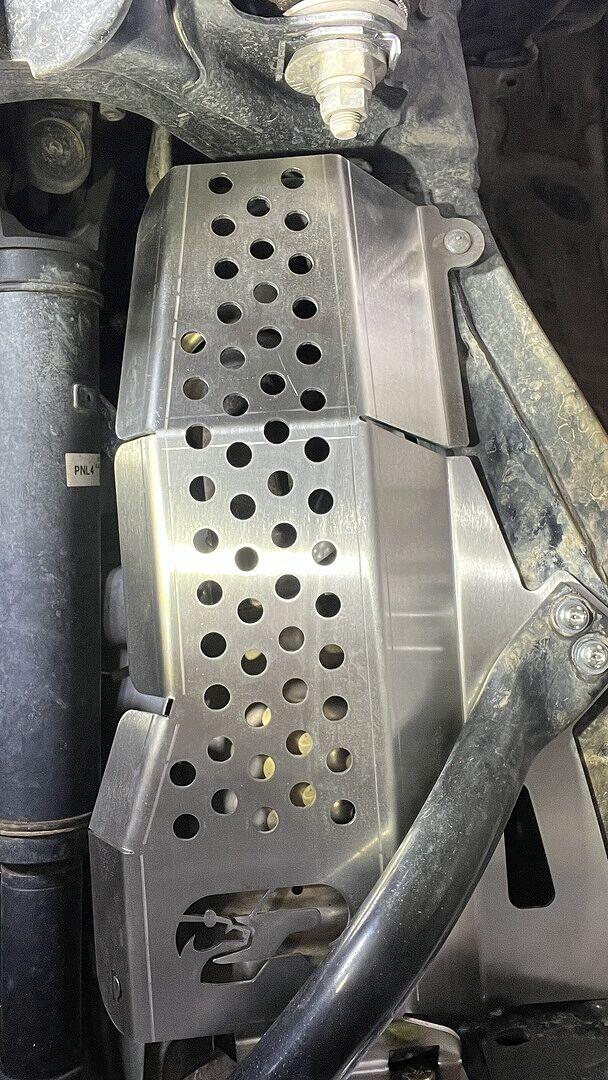

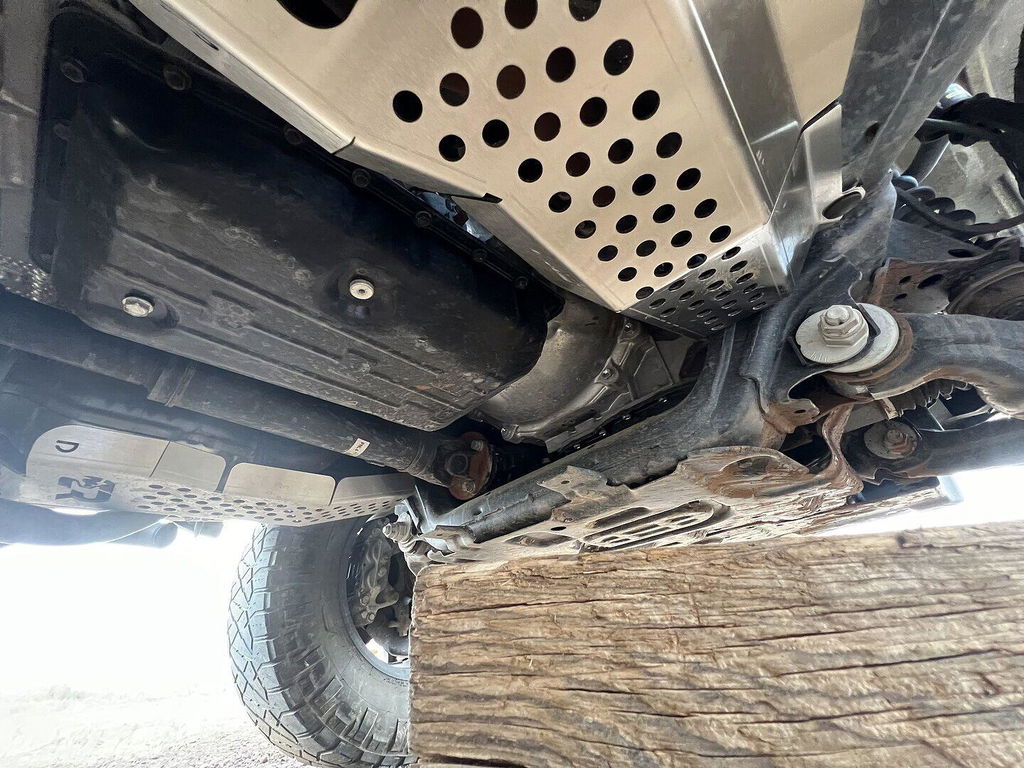

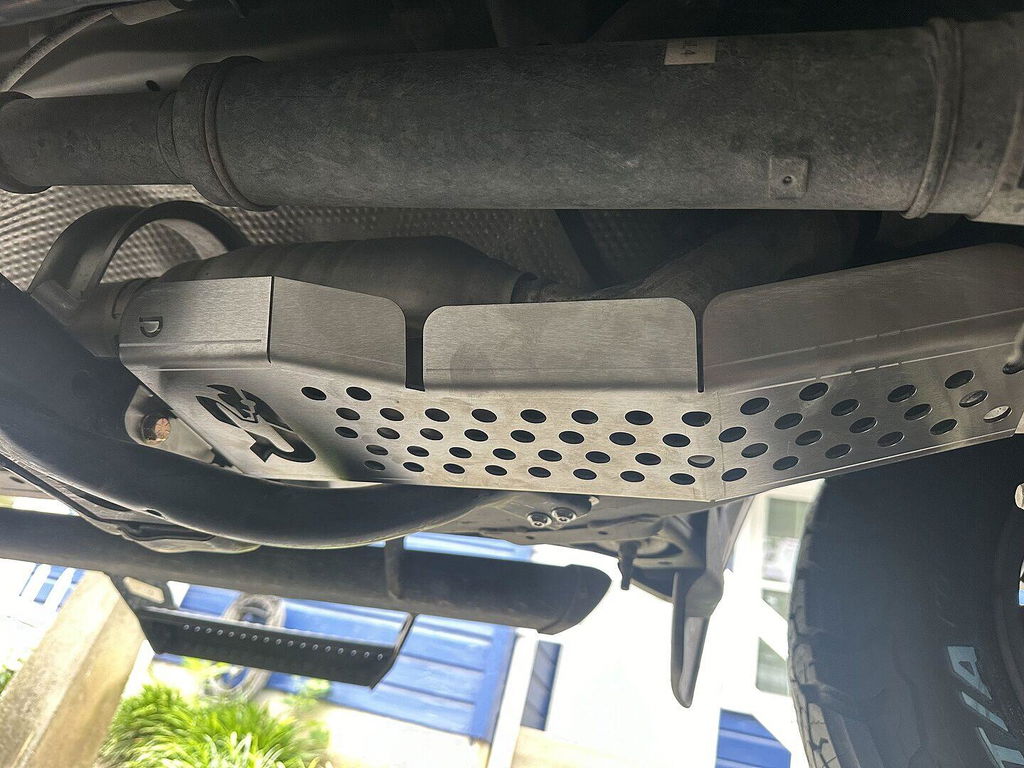

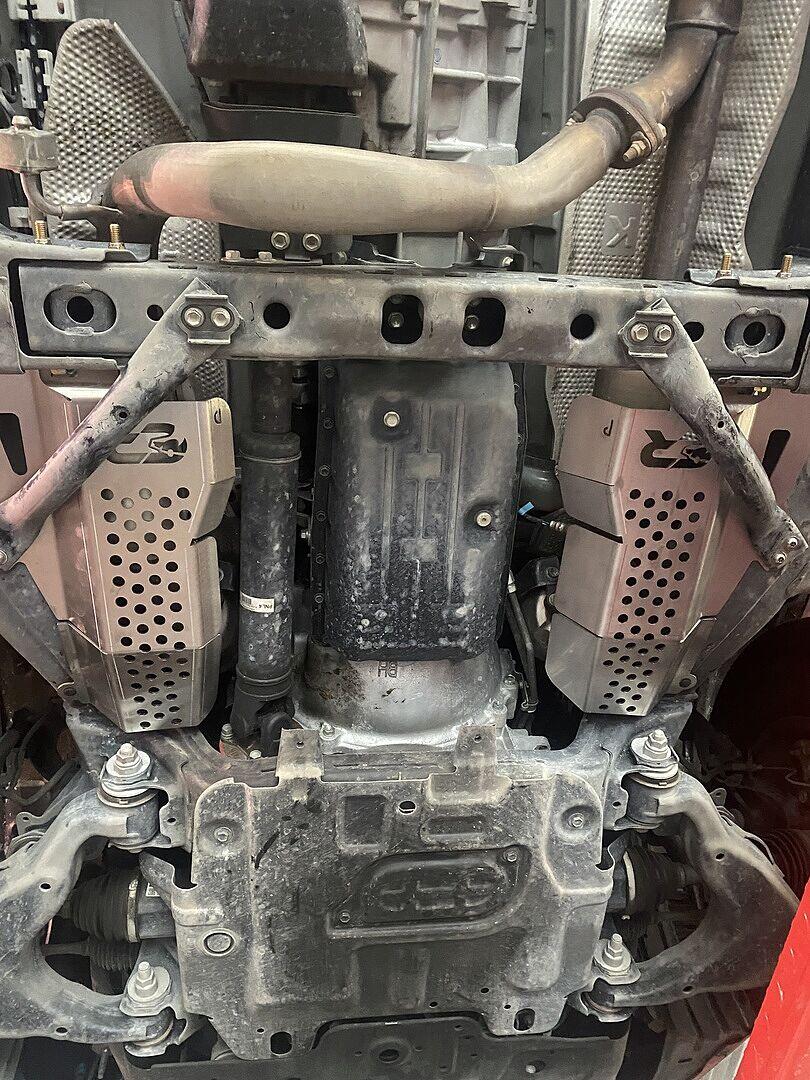

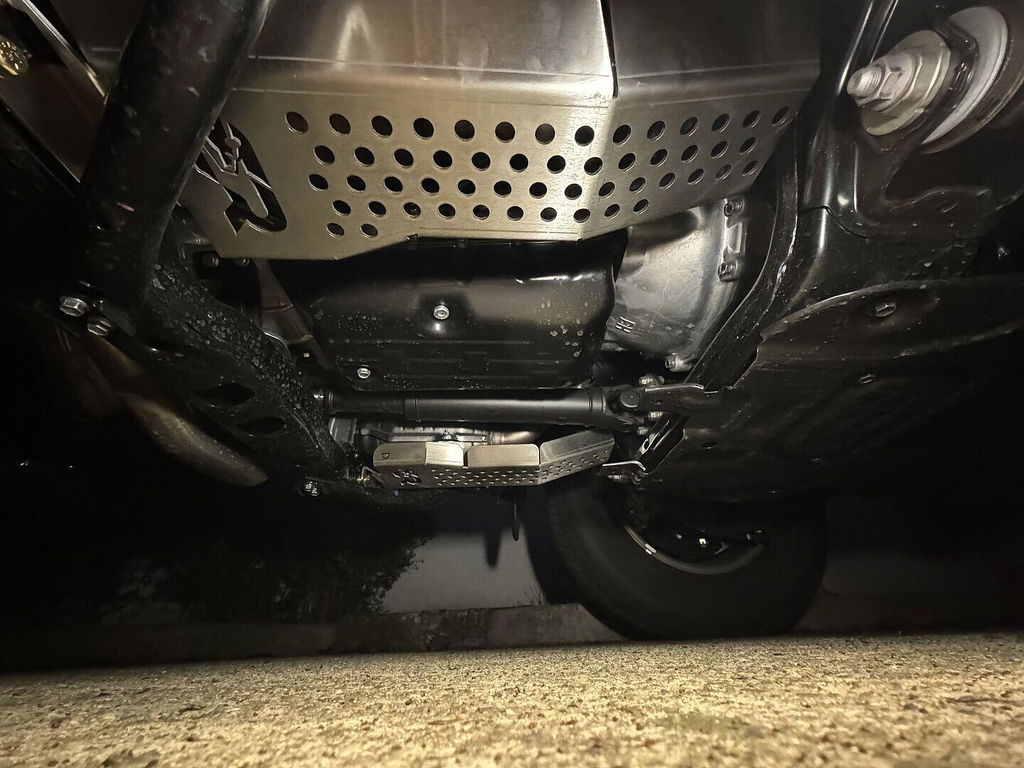

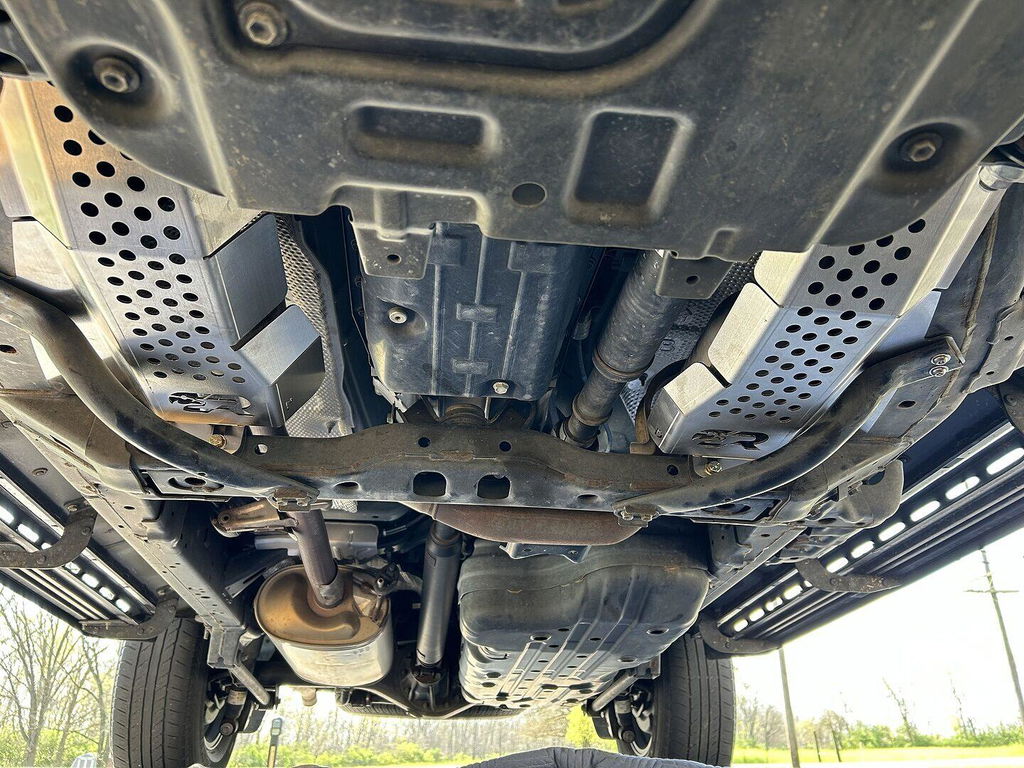

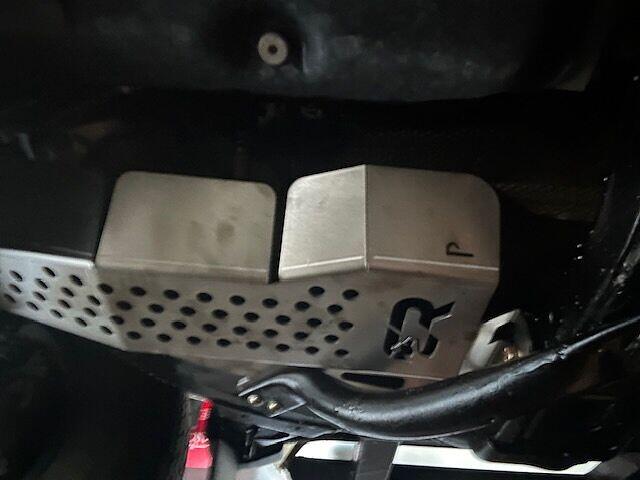

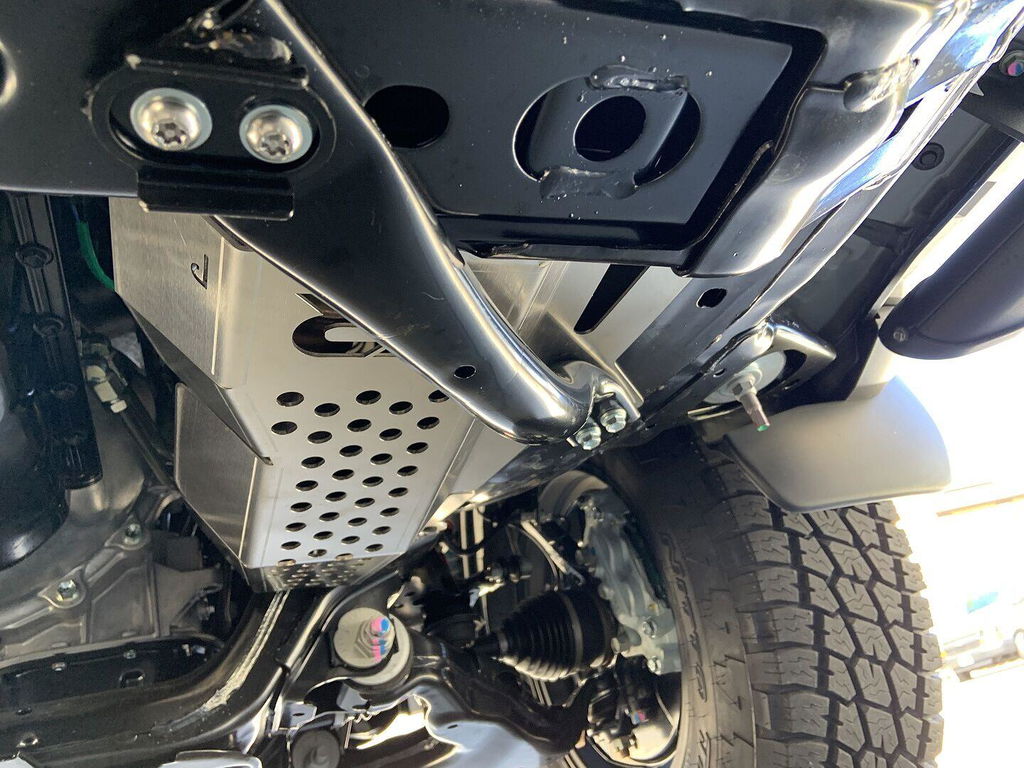

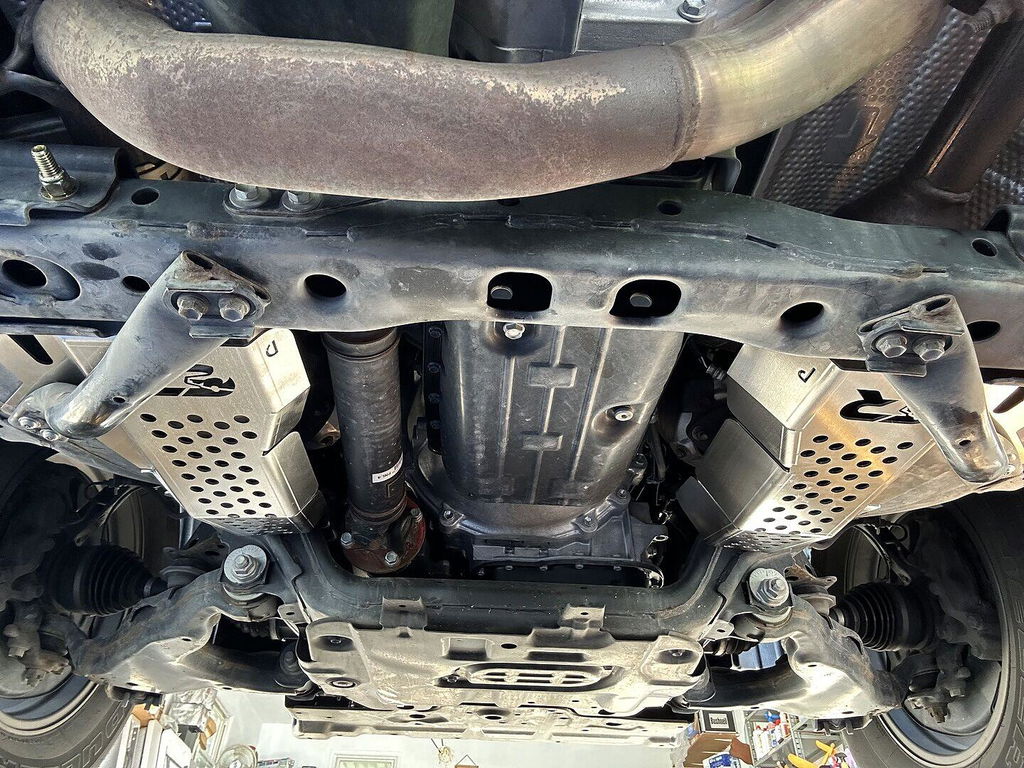

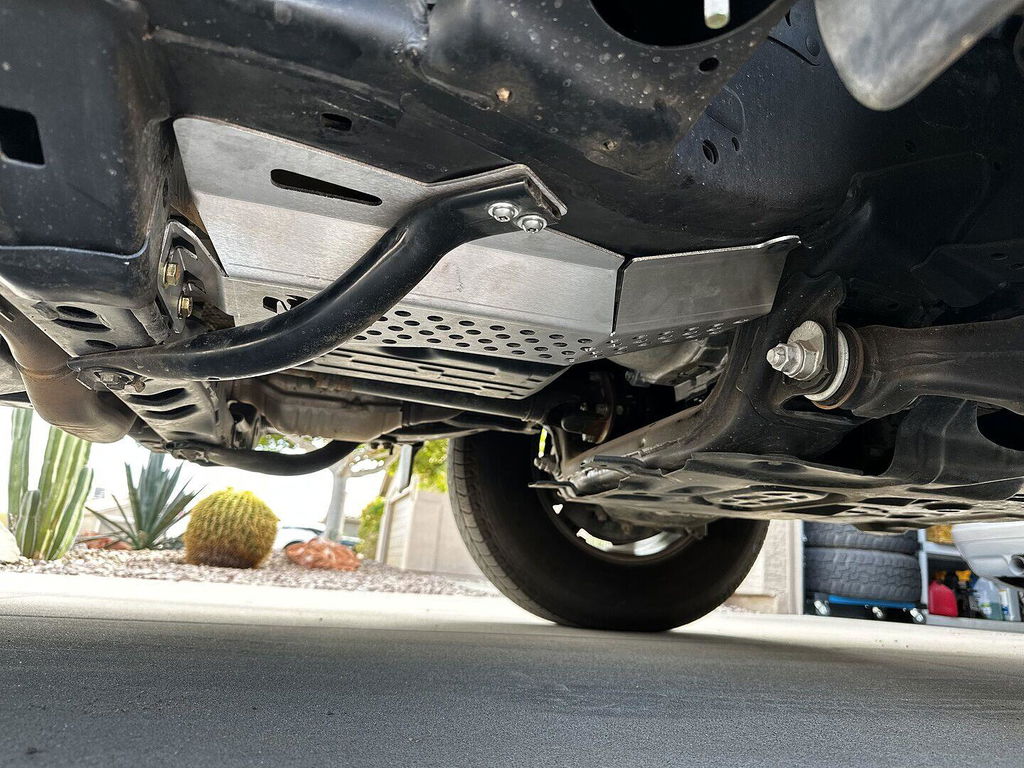

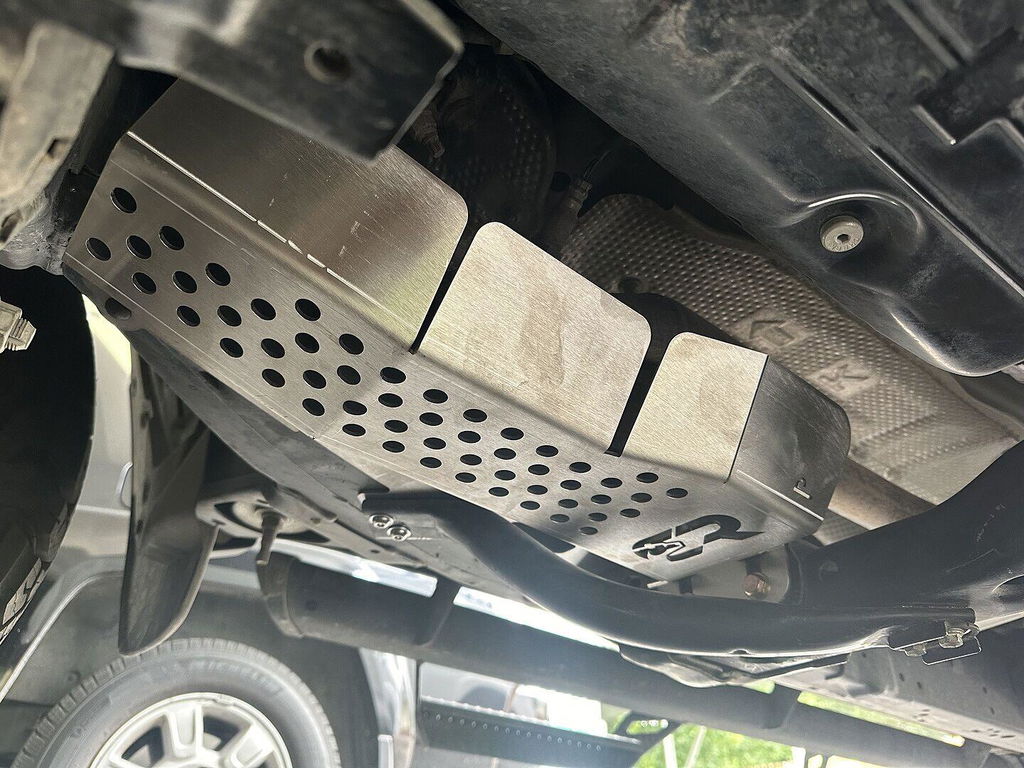

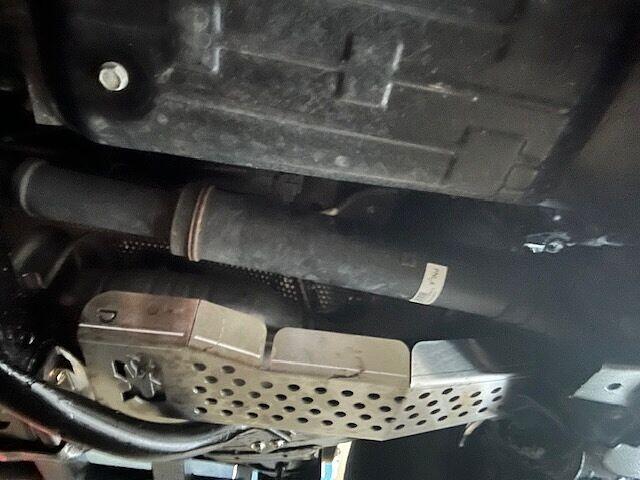

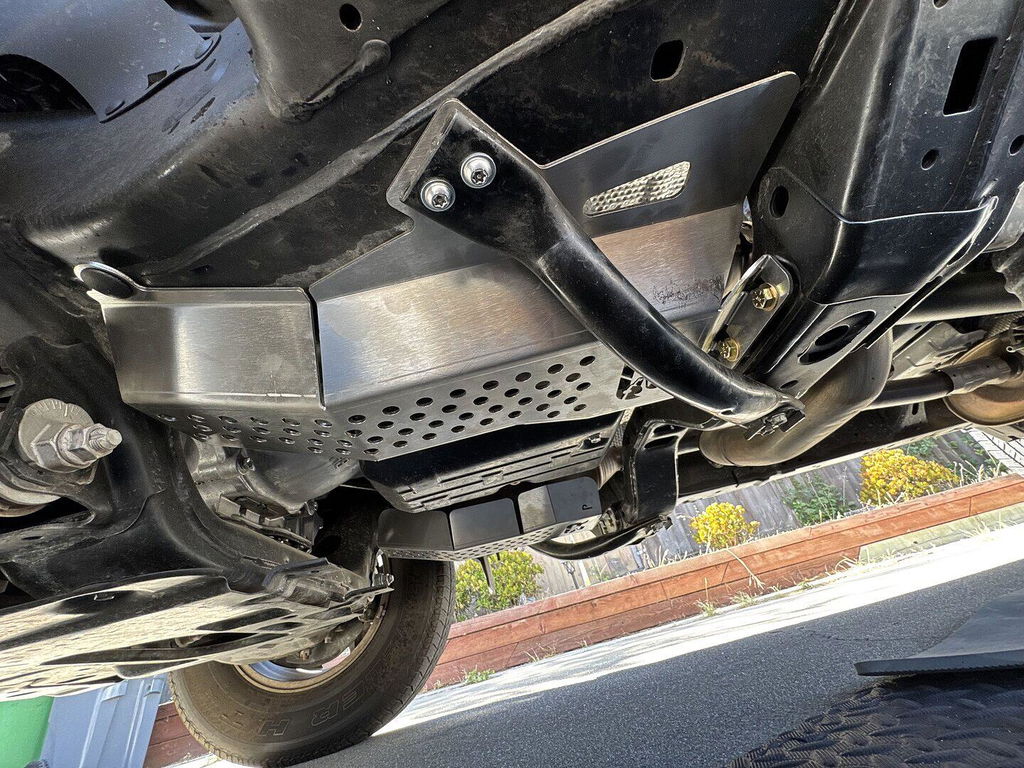

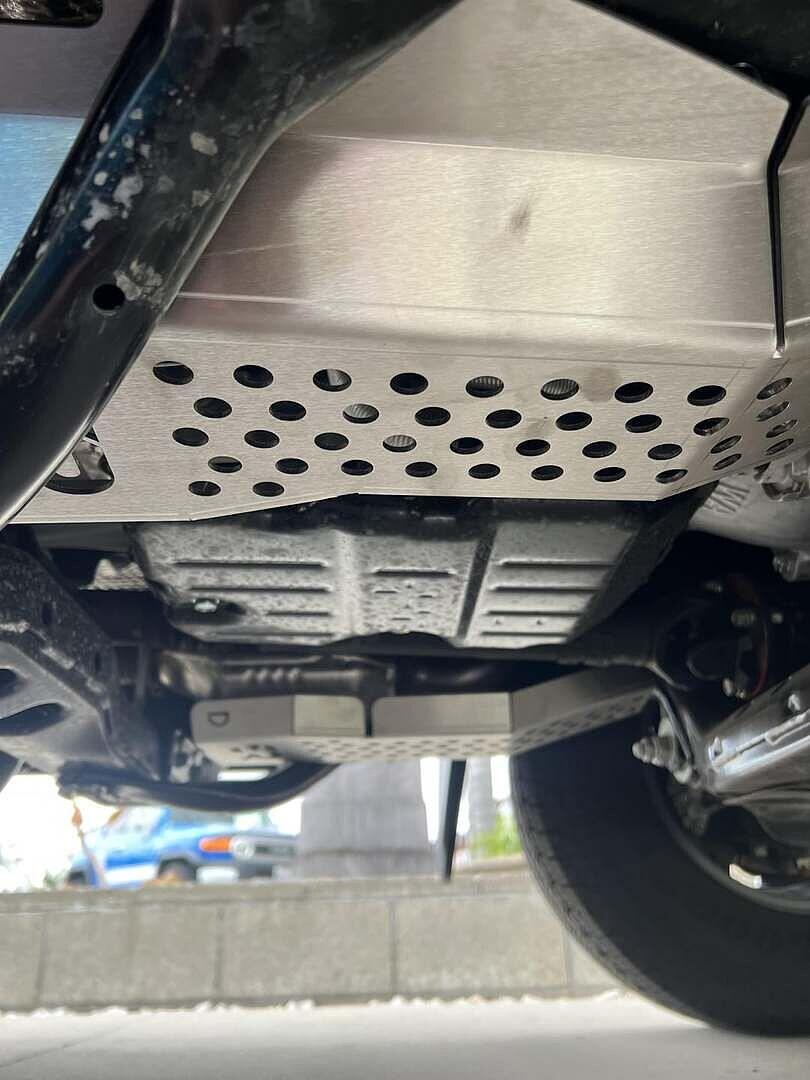

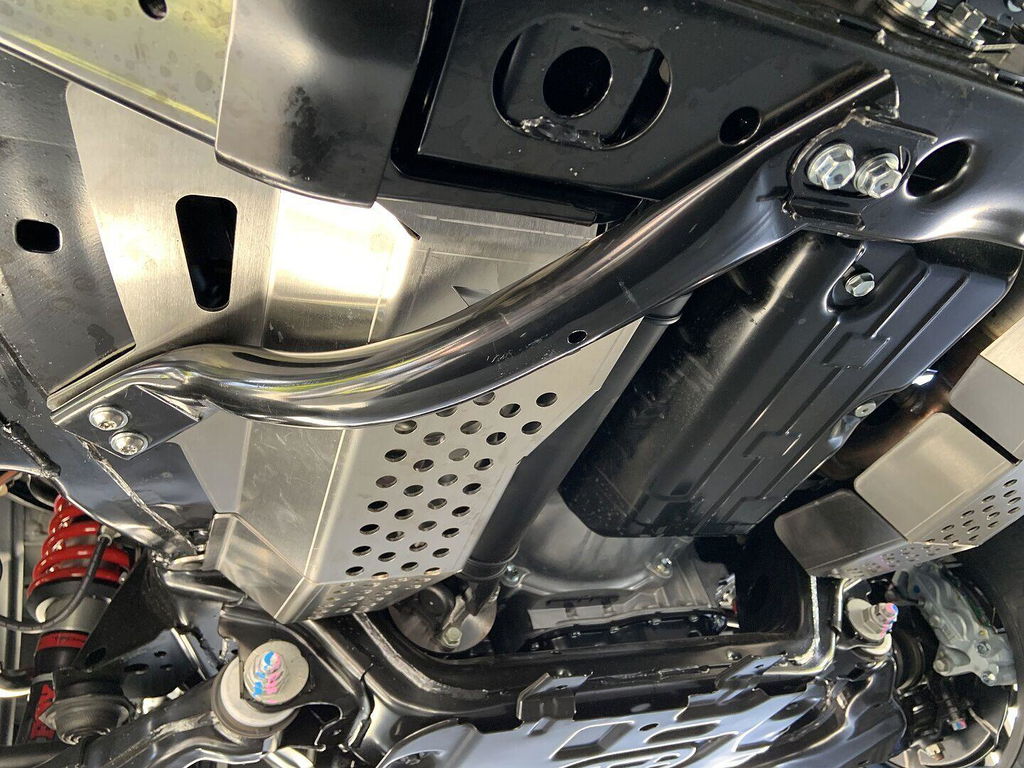

2010-2024 Toyota 4Runner catalytic converter shield installed

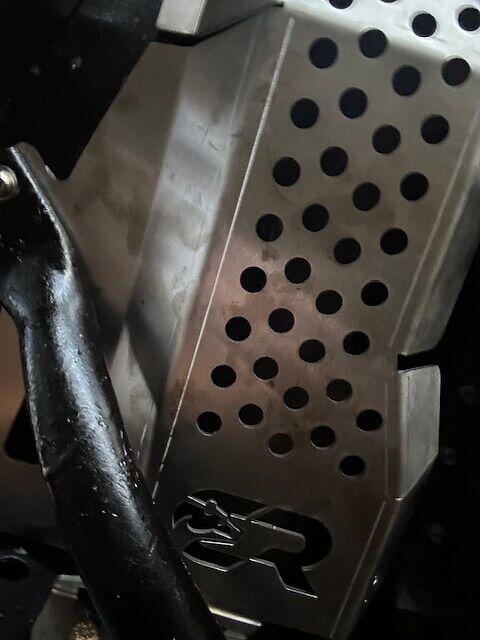

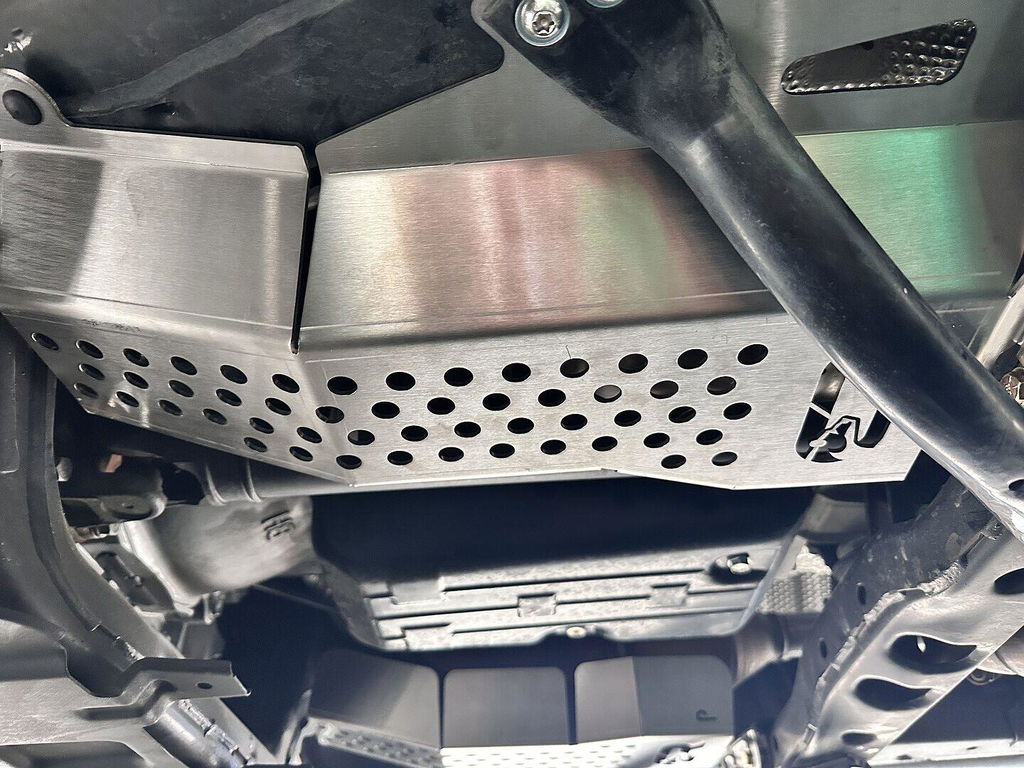

Cali Raised LED 4Runner catalytic converter shield close-up

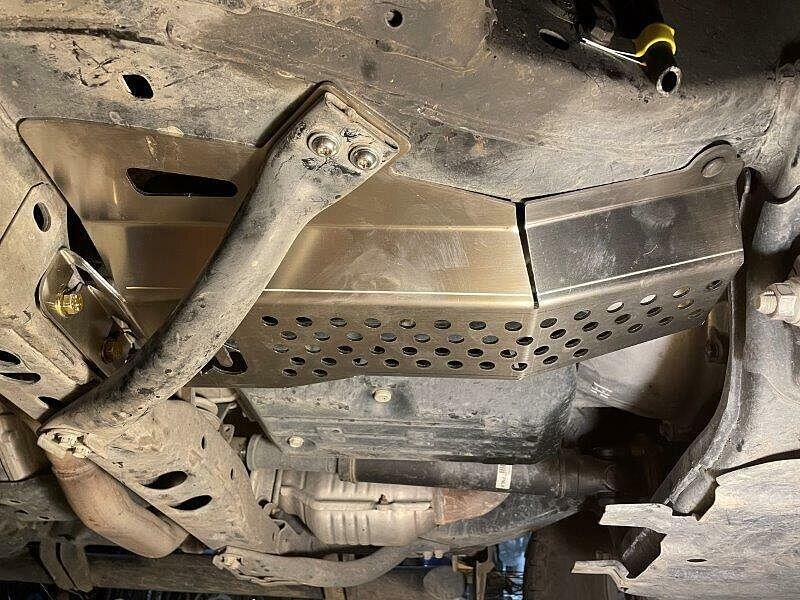

Toyota 4Runner catalytic converter protection plate detail

Catalytic Converter Shield for 2010-2024 4Runner | Cali Raised LED

Cali Raised · Ships from our Texas Facility

Anti-Theft Catalytic Converter Shield for 2010-2024 Toyota 4Runner

MPN: CR3896

Catalytic converter theft is fast, quiet, and expensive — and the 5th Gen 4Runner's ride height leaves its converters an easy reach from underneath. This bolt-on Catalytic Converter Shield from Cali Raised LED armors both converters on your 2010–2024 4Runner without changing your factory ground clearance.

304 Stainless — Cut-Resistant and Corrosion-Proof

Laser cut and CNC bent from 12-gauge 304 brushed stainless steel, this shield stands up to saw blades and years of trail spray, slush, and road salt. The circular hole design lets converter heat escape while keeping the guard rigid and rattle-free.

KDSS-Friendly, 100% Bolt-On Fit

Driver- and passenger-side guards install with the included tamper-resistant security hardware and tool — no drilling, welding, or cutting — using factory mounting points. Compatible with most factory and aftermarket skid plates. Fitment may vary by brand and configuration.

Fitment requirements:

Fits both 2WD and 4WD
Works with KDSS and non-KDSS models
Not compatible with 4Runners equipped with the factory X-REAS system. Compatible only after the X-REAS system has been completely removed.

Note:

Do not paint — catalytic converters run hot

Before you buy

Other versions: Catalytic converter shields for other trucks
Install: ▷ Install Video
↓ Cali Raised LED installation guide PDF - Catalytic Converter Shield for 2010-2024 Toyota 4Runner (CR3896) Rev B
Install steps on this page
Fitment: Fits 2010–2024 4Runner, 2WD and 4WD, with or without KDSS.
Not compatible with 4Runners equipped with the factory X-REAS system unless it has been completely removed.

Specification

FAQ

Made with 12-gauge 304 brushed stainless steel
Laser cut and CNC bent
100% bolt-on installation
Driver and passenger sides included
Security hardware and tool kit included
Compatible with most factory and aftermarket skid plates. Fitment may vary by brand and configuration.
Available in the bare finish only
Free shipping to the lower 48 states.
Fabricated in-house in Fort Worth, Texas

What vehicle does the Catalytic Converter Shield For 2010-2024 4Runner fit?

It fits the 2010-2024 Toyota 4Runner, 2WD and 4WD, with or without KDSS. It is not compatible with 4Runners equipped with the factory X-REAS system, and is compatible only after the X-REAS system has been completely removed.

Does this require drilling?

No. Installation is 100% bolt-on using existing factory bolt holes, with no drilling, welding, or cutting required. Some factory items, including the frame cross braces, are removed and reinstalled during installation. Tamper-resistant security hardware and the matching tool are included.

Where is this catalytic converter shield made?

The shield is laser cut and CNC bent from 12-gauge 304 brushed stainless steel in-house in Fort Worth, Texas.

How long does installation take?

It is 100% bolt-on using factory mounting points, with no drilling, welding, or cutting. Owners report anywhere from 20 minutes to 2 hours, and the first side usually takes the longest.

Will the shields rattle?

The shields are designed to be rigid and rattle-free. The circular hole pattern lets converter heat escape while keeping the guard stiff.

Will it work with my skid plates?

It is compatible with most factory and aftermarket skid plates; fitment may vary by brand and configuration. If you run an aftermarket transmission skid plate, you remove it and reinstall it after installing the shield.

Installation

No drilling · 10 steps · Driver + passenger side

Download PDF

Read installation steps

Catalytic Converter Shield Installation Instructions — CR3896

Install the Cali Raised LED Catalytic Converter Shield (CR3896) on your 2010–2024 Toyota 4Runner using the instructions below. The shields help deter catalytic converter theft by armoring both converters with 12-gauge 304 stainless, without changing your factory ground clearance.

Fitment and installation time

Fits 2010–2024 Toyota 4Runner (5th Gen), 2WD and 4WD, with or without KDSS. Not compatible with the factory X-REAS system; fits only after X-REAS has been completely removed. 100% bolt-on at factory points; no drilling, welding or cutting. The front tube supports (frame cross braces) are removed and reinstalled. Installation time is not stated in the video.

Included in the kit

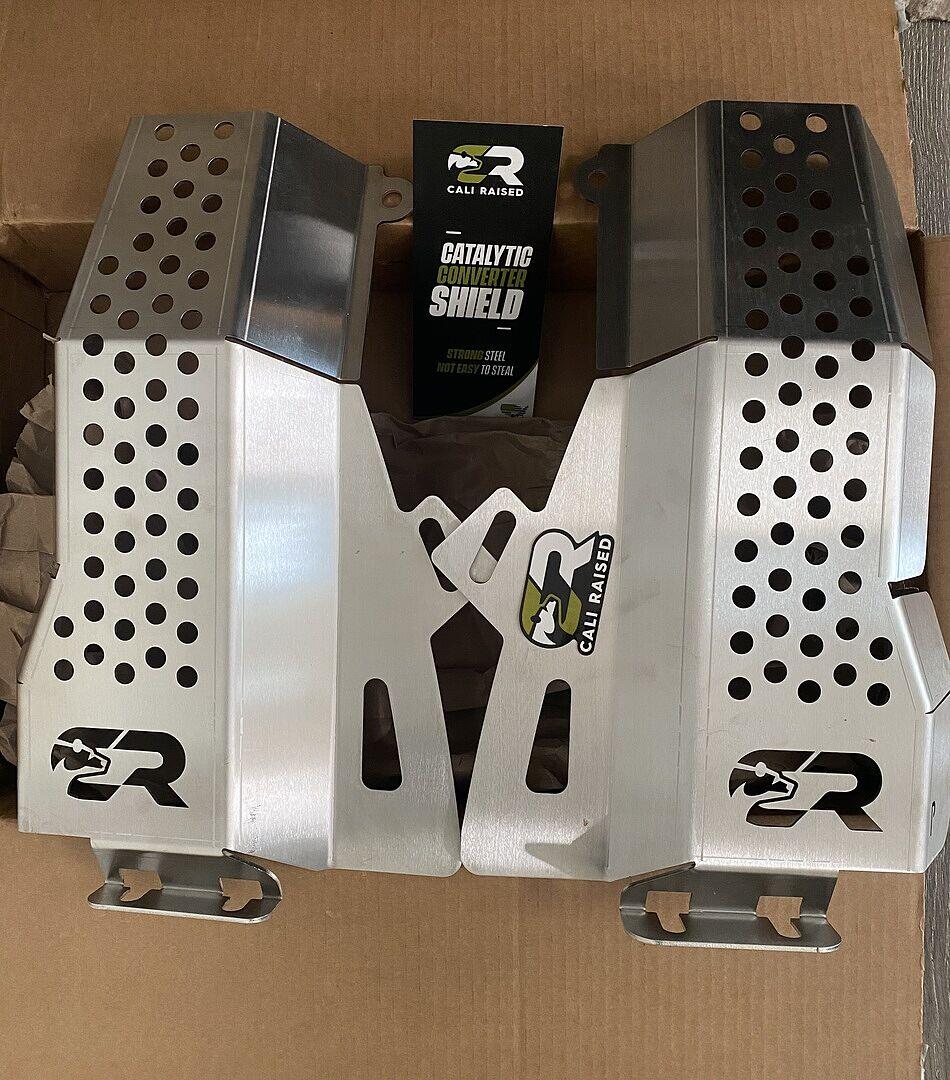

Driver-side shield and passenger-side shield
Four supplied 3/8 long bolts, four aluminum spacers, eight large washers and four lock nuts (these replace the two factory crossmember bolts on each side)
Four supplied security bolts and four small washers
Two rubber bumpers
One included security bit

Tools you supply

12 mm wrench or socket (front tube support bolts)
14 mm wrench or socket (transmission crossmember nuts)
A wrench or socket for the supplied lock nuts (the video does not give the size)
A ratchet or driver that holds the included security bit
A pick to seat the rubber bumpers
A floor jack, optional, to support the transmission crossmember while you swap bolts

Before you start

Let the exhaust cool completely before you start. Park on level ground and support the vehicle on jack stands; never work under a vehicle held up only by a jack. The transmission crossmember carries the weight of the transmission: swap its bolts one at a time, or put a jack under it first. Do not paint the shields; catalytic converters run hot. If you run an aftermarket transmission skid plate, take it off first and put it back on after.

Installation steps (driver side first)

Fit the rubber bumpers. Fit a rubber bumper to each shield. Push the small end of the bumper down through the hole in the shield's lip from the top until it locks. A pick helps.
Remove the front tube support. Take out its four factory bolts, two at the rear and two at the front, with a 12 mm wrench. Keep the bolts.
Remove the crossmember nuts. Remove the nuts from the two transmission crossmember bolts with a 14 mm wrench. Leave the bolts in for now.

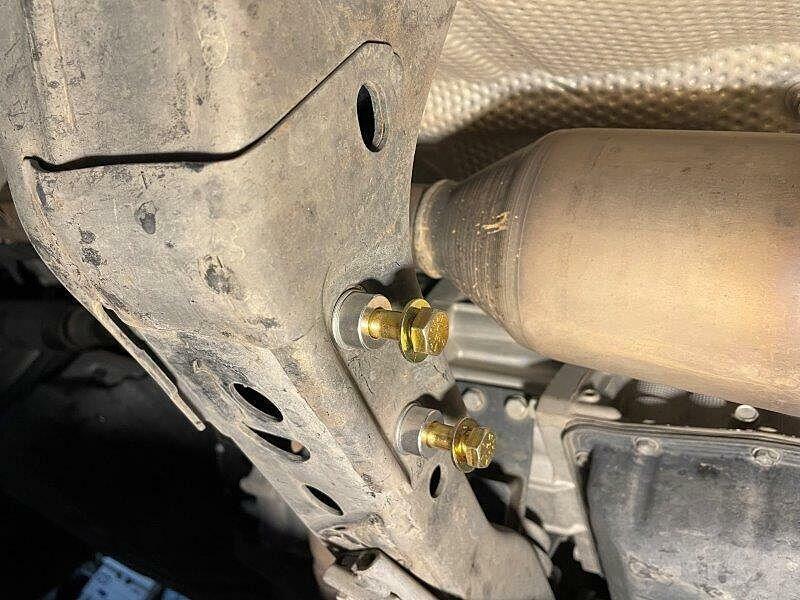

Swap the bolts one at a time. The crossmember still carries the transmission, so swap one bolt at a time, starting with the loose one, or put a jack under it. For each position: slide a large washer and then an aluminum spacer onto a supplied 3/8 long bolt, push it through from the front, then add a large washer and a lock nut on the back. Loose for now.
Set up the new bolts. Push both new bolts all the way forward. Pull each front washer up to the bolt head and push each spacer back toward the crossmember.
Hang the tube support. Hang the tube support on one bolt, loosely, and let it rest there.

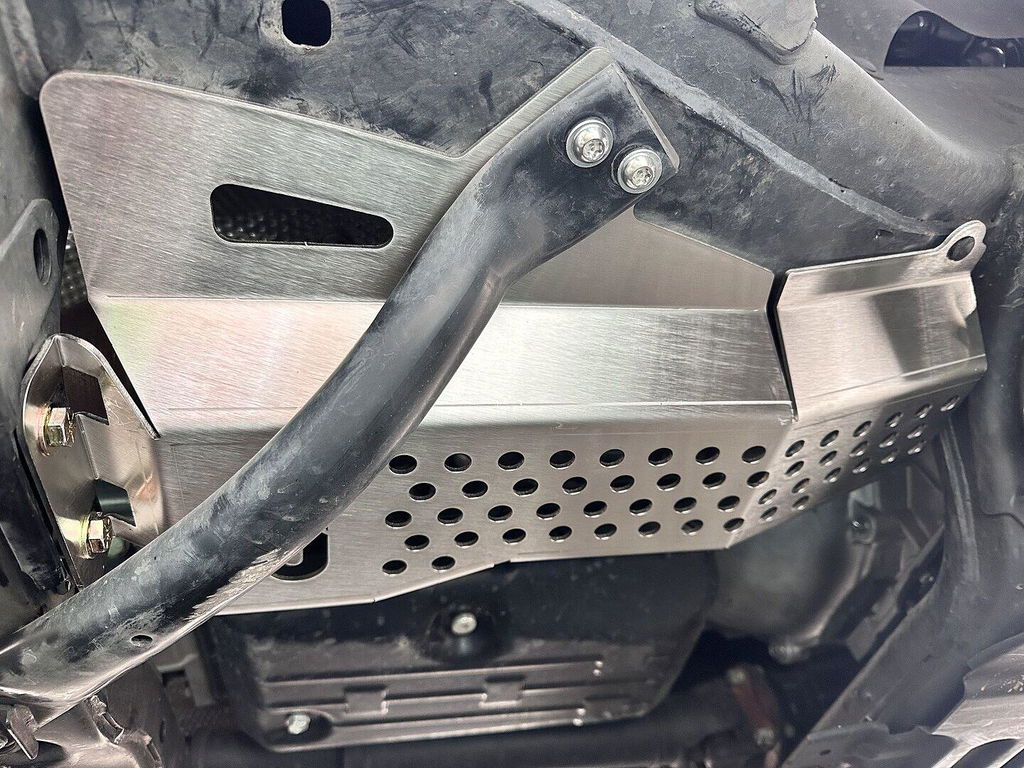

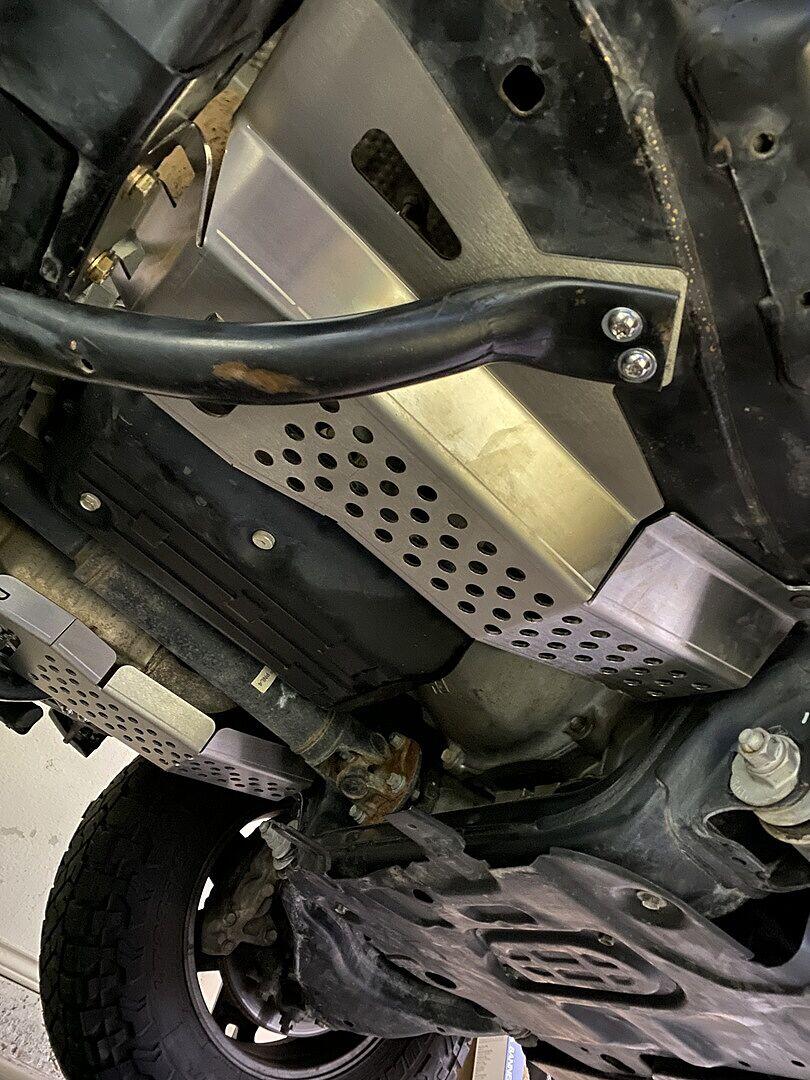

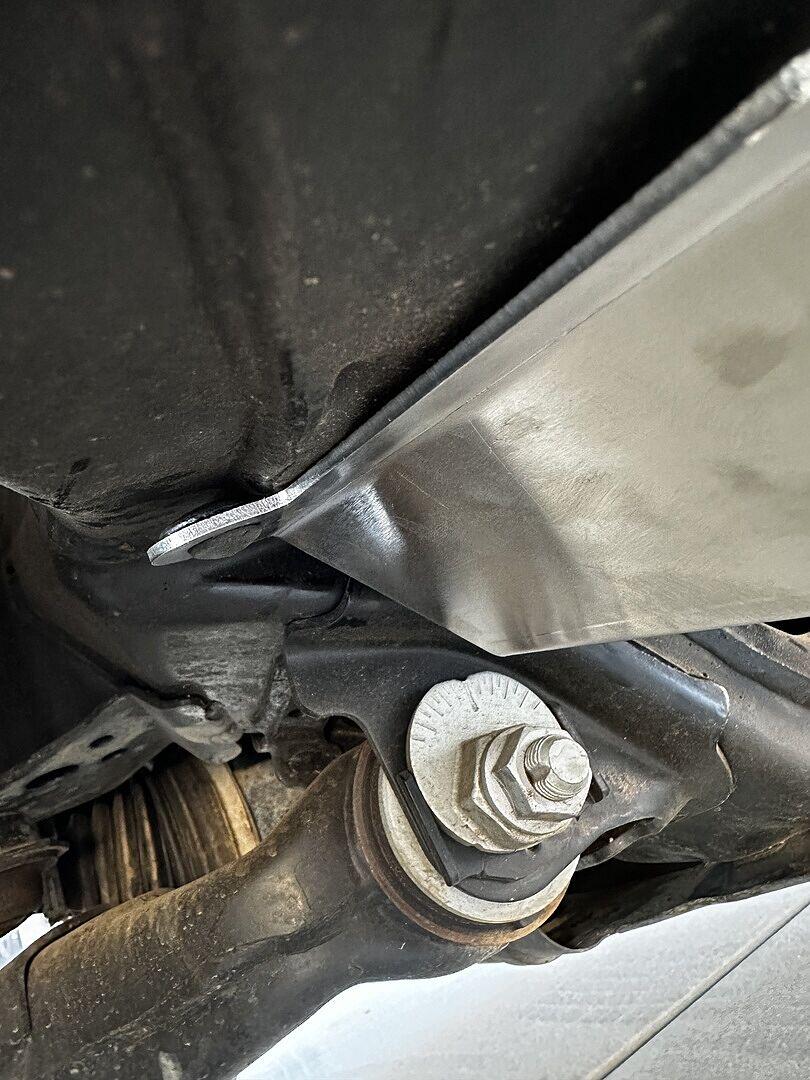

Fit the shield. Lift the front of the shield over the lower control arm bolt, then slide the rear up onto the two new bolts. The washers sit in front of the shield and the spacers behind it; check that no washer has slipped behind.

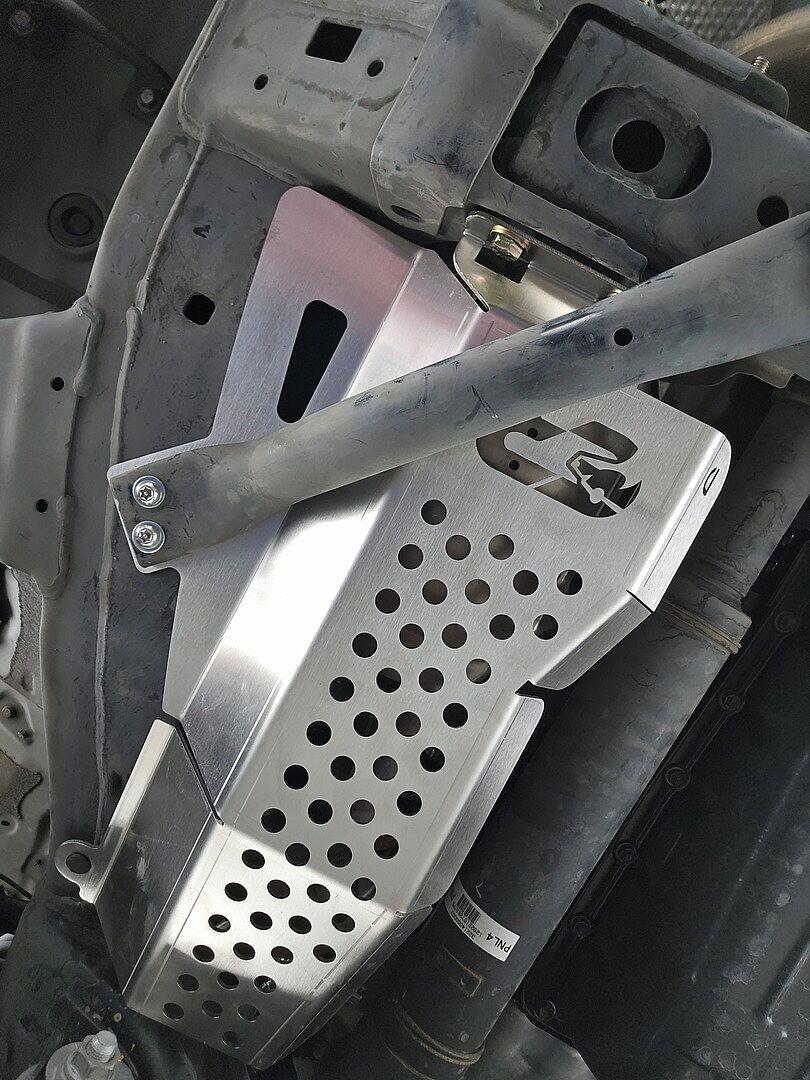

Start the security bolts. Put a small washer on each supplied security bolt. Start the first one through the front end of the tube support and the shield tab, into the frame, with the included security bit. Start the second security bolt loosely, then the second factory tube-support bolt.
Tighten in this order. Crossmember lock nuts first; this pulls the shield into position. Then the four tube-support bolts. Then the rear bolts and the security bolts with the included bit. Do not over-tighten. If the hardware will not seat the way it should, stop and email support before you force it.
Repeat on the passenger side. The passenger side is exactly the same. Repeat steps 2 to 9 with the passenger-side shield.

Check your work

Both shields sit flat and tight.
All four new crossmember lock nuts are tight.
Both tube supports are back on, with all four bolts each.
All four security bolts are seated; neither shield moves when pulled.

Keep the included security bit safe; it is what takes the shields back off.

Need help?

If the hardware will not seat correctly, stop before forcing it and contact support@caliraisedled.com.

Instructions based on the Cali Raised LED CR3896 installation guide, Rev B, September 24, 2026.
