PRO-Series LED Tail Lights Fits 2014-2021 Toyota Tundra

These Toyota Tundra PRO-series LED tail lights will fit the following models:

14-20 Toyota Tundra

Housing

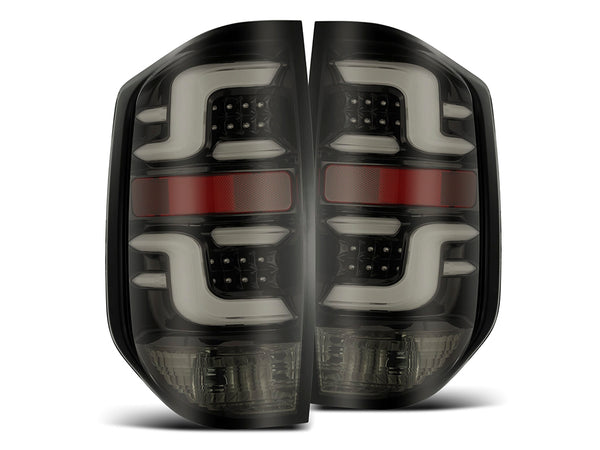

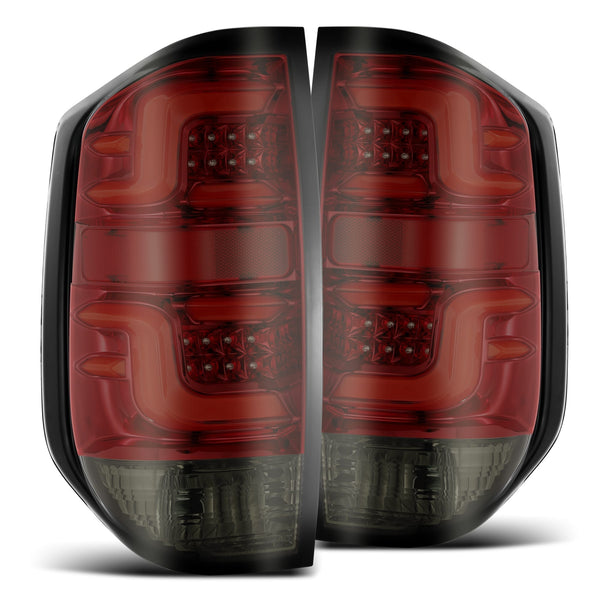

Our Toyota Tundra LED taillights come with light smoke lenses with either red and clear housing or jet black housing. The red clear housing gives your truck a stock housing look and matches with all exterior colors. On the other hand, the jet black housing gives your truck gives you a more sporty look. All our red clear housing LED taillights are composed of a red LED tube, while the jet black housing LED taillights are composed of a white LED tube.

Lens

Our Toyota Tundra LED taillights are made of polycarbonate plastic lenses. We also apply a layer of coating to protect the lens against yellowing and oxidation.

SAE/DOT Compliance

Our Toyota Tundra LED taillights are with OE quality and are compliant with SAE and DOT regulations. We inspect every detail of the lights to make sure we are satisfied and so are our customers.

NOTE: This is not a Cali Raised LED manufactured product, this is from a third-party distributor. This product will be shipped directly from them. This product is also subject to the Refunds and Returns policy for third-party products and/or partner products.

Read More

$302.50

Jet Black Red Smoke
How to wire the DRL Harness?
Design
INSTALLATION
  • **07-13 Tundra ( all model )**
  • **05-11 Tacoma ( all model )**
  • **12-15 Tacoma ( all model )**
  • **16-21 Tacoma ( SR5 model )**
  • **10-13 4 Runner ( all model )**

      • Wiring the DRL harness

      One of the key features of our headlights is to have the ability to run the DRL strips in the day without having to activate any of your lighting controls manually. The way to do this is by wiring the harness that is included with your headlights.

      Depending on the headlights feature you get, there will be two types of DRL harness. One that comes with a yellow wire and one that’s without the yellow wire. If your DRL harness did not comes with any yellow wire , just leave the connection on the headlight unplug . For DRL harness that comes with a yellow wire , connect that to the nearest headlight, you will only need to connect to one headlight and leave the yellow connector on the other headlight unplug.

      Wiring diagram for DRL harness without Activation light and sequential signal

      Wiring diagram for DRL harness with Activation light and sequential signal

      The function of the DRL harness is to allow the DRL with different intensity during daytime and night time. Basically, the DRL harness will supply extra power to the DRL for brighter output during daytime, and when the parking light is on, the DRL will be at reduced intensity. With the optional harness installed, the headlights will function as follows with most vehicles:

      Ignition/Engine ON – DRL at High intensity
      Parking Light ON– DRL at reduced intensity
      – amber side marker
      Low Beam ON– DRL at reduced Intensity
      – Amber side marker
      – Low beam on
      High Beam ON– DRL at reduced Intensity
      – Amber side marker
      – Low beam on
      – High beam on
      Automatic Function– Will function as normal

      Tapping the grey wire to the ignition
      With the grey wire, you will need to tap it into a switched fuse under the hood. We recommend that you use a fuse tap similar to the picture below.

      Suggest fuse locations
      2009-2014 Ford F150 – #76
      2015-2017 Ford F150 – #97
      2018-2019 Ford F150 – #10 #36
      2017-2019 Ford Super Duty – #35
      2016-2020 Ford Ranger – #24
      2009-2019 Ram – #F66 #M6 #M19

      2015-2019 Chevrolet Silverado 2500HD/3500HD – #39
      2007-2013 Toyota Tundra IGN fuse
      2014-2020 Toyota Tundra IGN fuse
      2014-2020 Toyota 4Runner INJ fuse

These Toyota Tundra LED taillights are with two LED tubes as parking light, with red LED in between the light tubes as a brake light and standard blinking turn signal light.   The reverse light is located at the bottom and you can apply your stock halogen light bulbs.
