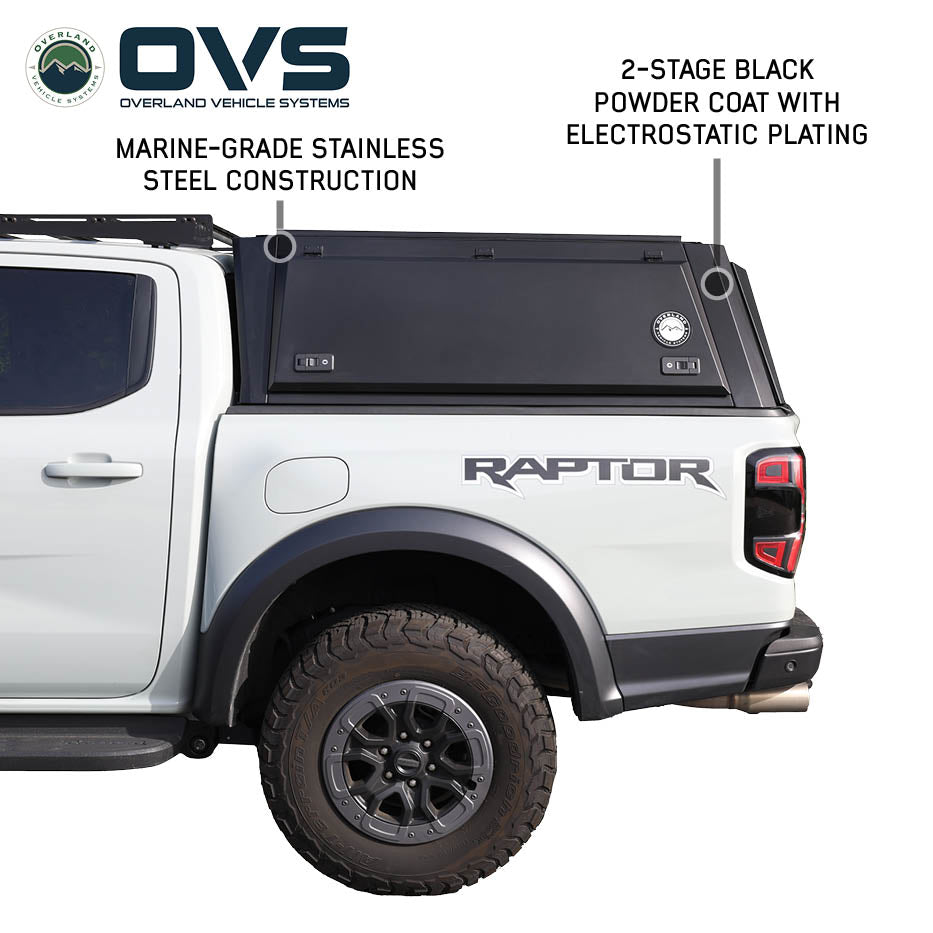

- Marine-grade stainless steel: 16-gauge stainless construction for strength and corrosion resistance.
- Tough finish: E-coat (electrostatic plating) under a two-stage textured black powder coat.

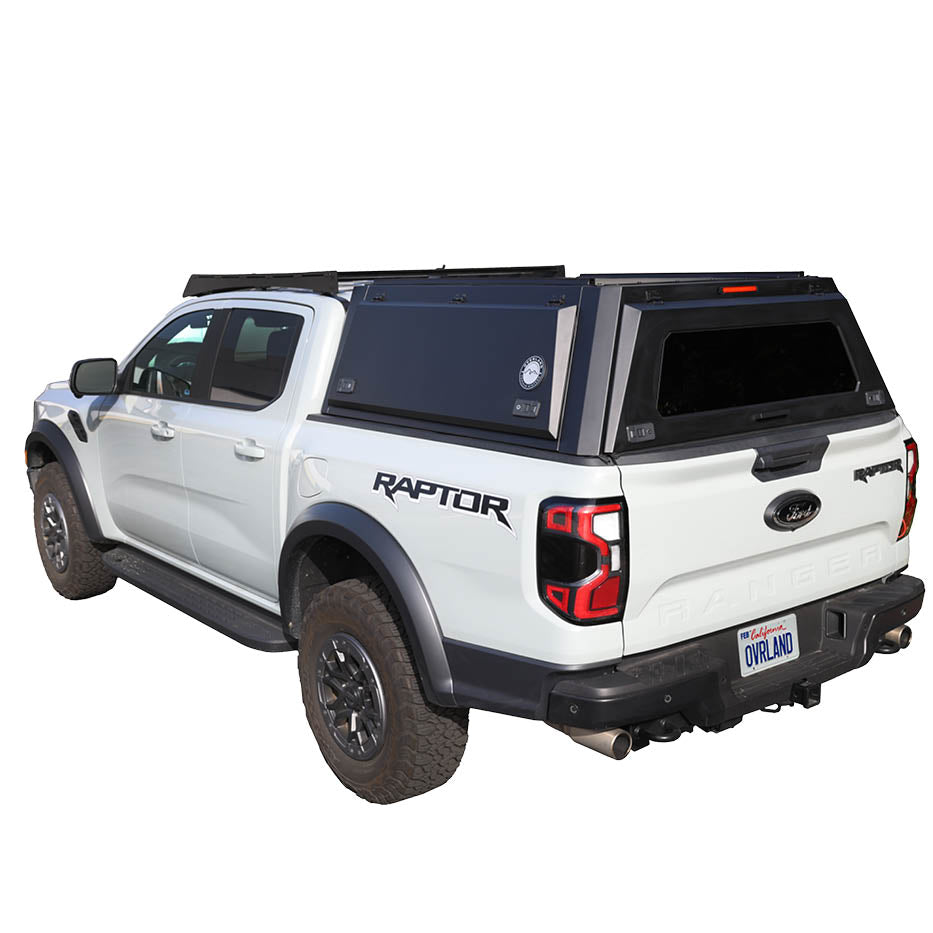

- Built for the Ranger: OVS True-Fit design for the 2024-2025 Ford Ranger 5 ft bed (not for 2026+).
- 5-piece modular design: Ships and assembles in sections for easier handling and install.

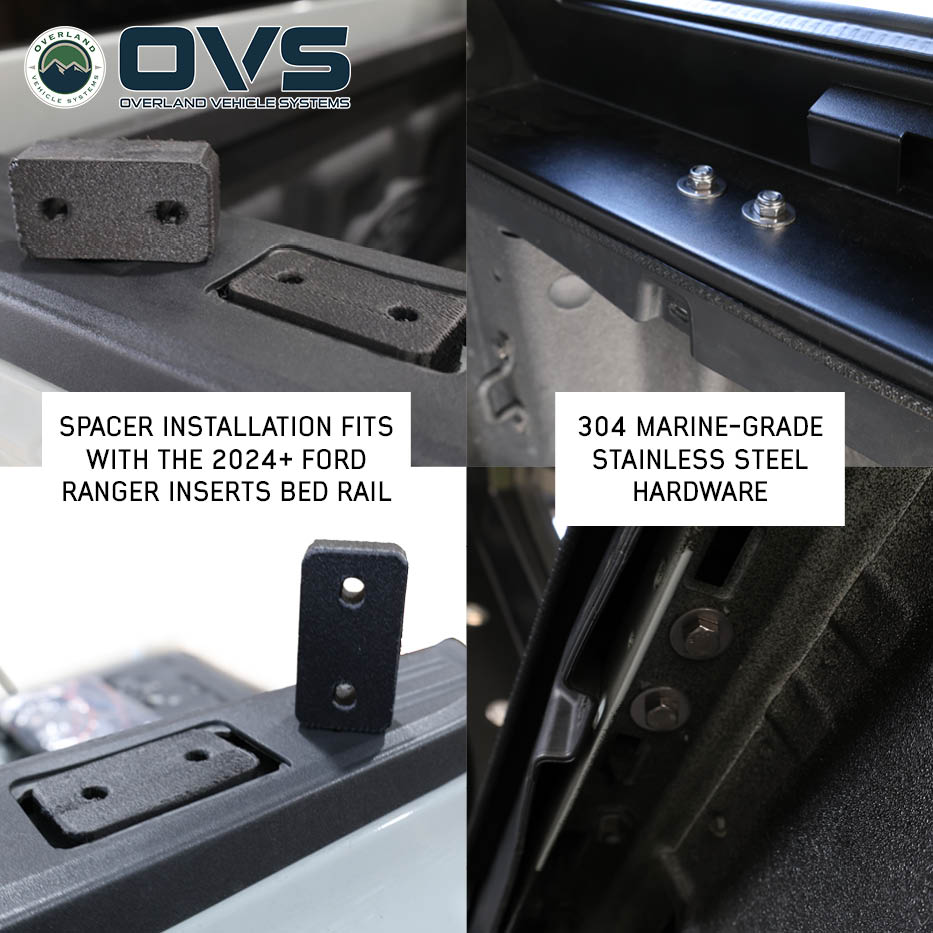

- No-drill clamping system: Clamps to the bed rails with no drilling needed to mount the cap.

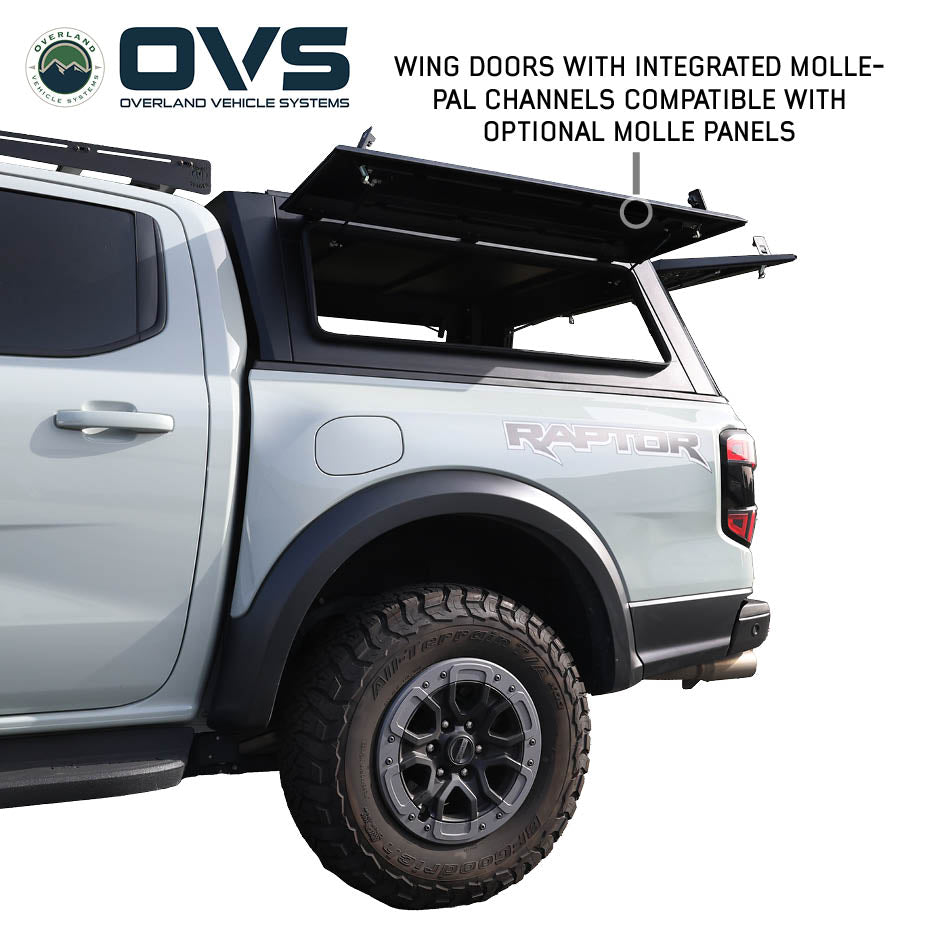

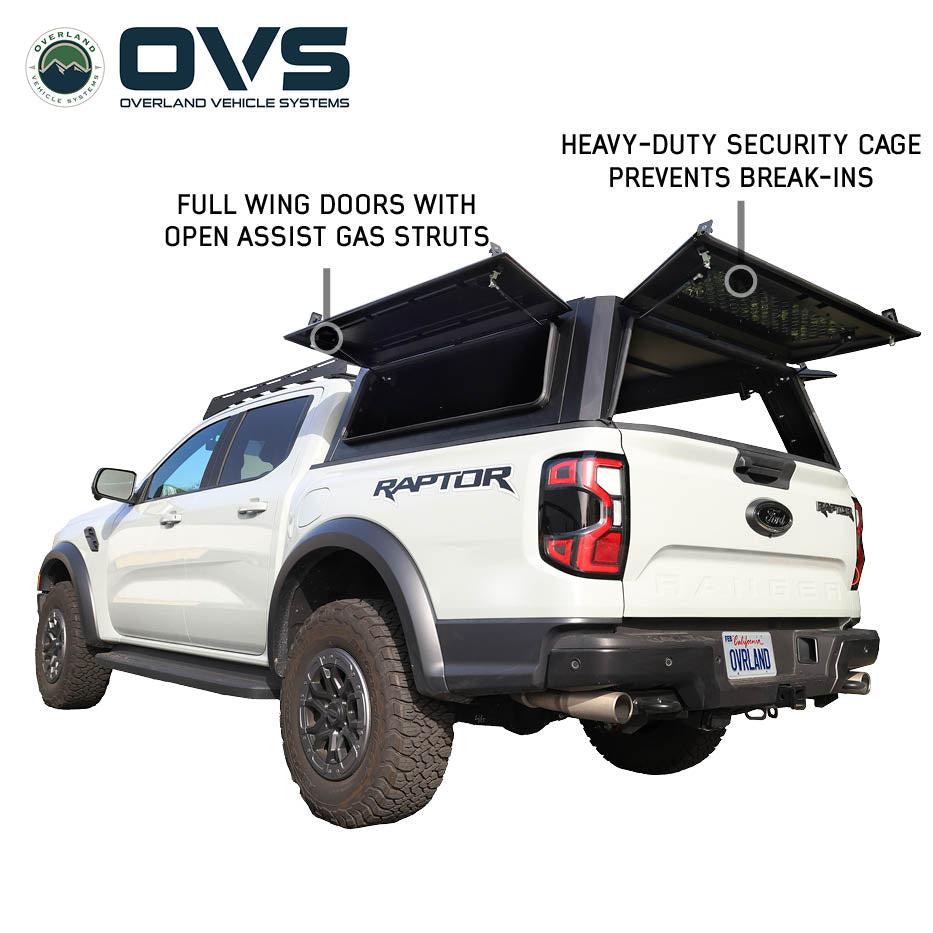

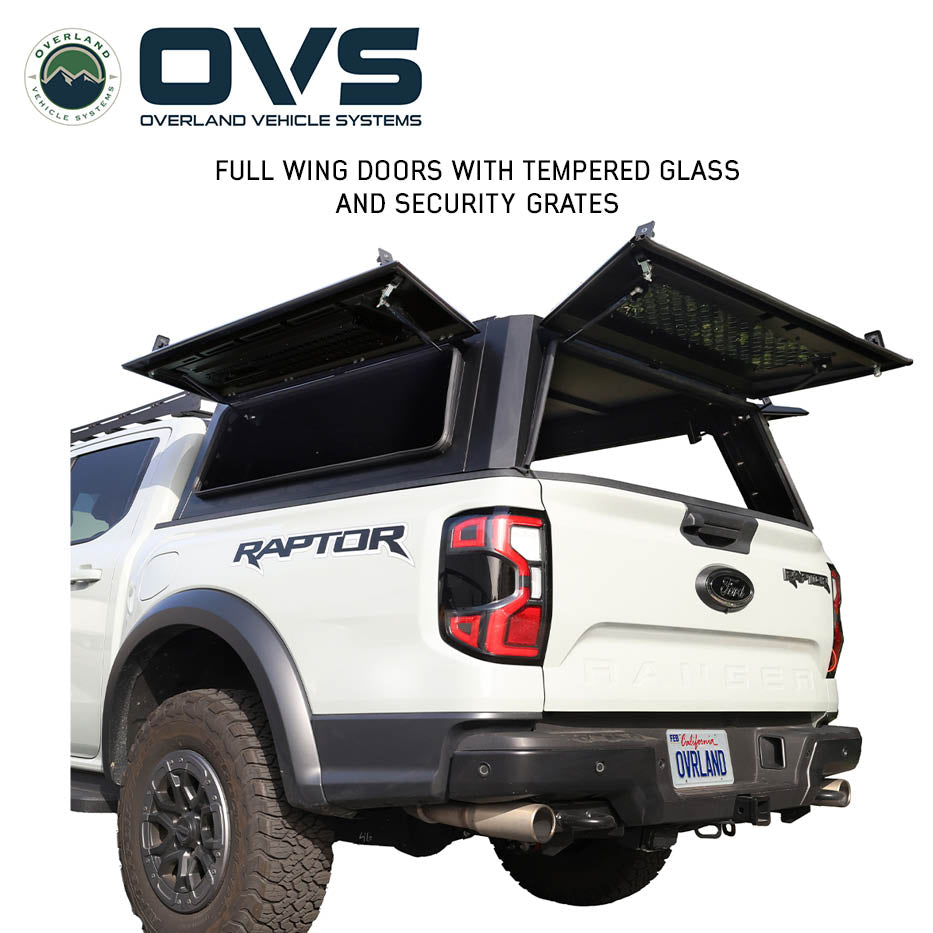

- Full wing doors: Gullwing side doors on high-pressure gas struts and heavy-duty hinges with nylock nuts give access to the whole bed from either side. Each door holds about 15 lb of mounted accessories.

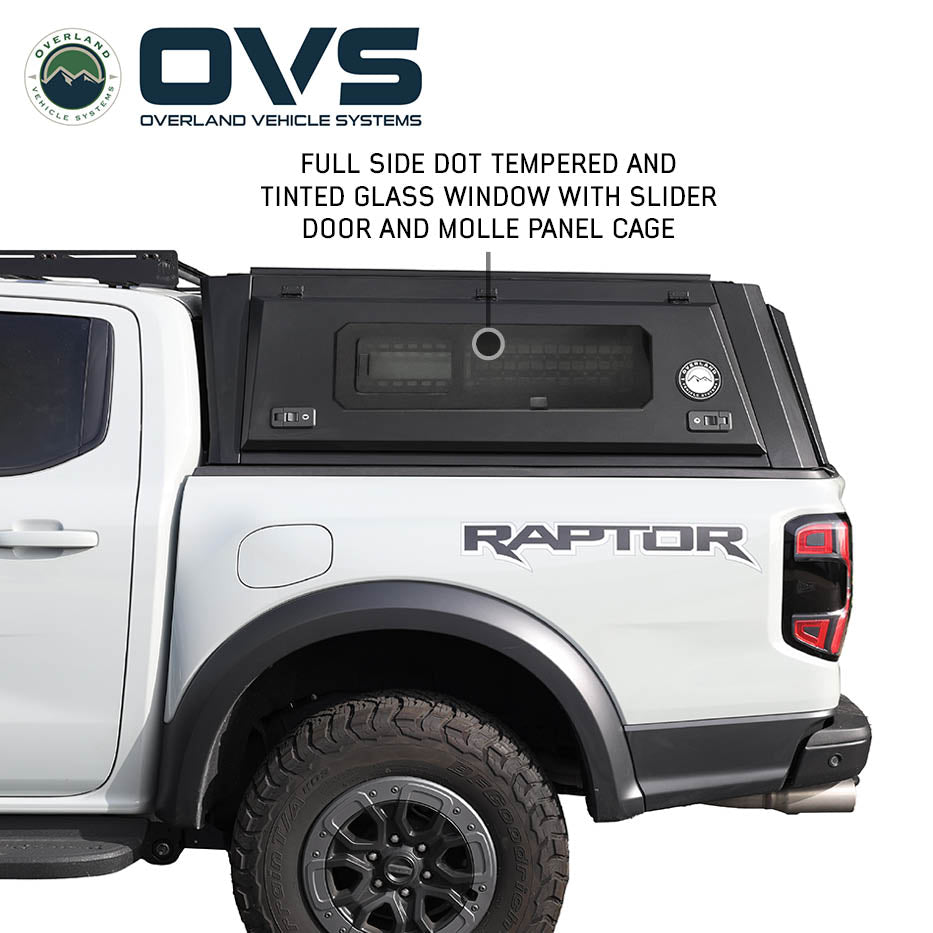

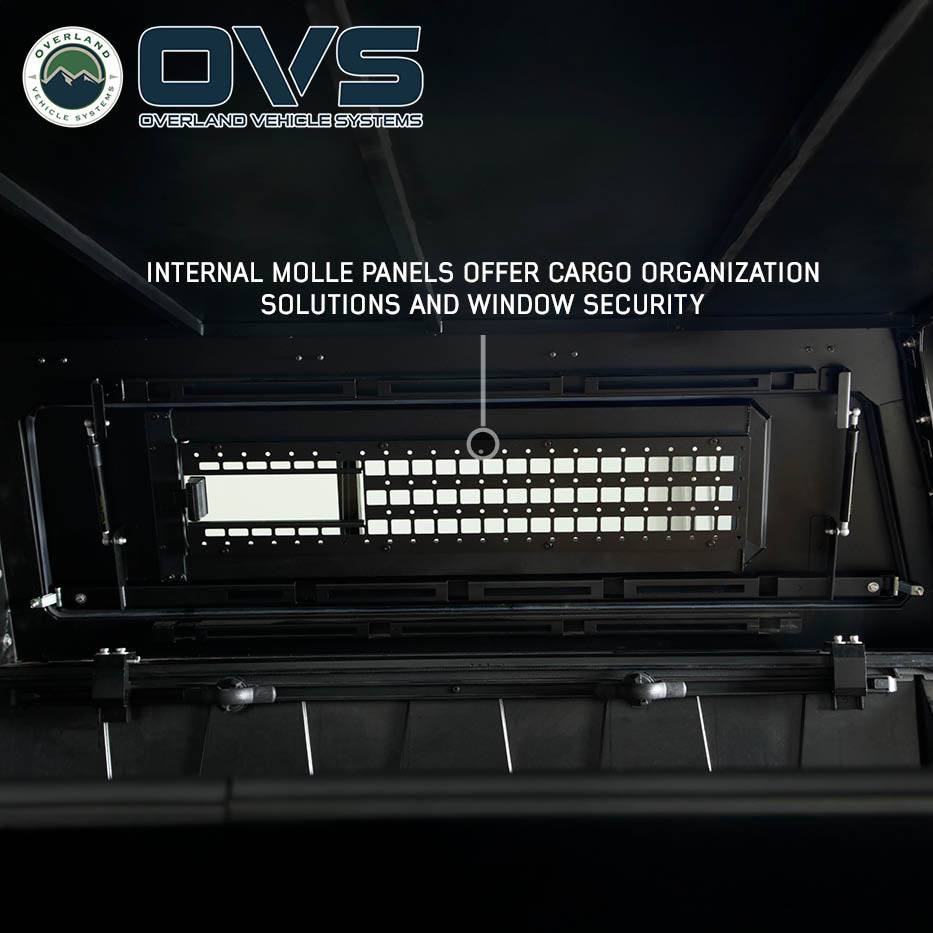

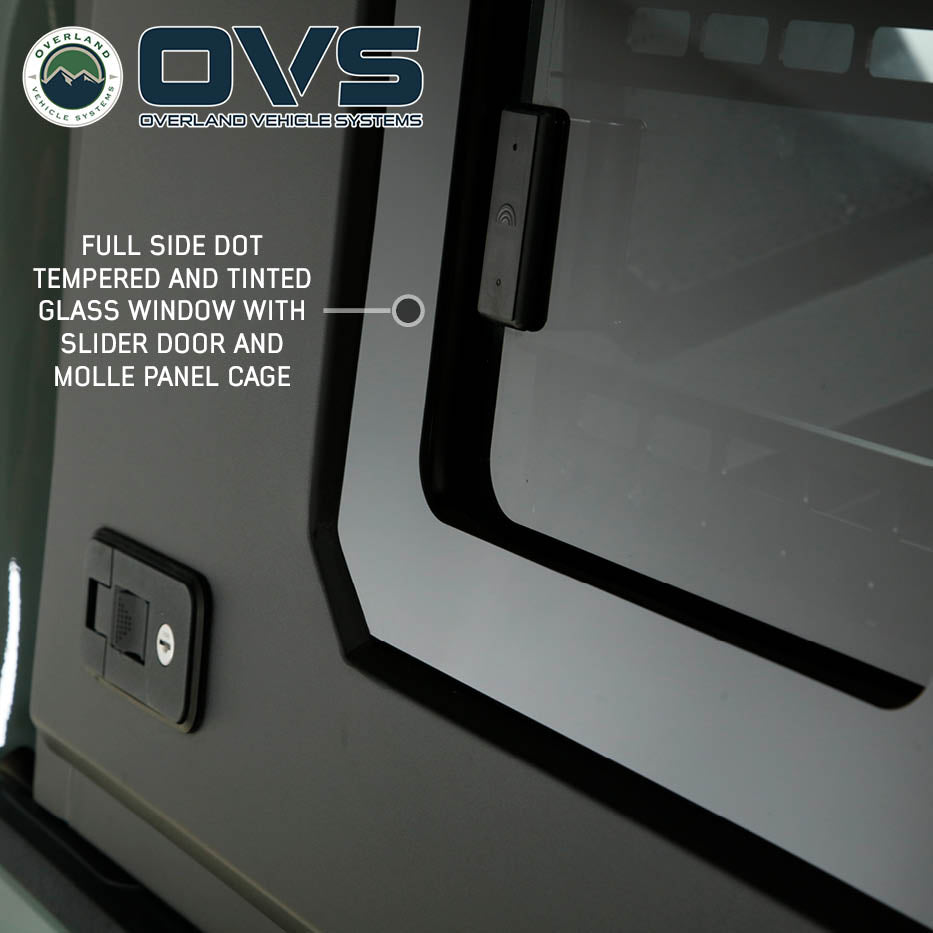

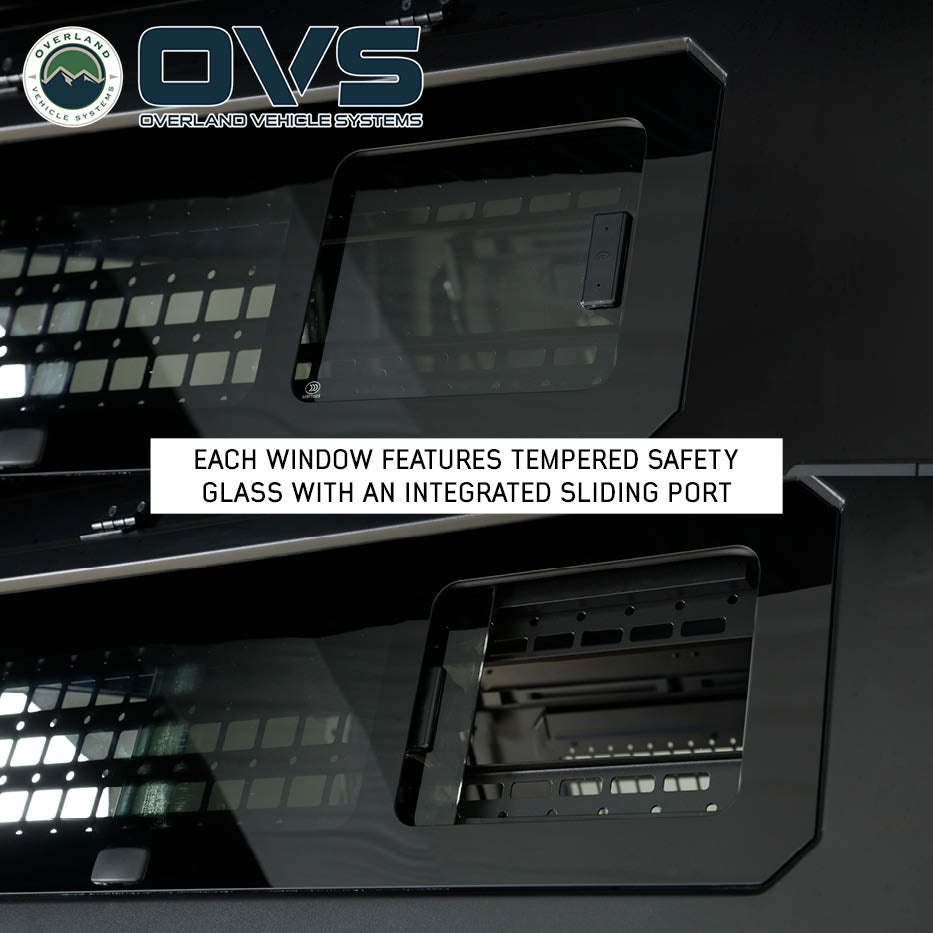

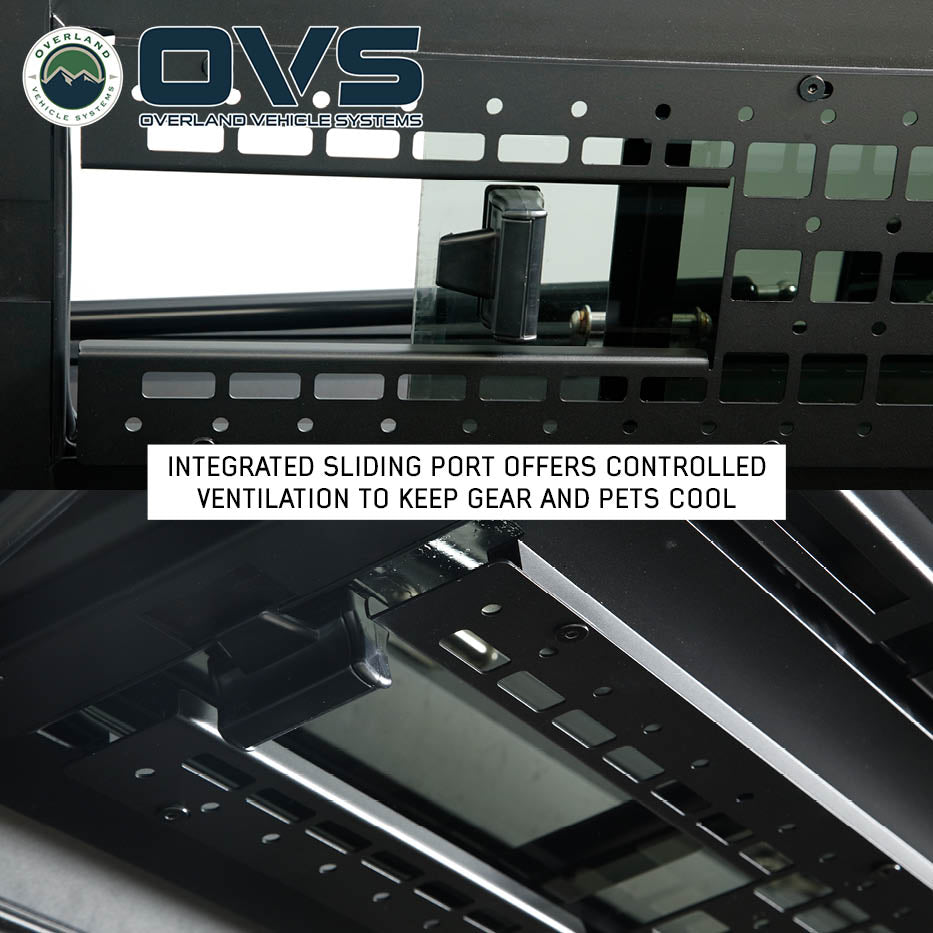

- PRO or PRO+: The PRO has solid steel wing doors. The PRO+ has windowed wing doors (tempered glass with a sliding side window) and a built-in MOLLE panel.

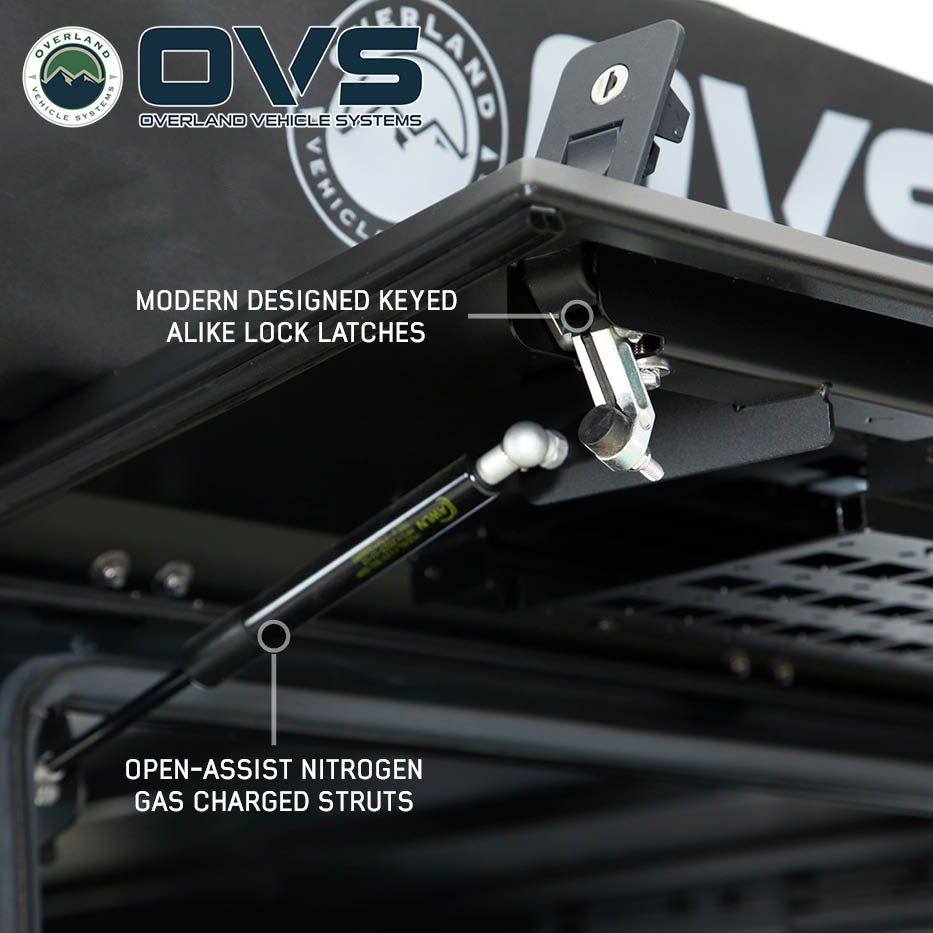

- Locking latches: Keyed-alike lockable latches with weatherproof covers.

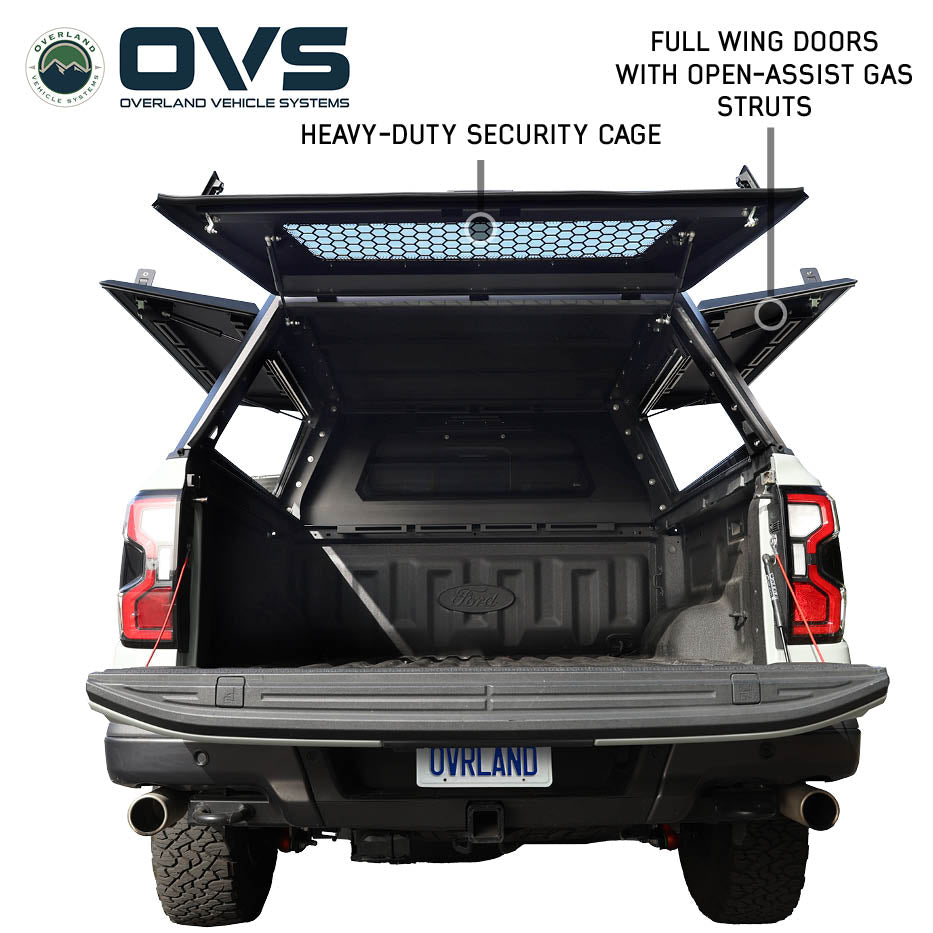

- Rear security cage: Stainless cage over the rear window.

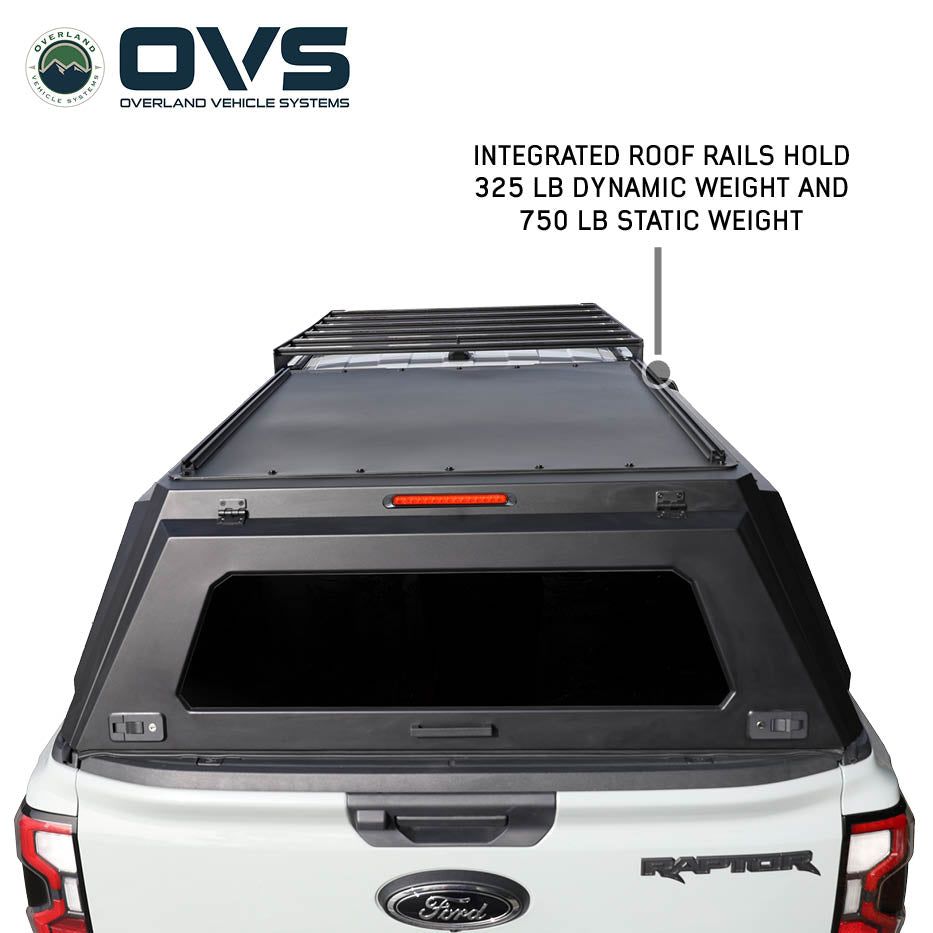

- Roof rails: Integrated rails with a 19 mm T-slot. With the optional OVS crossbars the roof is rated 325 lb dynamic and 750 lb static, for rooftop tents, awnings, bikes and gear.

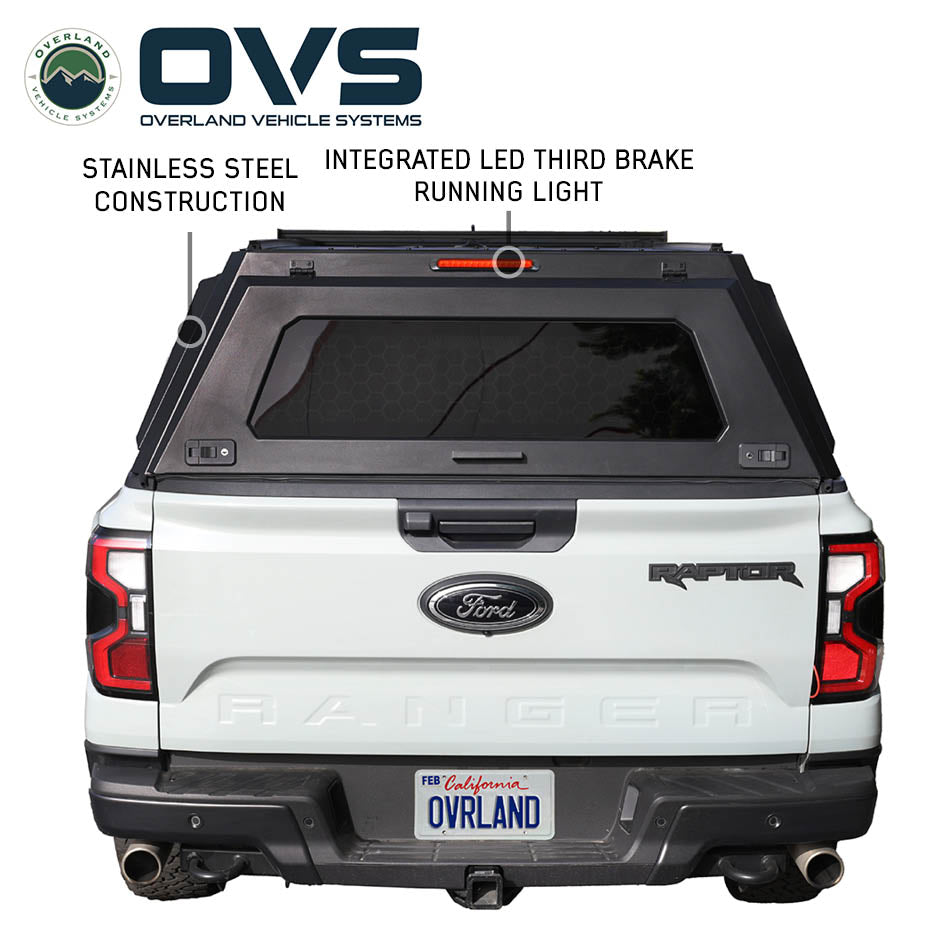

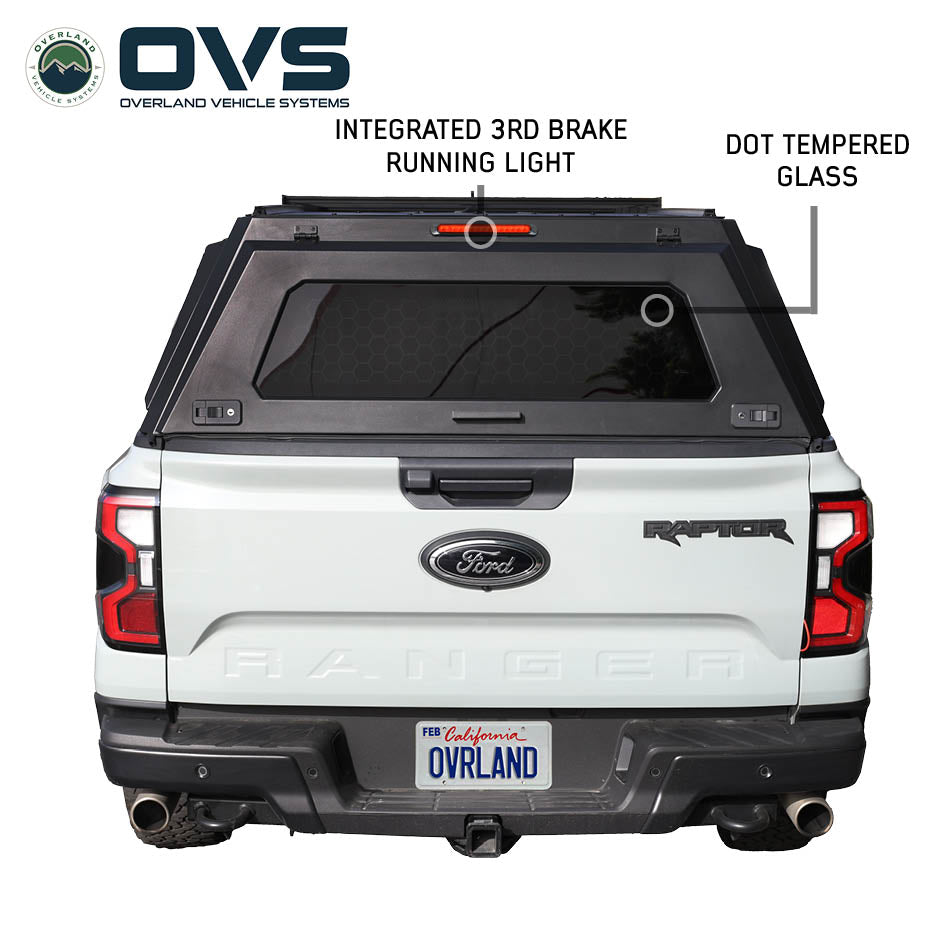

- 3rd brake light: Included, for visibility from behind.
- Ventilation: Fixed air vent on the cab-side panel helps reduce condensation and lets air escape when you close the doors.

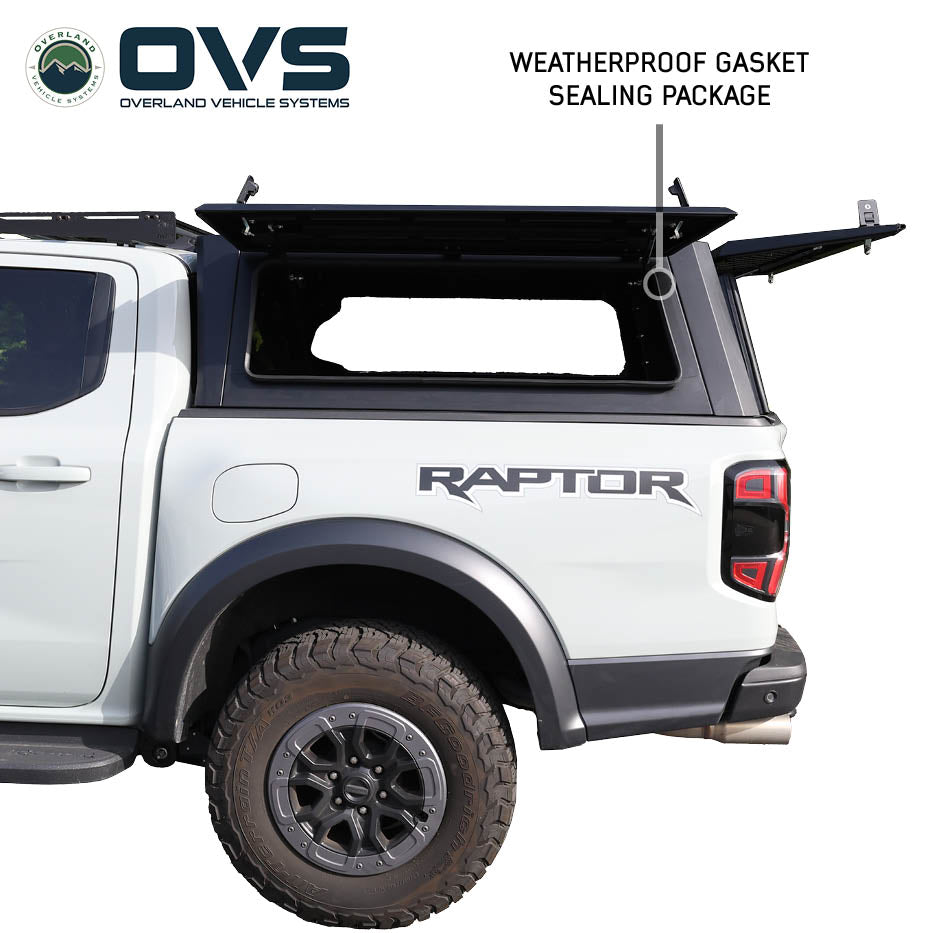

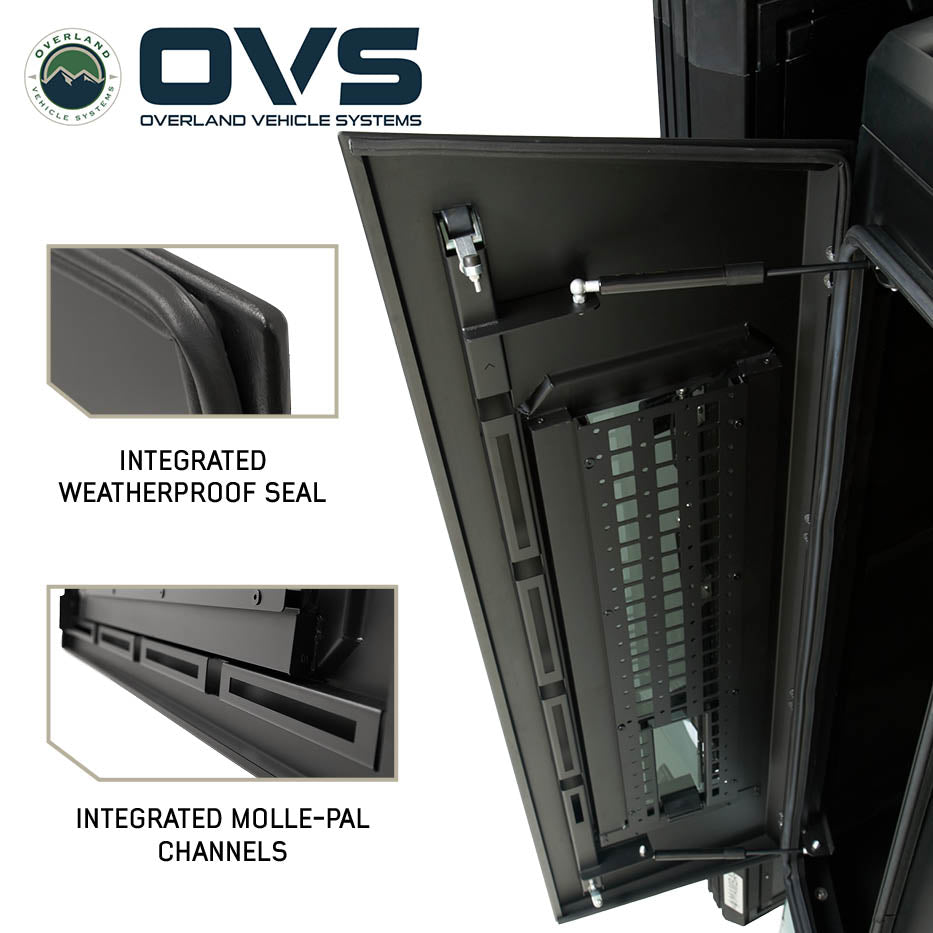

- Weather sealing: 3M bulb seal, rear hatch seal and butyl tape for the bulkhead step-down.
Key Features
Specs & Fitment
FAQ
What's Included
| Fits | 2024-2025 Ford Ranger, 5 ft bed |
| Models | PRO – Solid Wing Doors (70100024), PRO+ – Windowed Wing Doors with built-in MOLLE panel (70200024) |
| Material | Marine-grade stainless steel, 16 gauge |
| Finish | E-coat plus two-stage textured black powder coat |
| Construction | 5-piece modular, OVS True-Fit |
| Mounting | No-drill clamps on the bed rails |
| Install time | 1-2 hours (per OVS) |
| Doors | Full wing doors, gas struts, heavy-duty hinges; about 15 lb accessory load per door |
| Glass | Automotive tempered safety glass; cab-side window fixed, no pass-through |
| Roof | Integrated rails, 19 mm T-slot; 325 lb dynamic / 750 lb static with OVS crossbars |
| Lighting | 3rd brake light included |
| Warranty | OVS limited lifetime structural, 5-year finish; glass not covered |
Fitment notes (from OVS)
- Made for the 5 ft bed of the 2024-2025 Ranger.
- Does not fit 2026+ Ranger (Ford changed the bed rails and bulkhead); OVS is developing a revised version.
- Does not fit the 2019-2023 Ranger, which uses a different OVS cap.
- Accessories that interfere with the installation must be removed before installing.
- "No-drill" refers to the clamps on the bed rails. Some trucks need one small hole drilled to wire the 3rd brake light; see the OVS instructions.
- No truck bed is fully waterproof. The seals greatly reduce water and dust, but some water may still get in, most often around the tailgate.
- The cap cannot be opened or locked from inside the bed.
Installation instructions: OVS Expedition Cap Instructions (PDF) · Dimensions: OVS Expedition Dimensions (PDF)
Which Ford Ranger bed does this truck cap fit?
It fits 2024-2025 Ford Ranger trucks with the 5 ft bed. It does not fit the 2019-2023 Ranger (OVS makes a separate cap for that generation) or the 2026 and newer Ranger.
Will it fit a 2026 or newer Ford Ranger?
No. OVS says Ford changed the bed rails and front bulkhead on the 2026+ Ranger, so this Expedition cap fits 2024-2025 Rangers only. OVS says a revised 2026+ version is in development. Contact us if you want to hear when it is available.
What is the difference between the PRO and PRO+?
The PRO has solid steel wing doors with no side windows. The PRO+ has windowed wing doors (tempered glass with a sliding side window) and a built-in MOLLE panel; because of that panel, OVS's add-on door and side-frame MOLLE panels do not fit the PRO+. Everything else is shared: front and rear glass windows, construction, finish, latches, rear security cage, roof rails, seals and the 3rd brake light. On this truck the PRO+ is $500 more at regular price, and currently $445 more at sale prices.
Do I have to drill my Ranger to install it?
No drilling is needed to mount the cap; it clamps to the bed rails. The included 3rd brake light has to be wired, and OVS notes some trucks need one small hole drilled for that wire. Follow the OVS installation instructions for your truck.
How long does installation take?
OVS rates the install at 1-2 hours. The cap is a 5-piece modular design that assembles on the truck.
Does it work with a tonneau cover or bed rail accessories?
OVS does not list tonneau cover or bed rail accessory compatibility. The cap clamps directly to the bed rails, and OVS says any accessories that interfere with the installation must be removed first. If you are unsure about a specific accessory, contact us before ordering.
How does the truck cap ship?
It is a large freight item that ships direct from Overland Vehicle Systems. The current lead time is shown with each model option.
OVS does not publish a formal packing list. Based on OVS's product information, the cap comes with:
- Expedition truck cap (5-piece modular shell) for the 5 ft Ranger bed
- No-drill bed rail clamps
- Integrated roof rails (19 mm T-slot)
- 3rd brake light
- 3M single-bulb seal for the bed rails and bulkhead
- Rear hatch bulb seal
- 2 pieces of butyl tape for the bulkhead step-down
- Rear window security cage
- Keyed-alike locking latches
Sold separately: crossbars, add-on MOLLE panels (these do not fit the PRO+, which has a built-in MOLLE panel) and LED lighting kits.
Installation
Installation guide for OVS Expedition Truck Cap for 2024-2025 Ford Ranger 5 ft Bed.
