Cali Raised · Ships from our Texas Facility

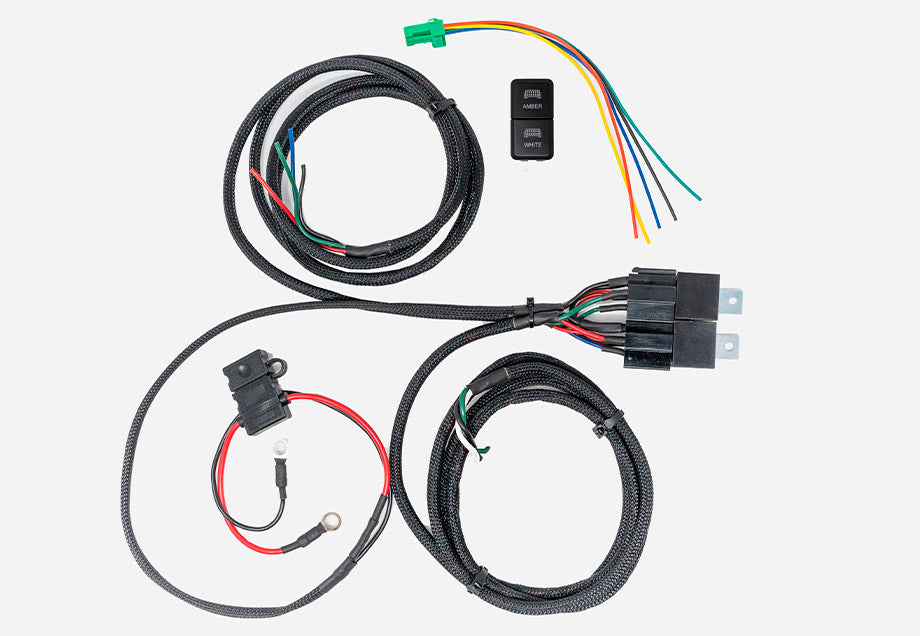

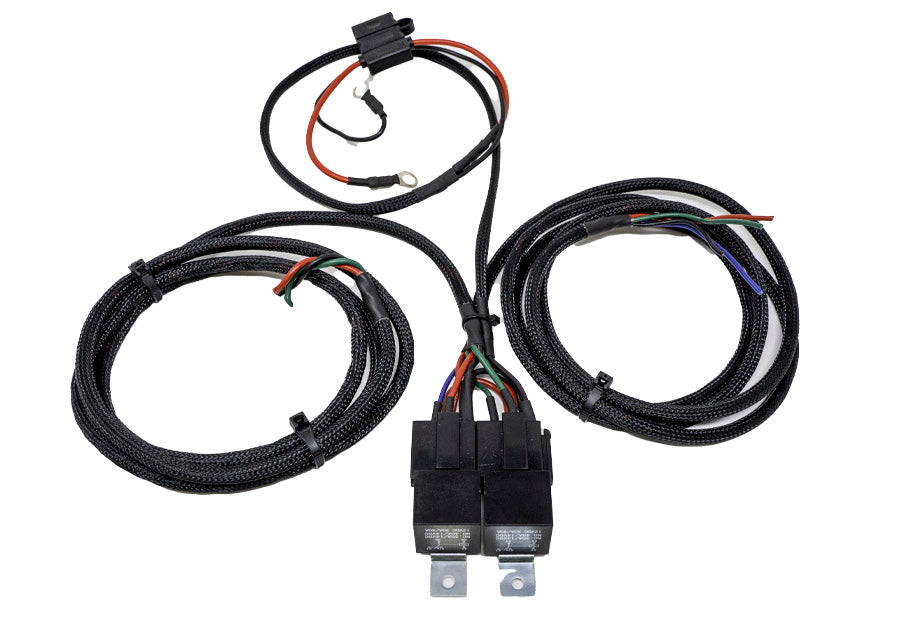

Wiring Harness for Dual Function Light Bar

Time to get everything connected with our one and only Dual Function custom wiring harness. No more tricky wiring jobs for the Cali Raised LED Dual Function Lightbar!

With fireproof cable conduit and a high-quality backlit rocker switch, it is designed to last for many years even in rough conditions

Features:

Made for the Dual Function Light Bar.

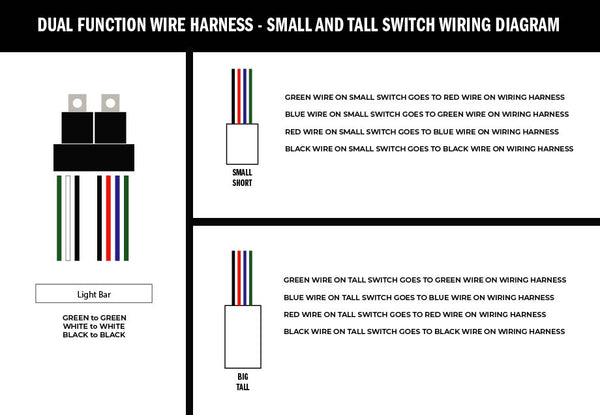

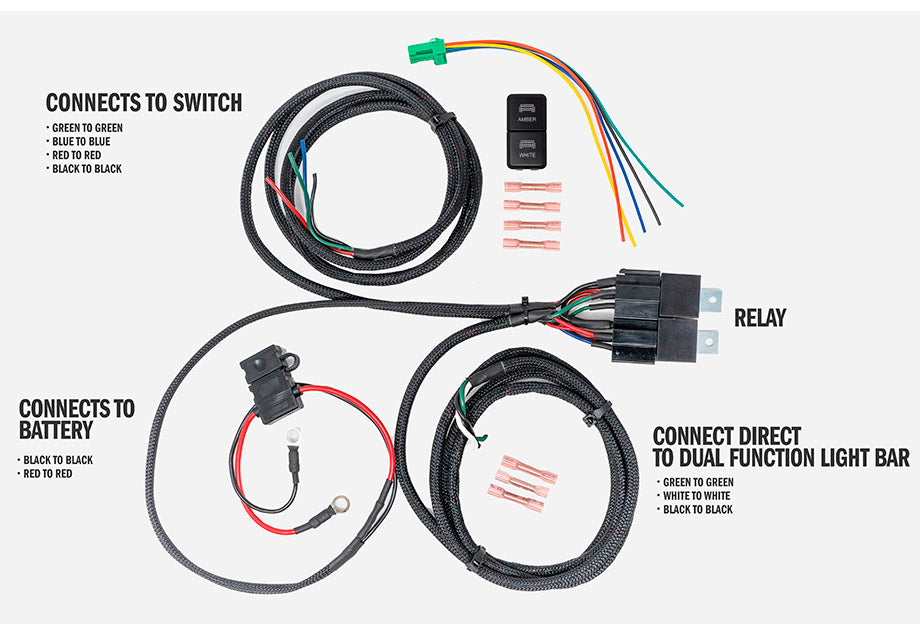

Easy Color Matching Wiring

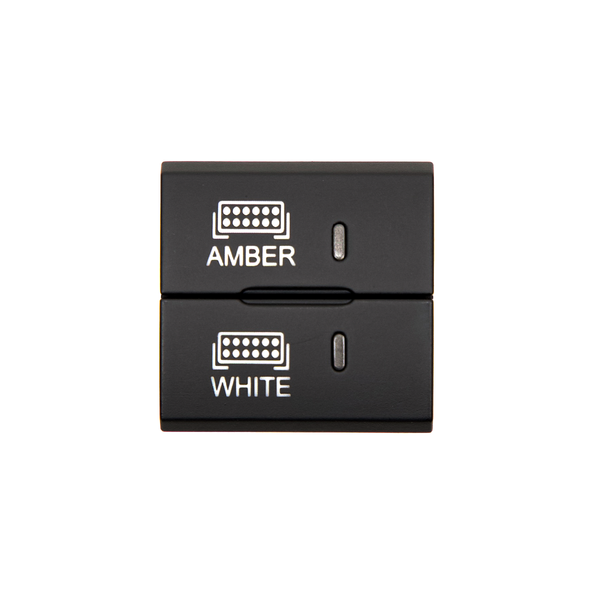

Connects easily with Amber and White Switch

Includes:

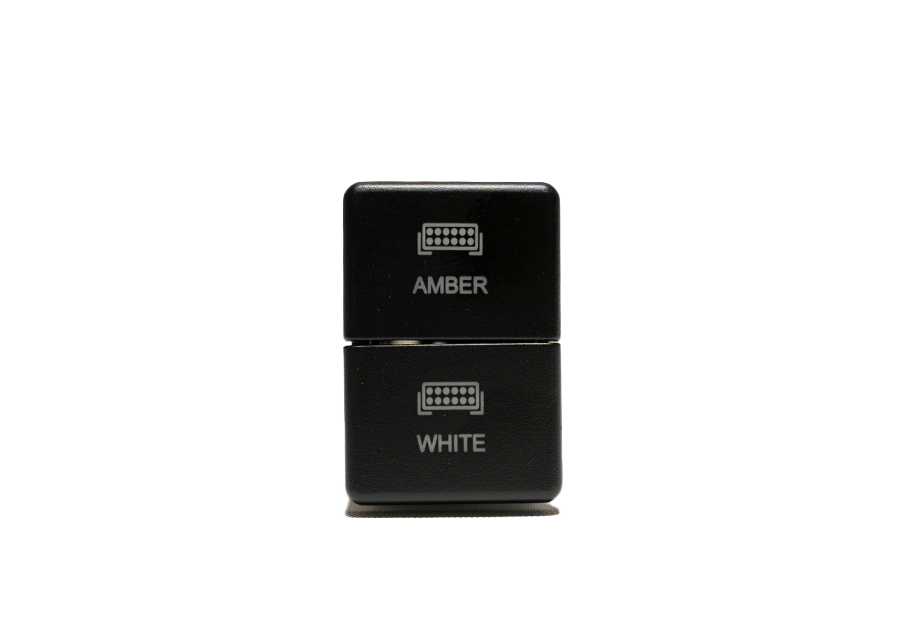

Option for Tall, Short or Square Switch
10 Perma-Seal Butt Connectors

Frequently Asked Questions

What is this wiring harness used for?

This relay wiring harness connects your LED lights (light bars, pods, ditch lights) directly to the battery with a relay and fuse for protection, ensuring proper power delivery.

What lights is this harness compatible with?

This harness works with most Cali Raised LED bars, pods, and auxiliary lighting. Check the product listing for specific amperage and connector compatibility.

Does this harness include a switch?

This harness includes an inline switch. For a factory dash switch, add a compatible Toyota OEM-style switch.

Is this a dual-output or single-output harness?

This is a dual leg harness, designed to power two independent lights or two sets of pods simultaneously.

How long is the harness?

Check the product listing for the harness cable length.

Is this waterproof?

Yes. The connectors and relay housing are weather-resistant for off-road use.

Recently Viewed

5 stars: 8 (73%)
4 stars: 3 (27%)
3 stars: 0 (0%)
2 stars: 0 (0%)
1 star: 0 (0%)

So easy

Had some issues with the first version wiring harness but WOW, they sent me an updated version for my ExtremeLED lights. Fantastic service and so helpful.

I like the harness and

I like the harness and it works great, in my case it was just too much extra wire to try and hide. I understand there is different places to install light bars so the long length of wire is needed, but maybe if there was a shorter version that would be awesome. No issues just wish there was a shorter version.

Looked for a legit wire

Looked for a legit wire harness for UPTOP over land dual functioning rock lights and these guys delivered at a very affordable price! When UPTOP had the harness available they wanted $250 for it….

Good Quality

Good Quality

Works great

Works great

This is a well built

This is a well built wire harness especially if you are running amber and white lights. Dollar for dollar if you went and ordered or bought all the materials you would spend more than what Cali is charging.

Honestly really nice harness and

Honestly really nice harness and switch! It was an EZ install. The instructions don't hold your hand So I ended up having to wire for the small switch colours, even though I had the tall 2 button switch. The yellow wire can be left dangling and the switch will still light up when turned on. or t'd off with another switch if you want the switch to light up with the ignition or lowbeams. Overall worth the $$$

Good, but could be better

Good quality wiring. The switch fits well. Wiring instructions leave a lot to be desired. A simple pin out diagram of switch would be much simpler versus matching colors that conflicts itself. It is even less helpful if mounting another manufacturer's light bar.

Fast easy shipping. Product worked

Fast easy shipping. Product worked as expected

Need better wiring instructions

Need to dumb down the wiring instructions. Also, can someone contact me?

Great harness

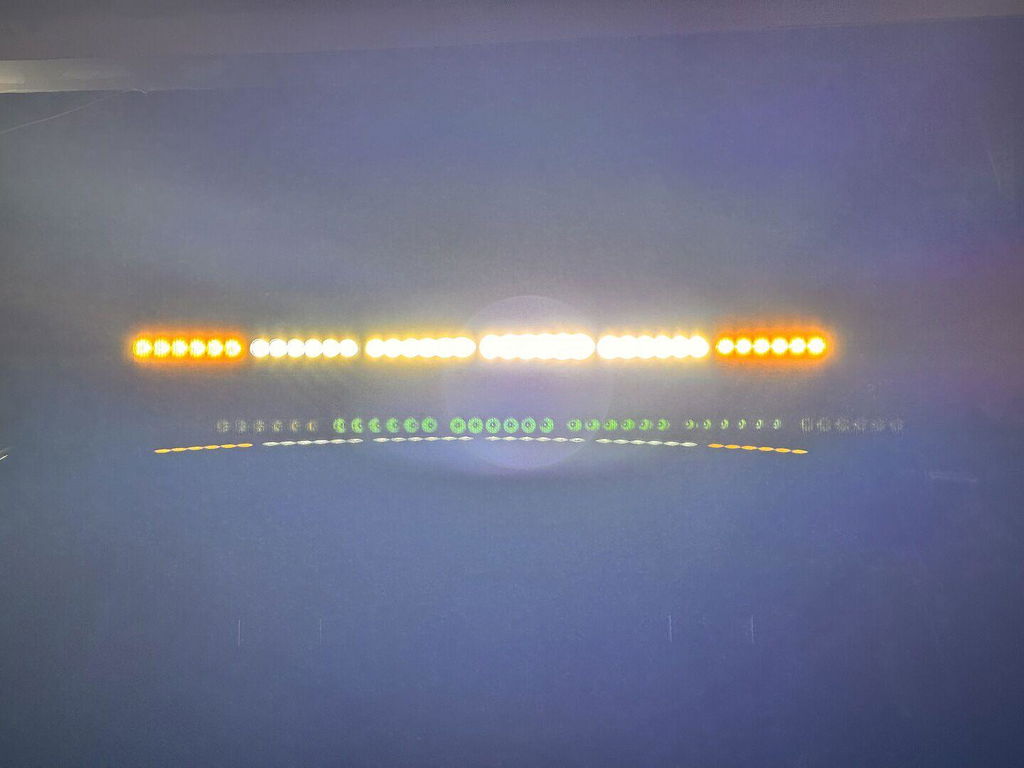

The dual function is great and it was an easy install.
