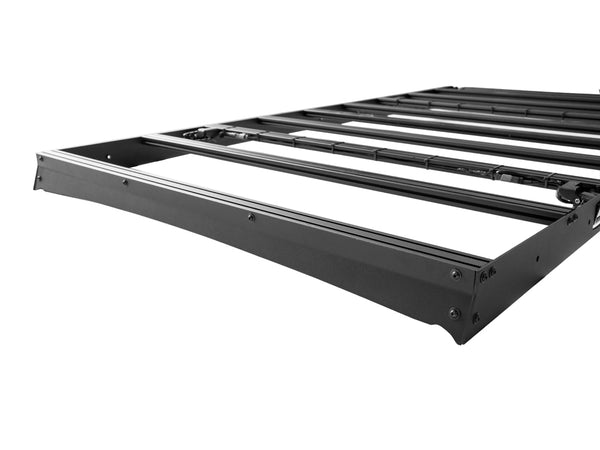

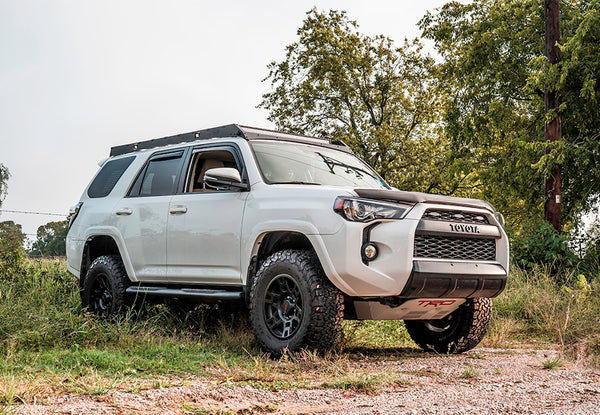

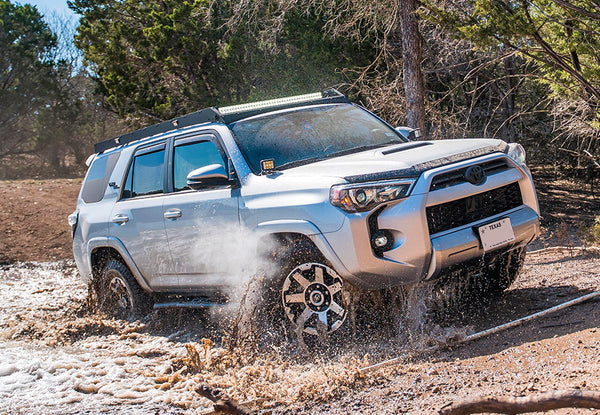

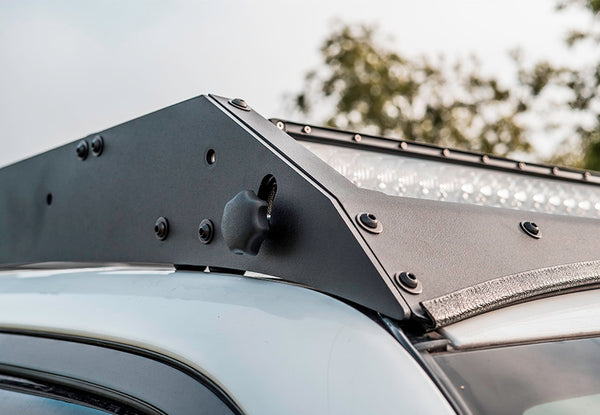

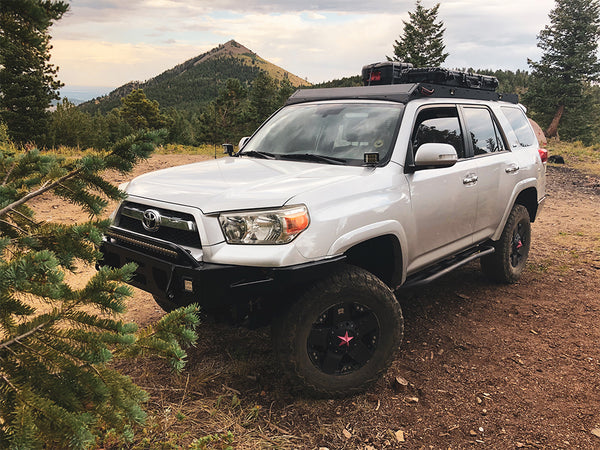

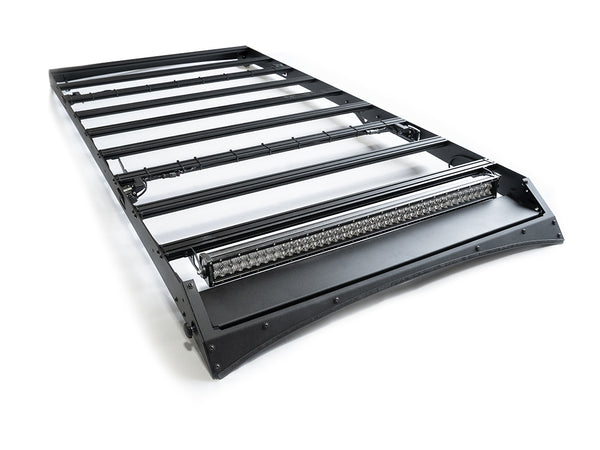

Premium Roof Rack For 2010-2024 Toyota 4Runner

1. Q: Will this roof rack work with a TRD snorkel?
   A:** No, this roof rack is not compatible with TRD snorkels.

2. Q: How much height does the rack add to my vehicle?
   A: The rack adds approximately 5 inches to the overall height of your vehicle.

3. Q: What vehicles is this rack designed to fit?
   A: This rack is custom-made for the 2010 - 2024 Toyota 4Runner. Fitment on other vehicles is not guaranteed unless explicitly stated.

4. Q: Is the installation hardware included?
   A: Yes, all required hardware for installation is included.

5. Q: Do I need anything additional for waterproofing?
   A: We recommend adding silicone for extra waterproofing during installation. (not included in purchase)

6. Q: Does the light bar come with mounting accessories?
   A: Yes, if you purchase a light bar, the wiring harness and mounting brackets are included.

7. Q: What lighting options are available with this rack?
   A: You can choose from:

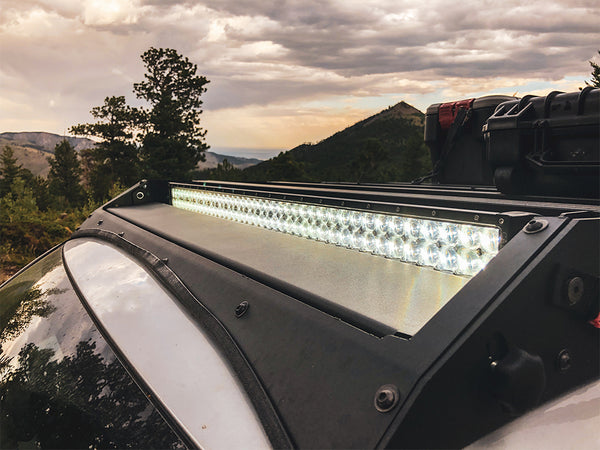

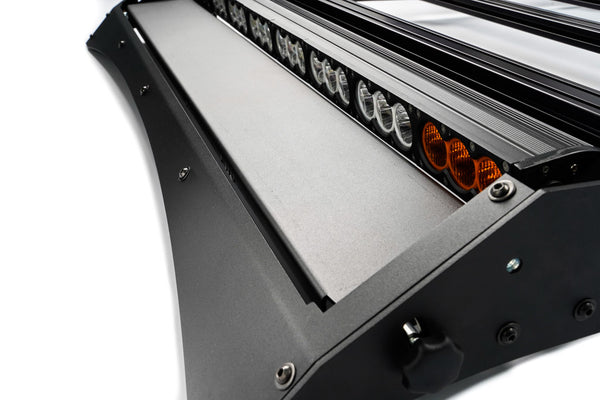

• 43" Dual Function LED Light Bar: Switch between white and amber modes for versatile lighting control.
• 42" White Dual Row Spot Beam: Focused, long-range illumination for highway or fast off-road driving.
• 42" White Dual Row Combo Beam: Balanced spot and flood lighting for all-around trail visibility.

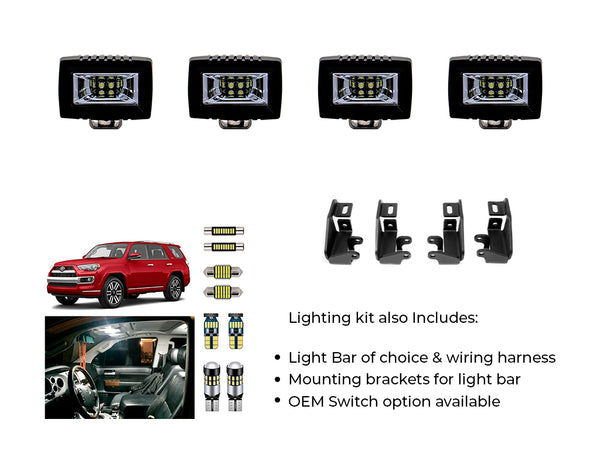

8. Q: What is included in the Complete Lighting Package for 4Runner?

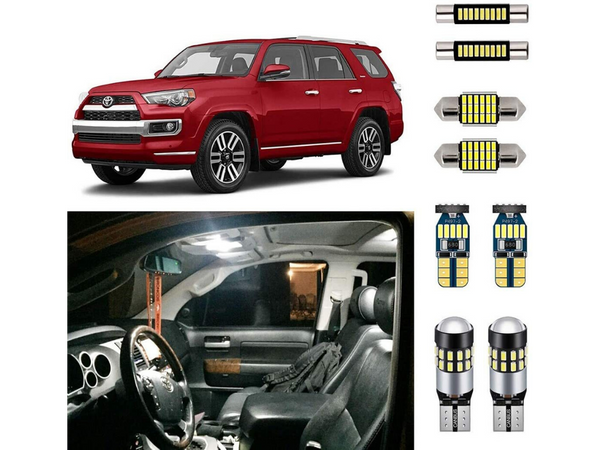

   A: It includes (4) 20W Pods and the Toyota 4Runner 16pc Interior LED Bulb Replacement Kit.

9. Q: What warranty does Cali Raised LED offer?
   A: We offer a 2-year warranty on all our products.

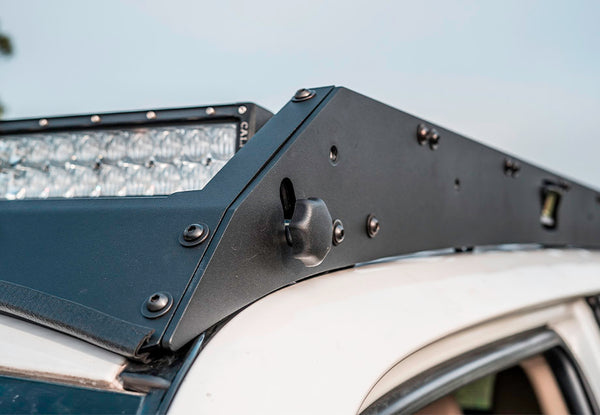

• Installation Type: 100% bolt-on — no cutting, drilling, or permanent modifications required.
• Tools Needed: Basic hand tools and a torque wrench.
• Time Required: Approximately 1.5 to 2 hours with two people recommended for easier handling.
• Hardware: All black powder-coated hardware and extrusion bars included.
• Waterproofing: We recommend applying automotive-grade silicone (not included in purchase) where the rack mounts to the roof to enhance weather resistance.

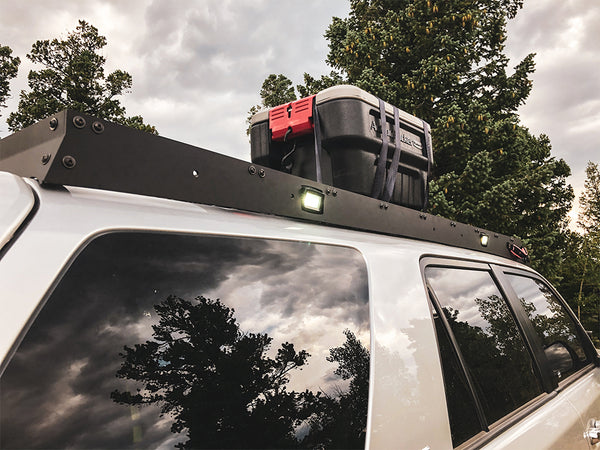

• Lighting Integration: All required wiring harnesses and brackets are included with light bar purchases. Custom wiring may be needed for side and rear lights.

Wiring Your Dual Function Light Bar:

Make wiring simple with the Cali Raised LED Dual Function Wire Harness — designed for a 100% plug-and-play installation. When you purchase a Dual Function LED Bar and matching harness from Cali Raised LED, all you need to decide is the switch height. It’s the cleanest and most efficient way to wire your dual-output setup. There are two ways you can wire your dual-function bar depending on how you would like it to operate.

If you prefer to wire the bar manually, here’s how:

OPTION 1: Single Harness — Control All Lights Together
Use this setup if you want both the amber and white LEDs to turn on/off simultaneously.

LED Bar Wire Colors:

• BLACK: Ground
• WHITE: Power for White LEDs
• GREEN: Power for Amber LEDs

STEPS:

1. Remove the plug from the harness.
2. Connect black wire from the LED bar to the black wire on the harness.
3. Combine the white and green wires from the LED bar and connect them to the red wire on the harness.

OPTION 2: Dual Harnesses — Control Amber & White Independently
Use this setup If you want to control the amber and white lights separately, you’ll need TWO HARNESSES — one for each function. This setup allows you to run the amber and white LEDs independently or together, depending on your needs.

The LED Bar will Have 3 Wires On It:

• BLACK: Ground
• WHITE: Power for White LEDs
• GREEN: Power for Amber LEDs

STEPS:

1. Remove the DT plugs from the ends of both wire harnesses to expose red and black wires.
2. Combine the black wires from both harnesses and connect them to the black wire on the LED bar.
3. Connect one red wire to the white wire (white LEDs), and the other red wire to the green wire (amber LEDs) on the LED bar.

This configuration gives you independent control over your amber and white light functions — ideal for adaptive lighting on and off the trail.
