Universal LP-R License Plate Reverse Light Bar

MPN:LPR_13_W_PC

LP-Reverse Refined: An evolution of our already amazing LP-Reverse. Made of 6061 CNC'd aluminum with an exterior grade powder-coated satin finish. The LP-R uses 13 genuine Cree XTE high output 5500K LEDs producing 2500LM to light up the world behind you!

Clean Look: No more yellow corn cob row of LEDs! With fewer chips and a gloss black internal trim piece, this new version is the definition of stealth. We were also able to increase the output from 1800LM to 2500LM with the 5W CREE chips

Simple Installation: Tap into your backup light bulb wires, fasten the bar over your license plate, and you're done! Uses the same connector and internal driver, so upgrading from an existing LP-Reverse is easy.

Safety Added: Provide yourself and others around you with more light to see and be seen by. This Reverse Light System is brighter than any other LED replacement bulb we sell! Enjoy the simplest and brightest LED back-up system on the market. We guarantee you'll love it!

The Original: We are the original inventor of the License Plate Reverse Light System. It was created directly and personally by the owner of VLEDS, not a copy or imitation. Our first version, the LPF, was released over a decade ago. The LP-R is our latest model. We spend years developing our products, unlike knock-off brands. When you buy from us, you're getting the real deal!

Installation Note: For vehicles with CAN bus or Body Control Modules, we recommend installing our LED bulbs to lower the overall current draw on the circuit. Keep in mind you will be adding nearly 2A and some systems will fault from the additional load. You will need to splice and solder into the back of the trailer harness for trucks equipped with factory LED reverse lights. For trucks with reverse sensing systems, you will need to install our LP Relay Kit.

Fitment NoteDoes not fit 2019+ RAM 1500 due to the LPR interfering with the tailgate when open.

Read More
NEW

$130.00

KEY FEATURES
SPECIFICATIONS
WHAT'S INCLUDED

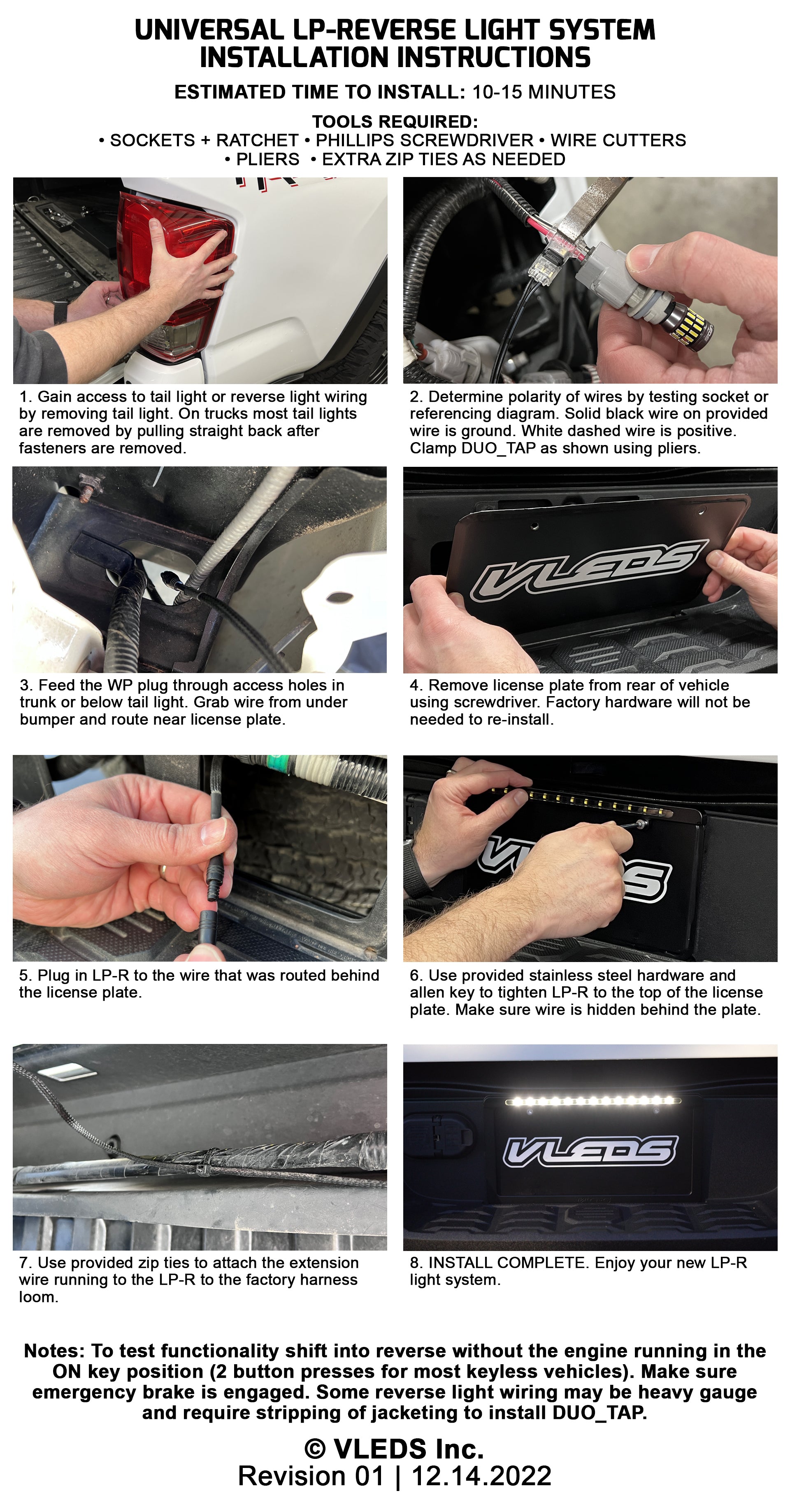

INSTRUCTIONS
  • Output: 2500lm measured output (8X brighter than a standard reverse light)
  • Output: 13X 5W Cree XT-E 5500K chips
  • Lens: UV-resistant polycarbonate
  • Waterproof: Potted and sealed for IP68 rating
  • Material: All aluminum CNC machined construction
  • Finish: Satin black exterior grade powder coating
  • Camera: Enhances the backup camera and does not blow out the feed
  • Driver: Dual internal drivers
  • Wiring: Includes DuoTap and 10ft wire extension to reach reverse light wires on any vehicle
  • OUTPUT: 2500LM
  • CURRENT DRAW @ 14.4V: 2.0A
  • OPERATING VOLTAGE: 12-18V
  • LIGHT SOURCE: Cree XTE
  • CHIP QUANTITY: 13
  • DRIVER STYLE: Constant Current
  • DIMENSIONS: See Drawing
  • CONTACT MATERIAL: Gold Plated
  • COLOR TEMP: 5500K PURE WHITE
  • 1x LP-Reverse Light Bar
  • 2x M6x1.0 18mm 304 Stainless Steel Cap Screws
  • 1x Allen Key
  • 1x DUO_TAP Splice Tap
  • 1x 10 Foot Extension Wire
  • 3x Small Zip Ties
