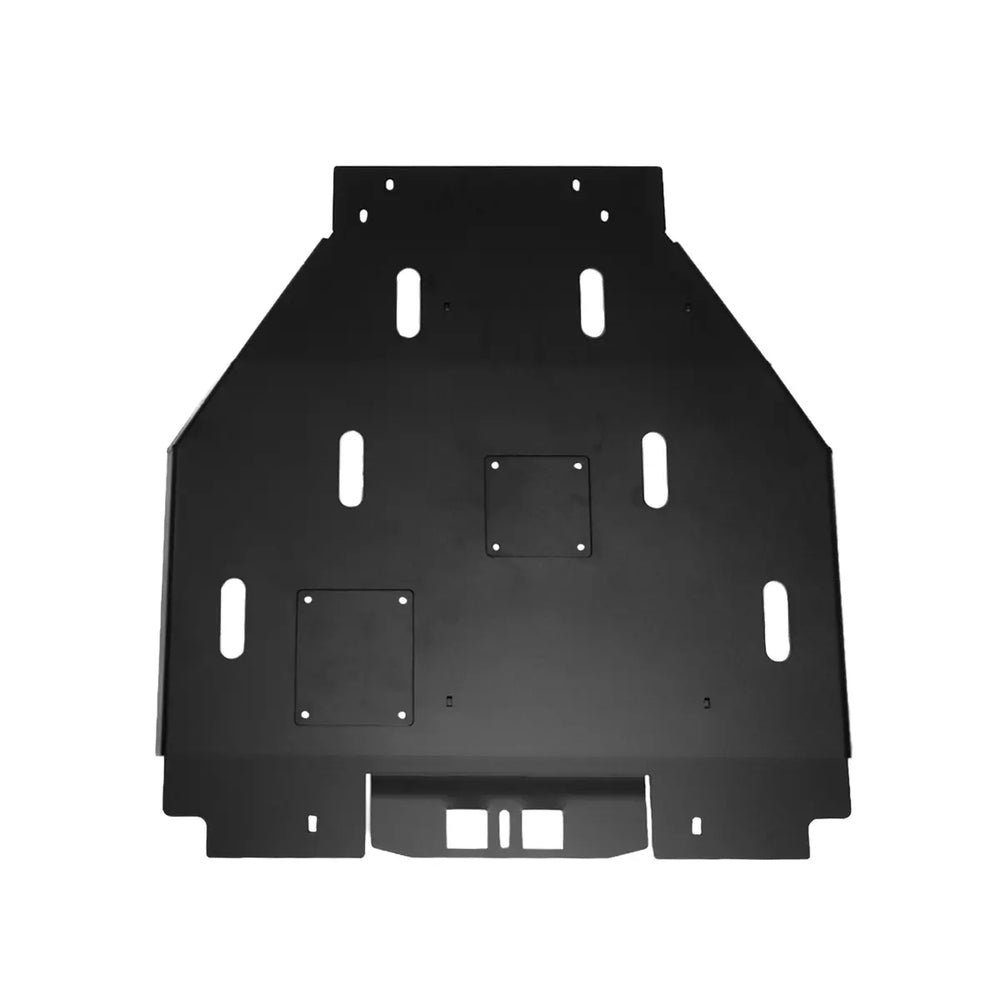

Cali Raised LED cat shield and transmission skid plate installed under a 2025+ Toyota 4Runner, black powder coat, two access doors.

6th Gen 4Runner Underbody Armor for Off Roading

Toyota 4Runner 6G Transmission Skid Plate Installed

Cali Raised · Ships from our Texas Facility

2025+ Toyota 4Runner Cat Shield & Transmission Skid Plate

Protect your 2025+ Toyota 4Runner's most vulnerable underbody components with the Cali Raised LED Cat Shield & Transmission Skid Plate. Built to defend your transmission and help deter catalytic converter theft, this combo skid adds confidence on rocky trails and peace of mind in daily parking lots. Choose the material and fitment (Hybrid or Non-Hybrid) that matches your build.

Cat Shield + Transmission Skid Plate Protection (2025+ 4Runner)

This underbody armor is designed to cover critical drivetrain areas, helping reduce damage from impacts, debris, and obstacles while also acting as a physical barrier around the catalytic converters. Precision-cut and formed for a clean, secure fit, it integrates seamlessly with other Cali Raised LED skid plates.

Choose Your Material

3/16" Steel: maximum strength for heavy trail use and high-impact protection
1/4" 5052 Aluminum: durable protection with reduced weight

All plates ship with a durable semi-gloss black powder coat finish for long-term corrosion resistance.

Key Benefits

Theft deterrence: adds a shield around catalytic converter areas to help discourage tampering
Off-road protection: helps protect transmission and underbody components from rocks and trail damage
Precision fit: laser-cut and CNC-formed for consistent alignment
Easy installation: bolts to factory mounting points—no drilling or welding required
System compatible: designed to work alongside other Cali Raised LED skid plates

Fitment

Vehicle: 2025+ Toyota 4Runner
Powertrain option: select Hybrid or Non-Hybrid before adding to cart

FAQ

Does this require drilling?
No. This skid plate is designed to bolt onto factory mounting points for a straightforward install.

Is this only for theft protection?
No. It's both a catalytic converter shield and a transmission skid plate, providing protection from theft attempts and trail impacts.

Which material should I choose?
Choose steel for maximum impact resistance, or aluminum if you want strong protection with lower weight.

Installation

45–90 minutes · No drilling · 7 steps · Helper recommended

Watch video Download PDF

Read installation steps

Cat Shield & Transmission Skid Plate Installation Instructions — 2025+ 4Runner (CR4325 / CR4327 / CR4329 / CR4331)

Install the Cali Raised LED Cat Shield & Transmission Skid Plate on your 2025+ Toyota 4Runner using the instructions below. The plate helps protect the transmission from rocks and trail damage and adds a physical barrier around the catalytic converter area to help deter theft.

Which kit do you have

Hybrid: CR4325 (steel) · CR4327 (aluminum)
Non-hybrid: CR4329 (steel) · CR4331 (aluminum)

The hybrid plate is 7 inches longer. Same hardware, same steps.

Fitment and installation time

Fits 2025+ Toyota 4Runner (6th Gen), hybrid or non-hybrid; pick the plate that matches yours. Works with most aftermarket suspension lifts; check fit on custom or extreme setups. Estimated installation time: 45–90 minutes. Bolts to factory mounting points; no drilling or welding.

Included in the kit (as listed in the install video)

One plate with two access doors (four bolts each)
4 M8 × 35 mm bolts and 4 5/16 washers
8 3/8 button-head bolts and 1 3/8 × 1-1/2 in button-head bolt
11 3/8 washers
2 3/8 lock nuts, 1 3/8 snap nut, 1 3/8 snap-in nut plate
2 1/2 in washer plates
2 3/8 carriage bolts

Tools you supply

Ratcheting wrench
12 mm socket and 13 mm socket
7/32 Allen key
9/16 box-end wrench

Before you start

Let the exhaust cool completely before you start. Park on level ground and support the vehicle on jack stands; never work under a vehicle held up only by a jack. Have a helper for the lift. If there is a plastic guard under your 4Runner, remove it first.

Installation steps

Remove the plastic guard. If there is a plastic guard under your 4Runner, remove it first. The 4Runner in the video has none.
Note where the plate sits. This plate overlaps the front skid and sits on top of it, the Cali Raised front skid in the video or the stock skid. A front skid is not required. Find that edge now, before you lift the plate.
Fit the carriage bolts. Put the two supplied 3/8 carriage bolts through the two holes in the crossmember. This is where the back end of the plate is secured.
Lift the plate into place. Set the back of the plate in, bring it up and attach it at the carriage bolts to hold it in place. If you have someone to help, this is the time.
Start all the hardware. While your helper holds the plate up, get every bolt started by hand before you tighten any of them.
Fit the two access doors. Each door is held by four bolts. The video recommends fitting both doors before you lift the plate, but fitting them after it is installed works too.
Tighten everything. Work around the plate until every fastener is tight and the plate does not move. Do not over-tighten. If the hardware will not seat the way it should, stop and email support before you force it.

Check your work

The plate sits flat and tight, and does not move.
Both carriage bolts at the back are tight.
Both access doors are on, four bolts each.
With a front skid: the plate overlaps it and sits on top.

Need help?

If the hardware will not seat correctly, stop before forcing it and contact support@caliraisedled.com.

Instructions based on the Cali Raised LED installation guide for CR4325 / CR4327 / CR4329 / CR4331, Rev B, September 24, 2026.

Frequently Asked Questions

What year Toyota 4Runner does this cat shield and transmission skid plate fit?

This cat shield and transmission skid plate is designed specifically for 2025+ Toyota 4Runner models.

Does this cat shield help prevent catalytic converter theft?

Yes. The integrated cat shield adds a layer of protection over the catalytic converter, making it significantly harder to access for theft attempts.

Does this cat shield and transmission skid plate require drilling or cutting to install?

No. This cat shield and transmission skid plate is a 100% bolt-on installation with no drilling, cutting, or permanent modification required.

What is this cat shield and transmission skid plate made of?

The cat shield and transmission skid plate is constructed from 3/16" laser-cut steel with a black powder coat finish for long-lasting corrosion resistance.

How thick is the steel on this cat shield and transmission skid plate?

The cat shield and transmission skid plate is made from 3/16" steel, which provides solid protection from rocks and trail debris without excessive weight.

What does this cat shield and transmission skid plate protect?

This skid plate is designed to protect the catalytic converter and transmission from rock strikes and catalytic converter theft on your Toyota 4Runner.

How long does it take to install this cat shield and transmission skid plate?

Installation typically takes 45 to 90 minutes with basic hand tools and a helper for the lift.

Is this cat shield and transmission skid plate compatible with aftermarket suspension lifts?

Yes. This cat shield and transmission skid plate is compatible with most aftermarket suspension lift kits for the 2025+ Toyota 4Runner. Fitment with custom or extreme setups should be verified.

Is this cat shield and transmission skid plate made in the USA?

Yes. This cat shield and transmission skid plate is proudly designed and fabricated in the USA.
