- Designed for the 2016–2023 Toyota Tacoma lower bumper opening.
- Positions the light bar behind the lower grille.
- Includes a 32-inch dual-row 5D Optic OSRAM LED light bar in your choice of Spot or Combo beam.

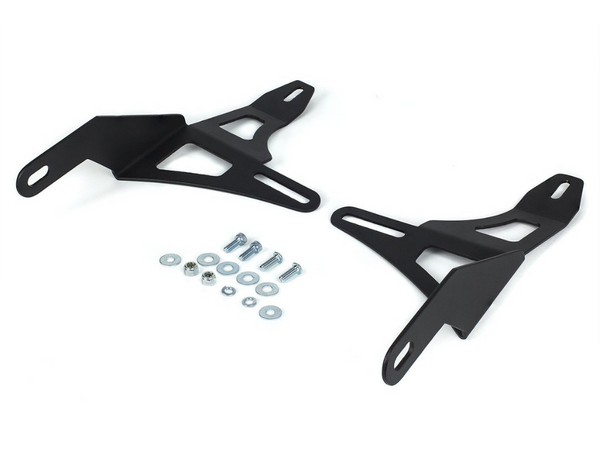

- Black powder-coated mounting brackets.
- Wiring harness with a standard switch included in every configuration.
- No cutting or drilling required; compatible with all trims, grilles, and sensors for the listed Tacoma years.
- Two-year warranty on all kit components.
- Optional Tall or Small OEM-style BUMPER LIGHT BAR switch with blue backlighting.
Features
Specifications
Included
Important Notes
Hidden vs Flush Mount
Warranty
Spot Beam v Combo Beam
Manufacturer-rated specifications for this kit. Wattage and lumen values below are rated values, not independently measured results.
32-inch 5D Optic OSRAM LED light bar (Spot and Combo beam, both rated the same):
- Rated power: 300W
- Voltage: 12V
- Rated light output: 30,000 lumens
- Ingress protection rating: IP68
OEM-style dash switch face dimensions:
- Small: 1.28 × 0.87 in (32.54 × 22 mm)
- Tall: 1.54 × 0.83 in (39 × 21 mm)

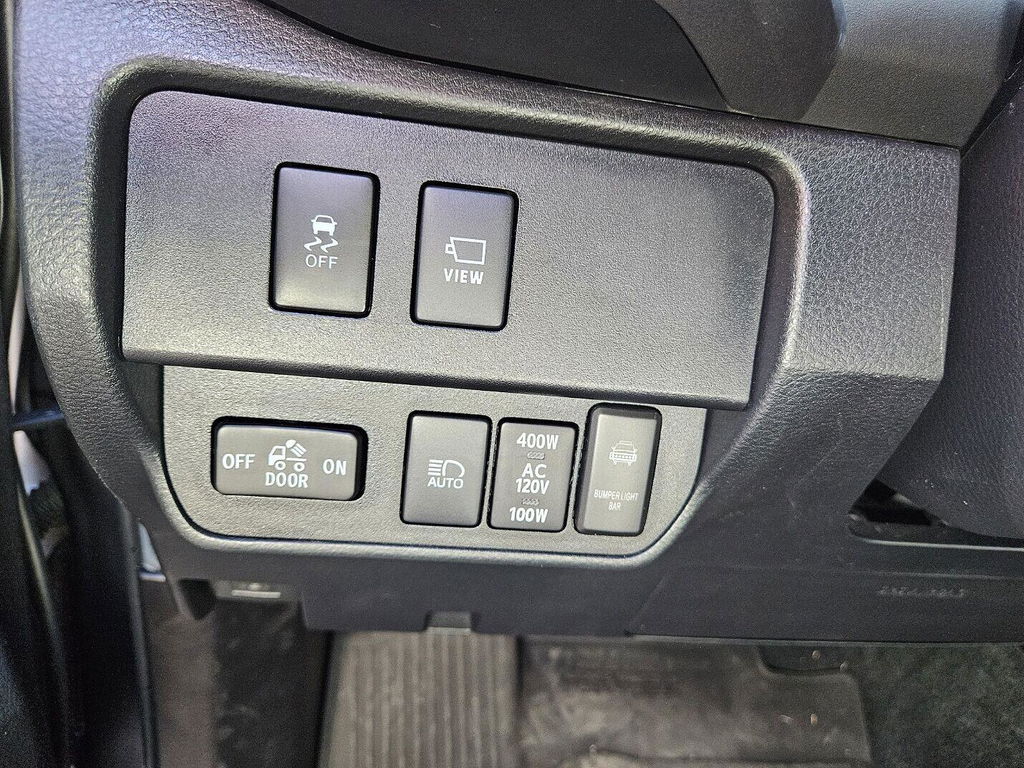

These are switch face dimensions, not the mounting-hole or cutout dimensions. Use the dashboard comparison image below to identify which factory switch location your Tacoma has before choosing Tall or Small.
Shipping: in-stock items usually ship within 1–3 business days.

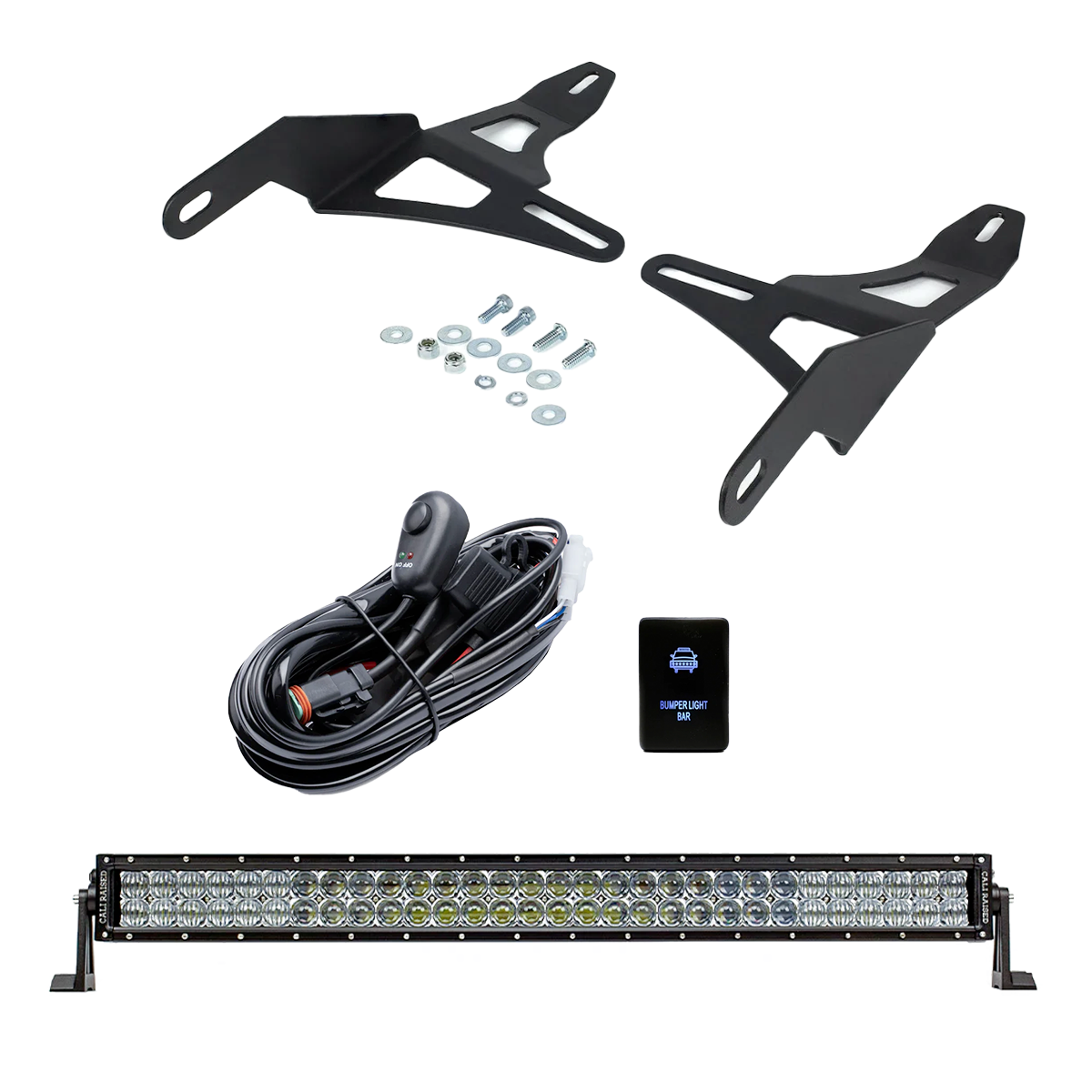

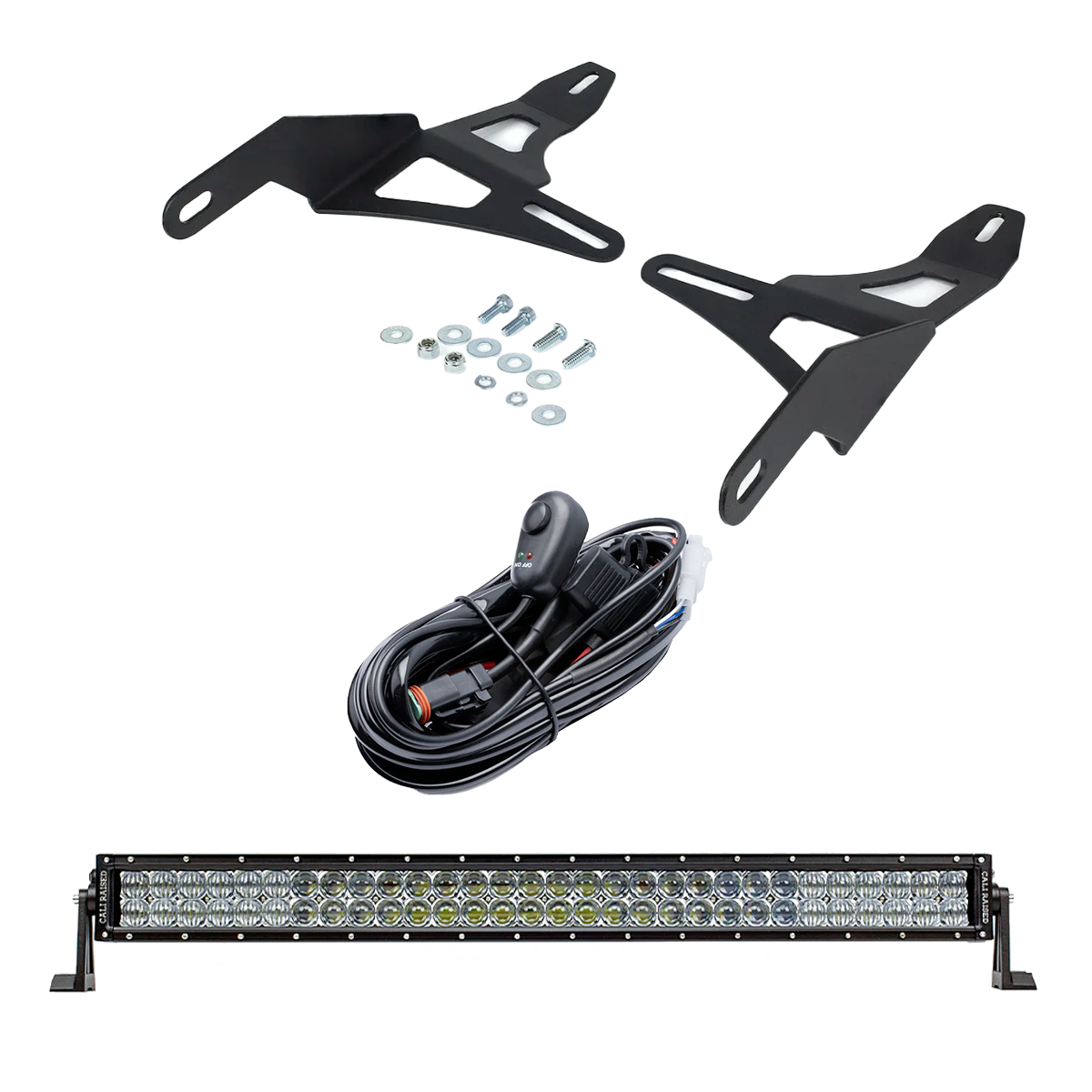

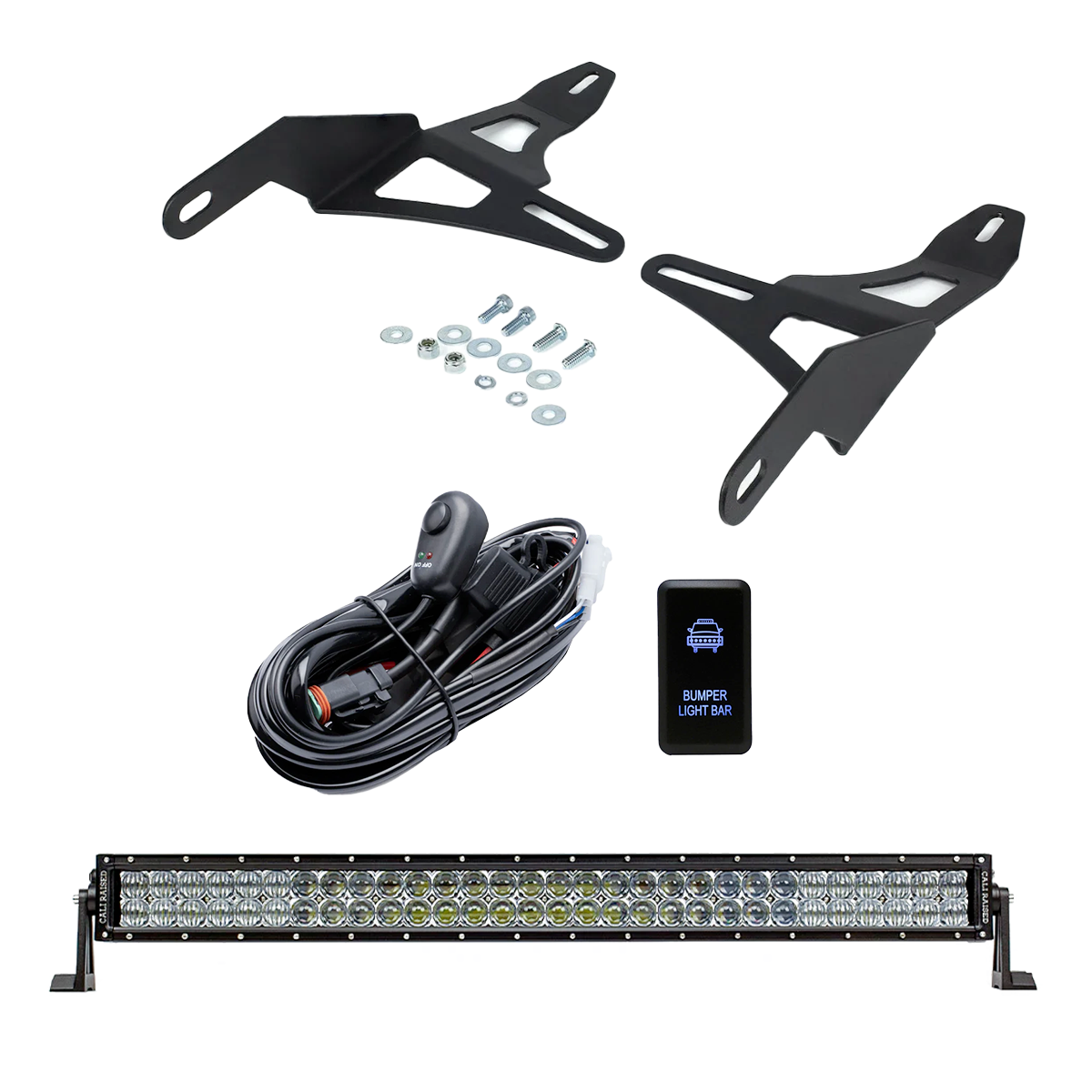

- One 32-inch dual-row 5D Optic OSRAM LED light bar in the selected beam pattern.
- One pair of vehicle-specific hidden lower-bumper mounting brackets.
- Mounting hardware.
- Wiring harness with a standard switch.
- One OEM-style BUMPER LIGHT BAR dash switch only if a Tall or Small switch option is selected.
The Bolt On Relay Holder shown under Verified Add-Ons is a separate optional purchase.
- Fits the 2016–2023 Toyota Tacoma, including all trims, grilles, and sensors. No cutting or drilling required.

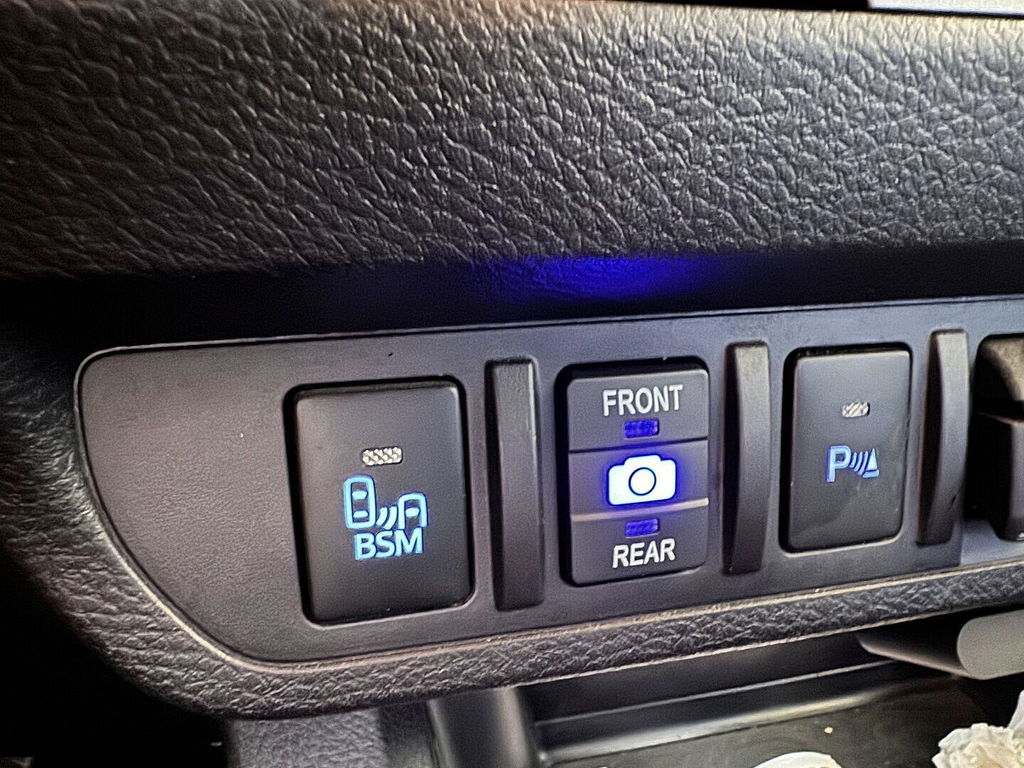

- Select the OEM-style dash switch using the actual switch opening in your vehicle. See the Specifications tab for switch face dimensions and the dashboard comparison image.
- "No Switch" still includes the standard wiring-harness switch that ships with every configuration — only the optional OEM-style dash switch is left out.
- Installation includes mounting the light bar, routing the harness, and making the applicable electrical connections.
- Review the official installation video before starting. The mounting guide covers grille access and wind-deflector removal. The OEM-style switch wiring video describes the optional dash switch only — it does not describe the standard harness switch included in every kit.
Watch the hidden lower-bumper kit installation · Watch OEM-style switch wiring

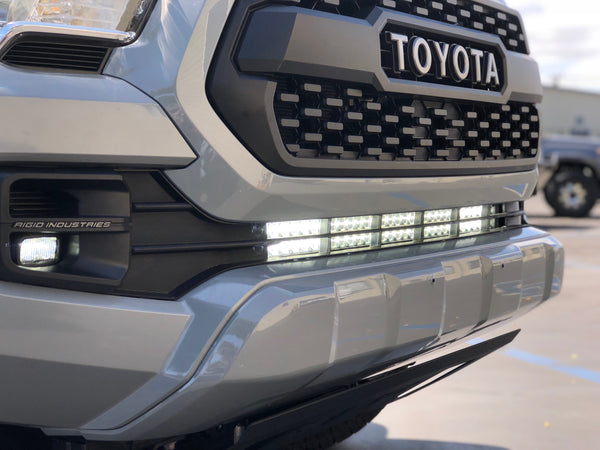

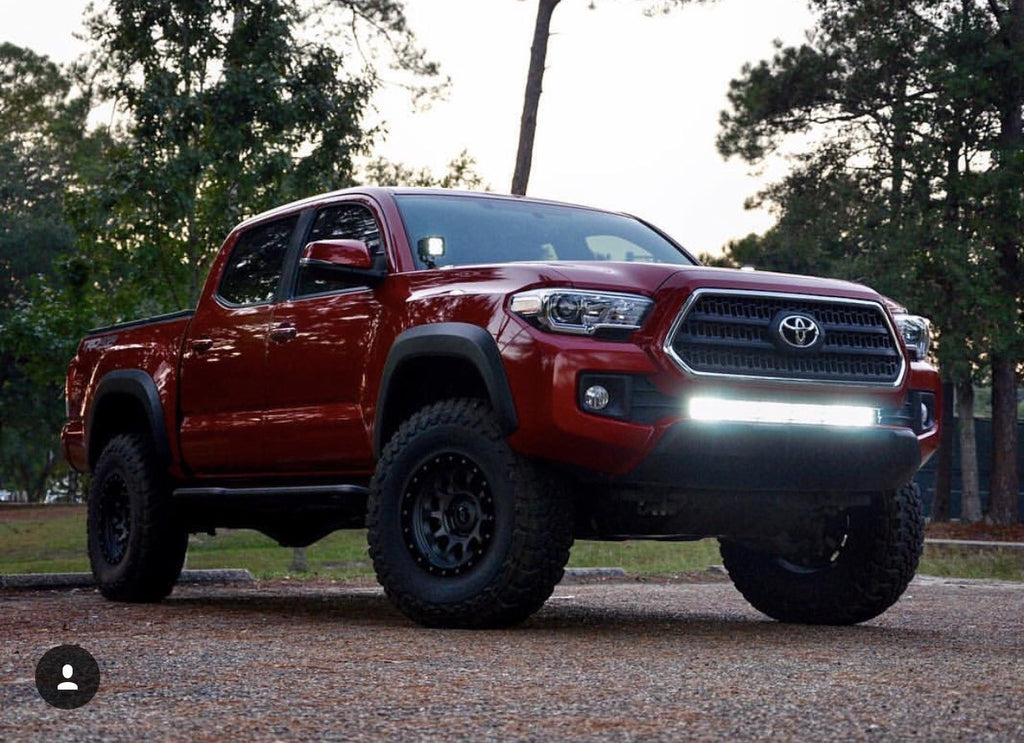

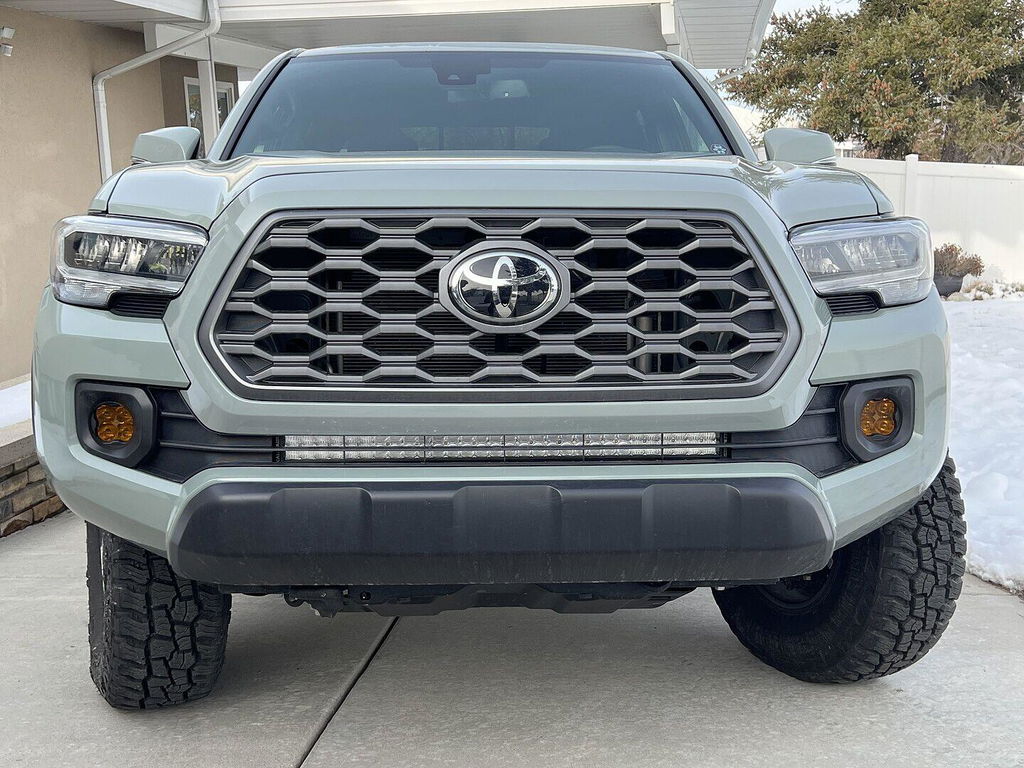

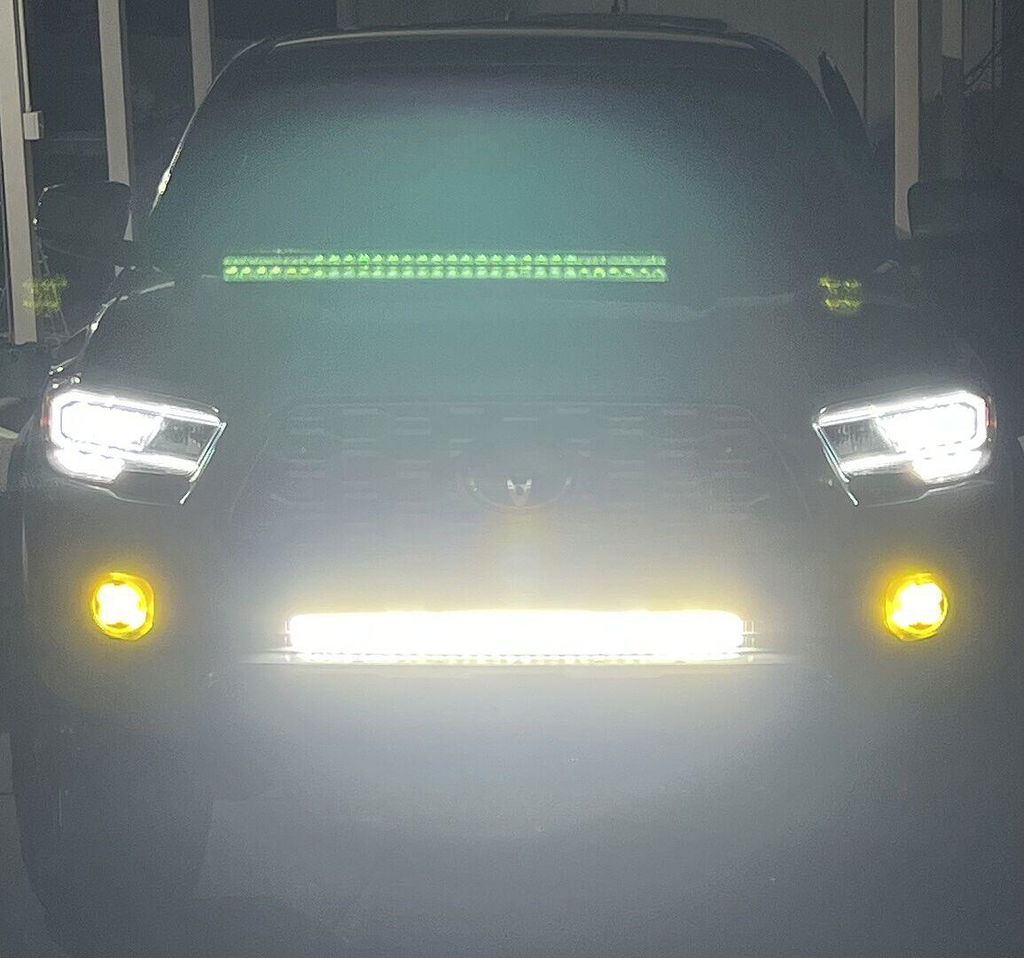

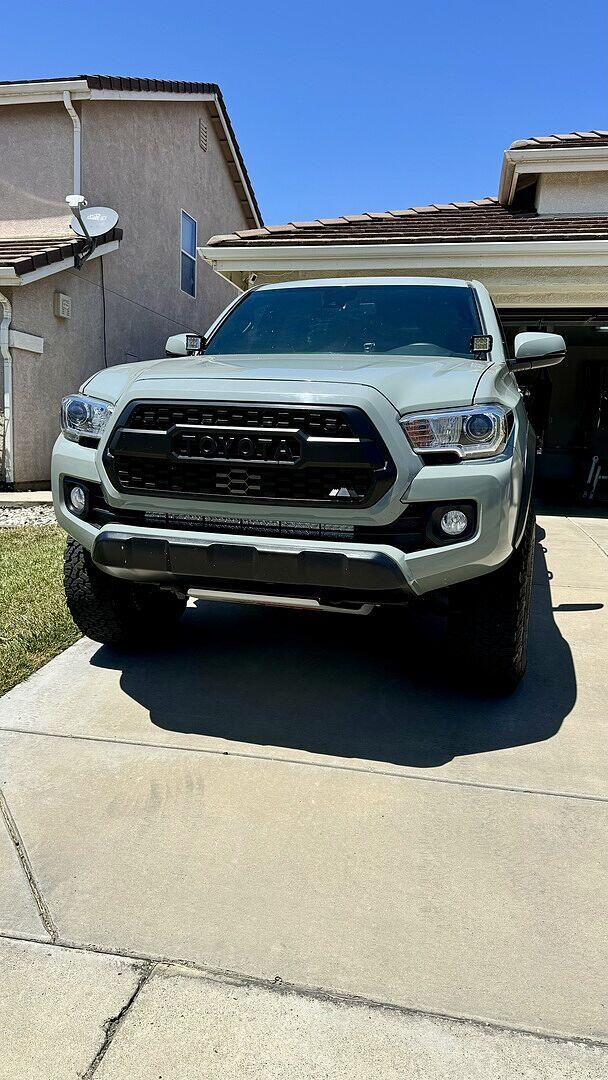

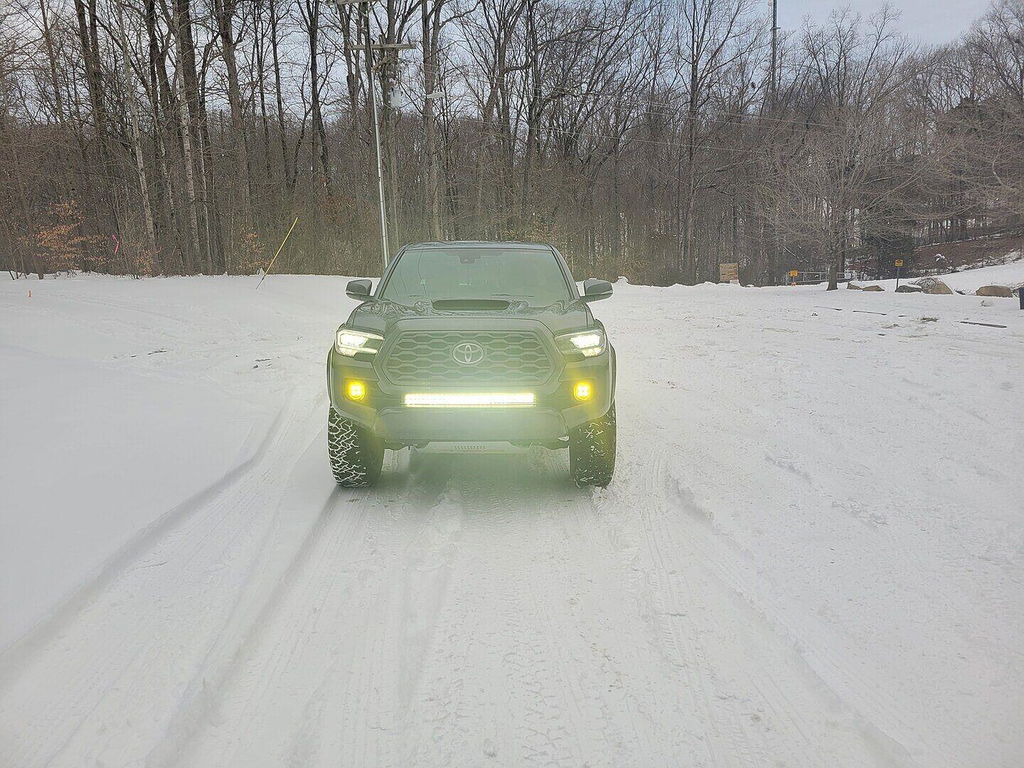

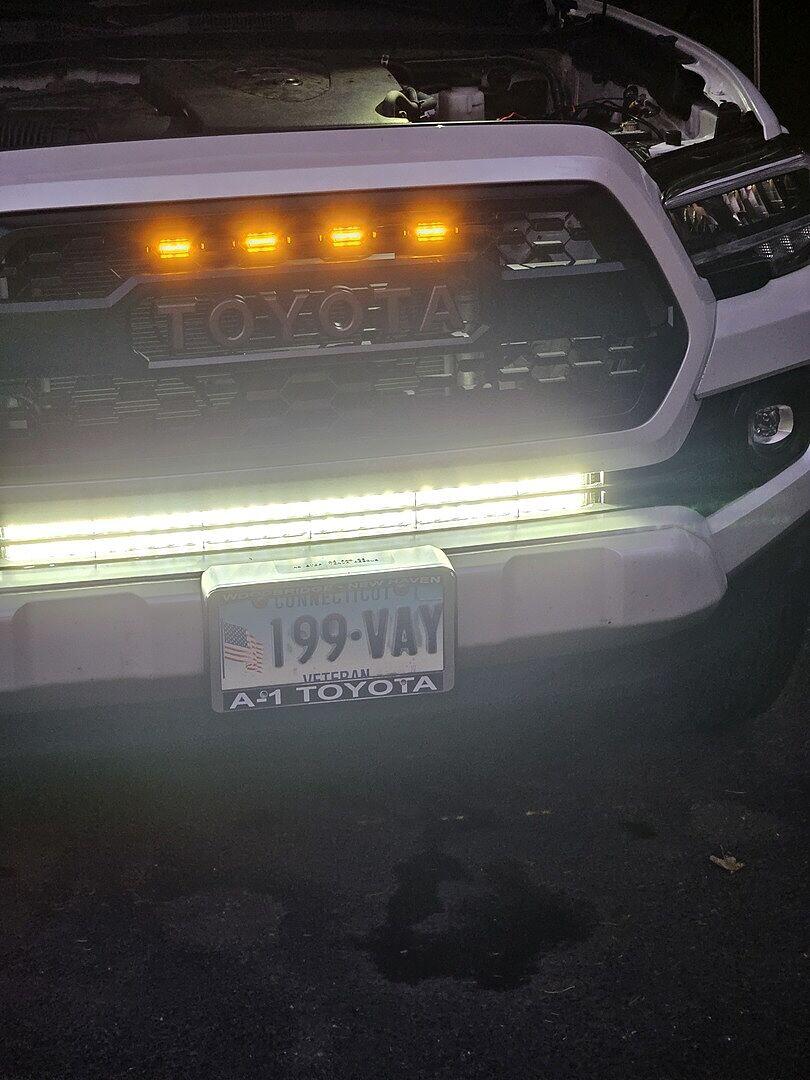

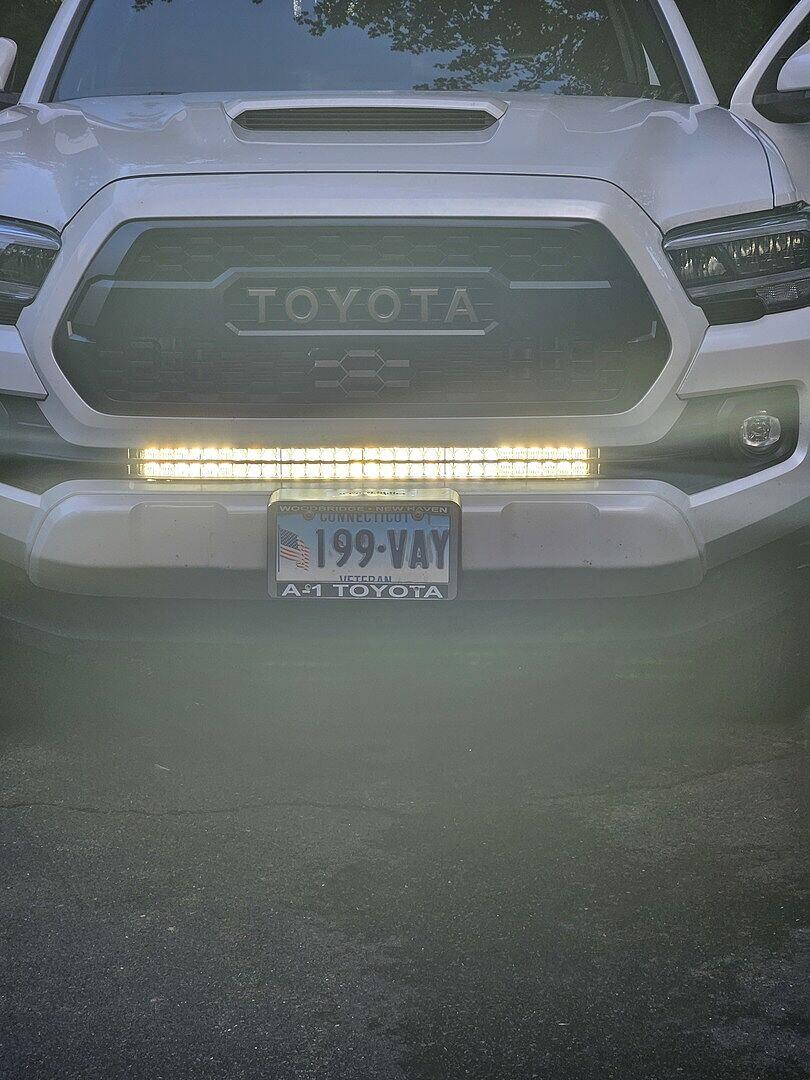

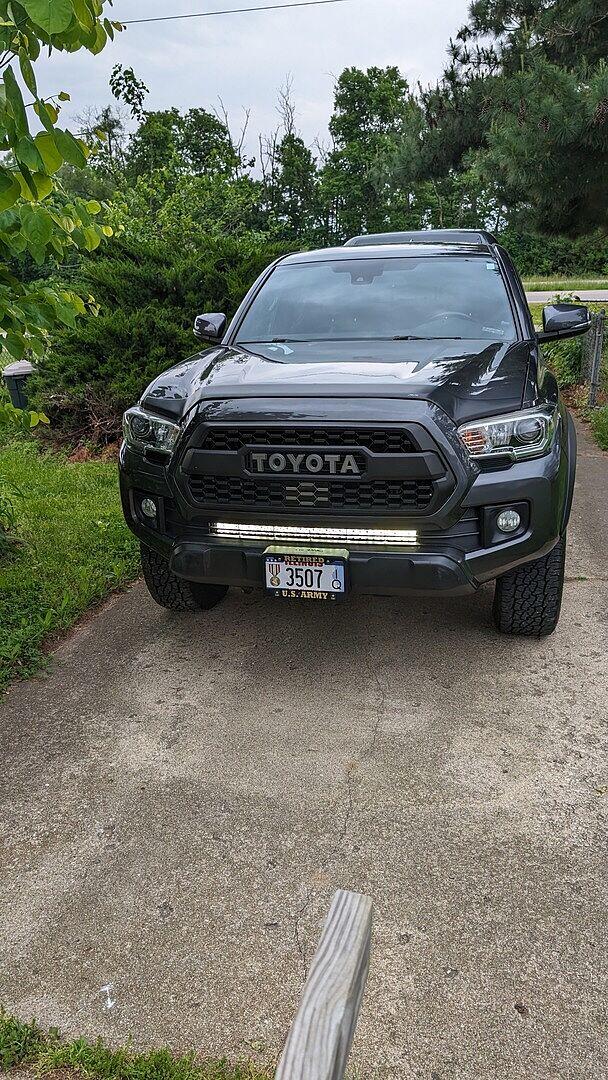

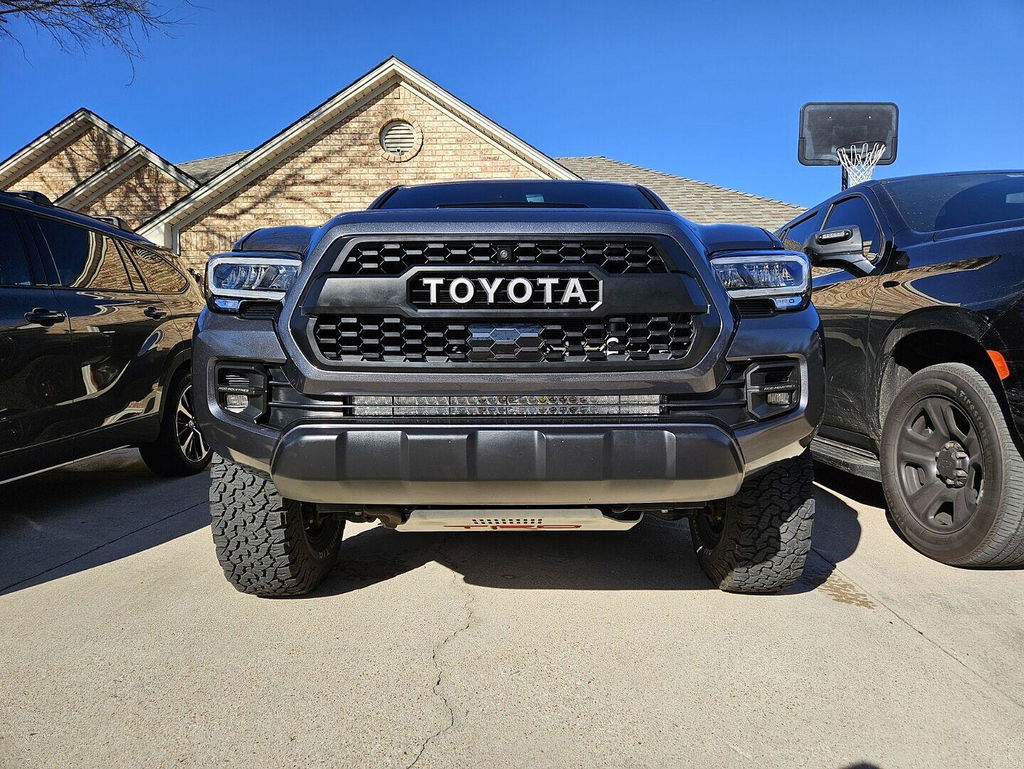

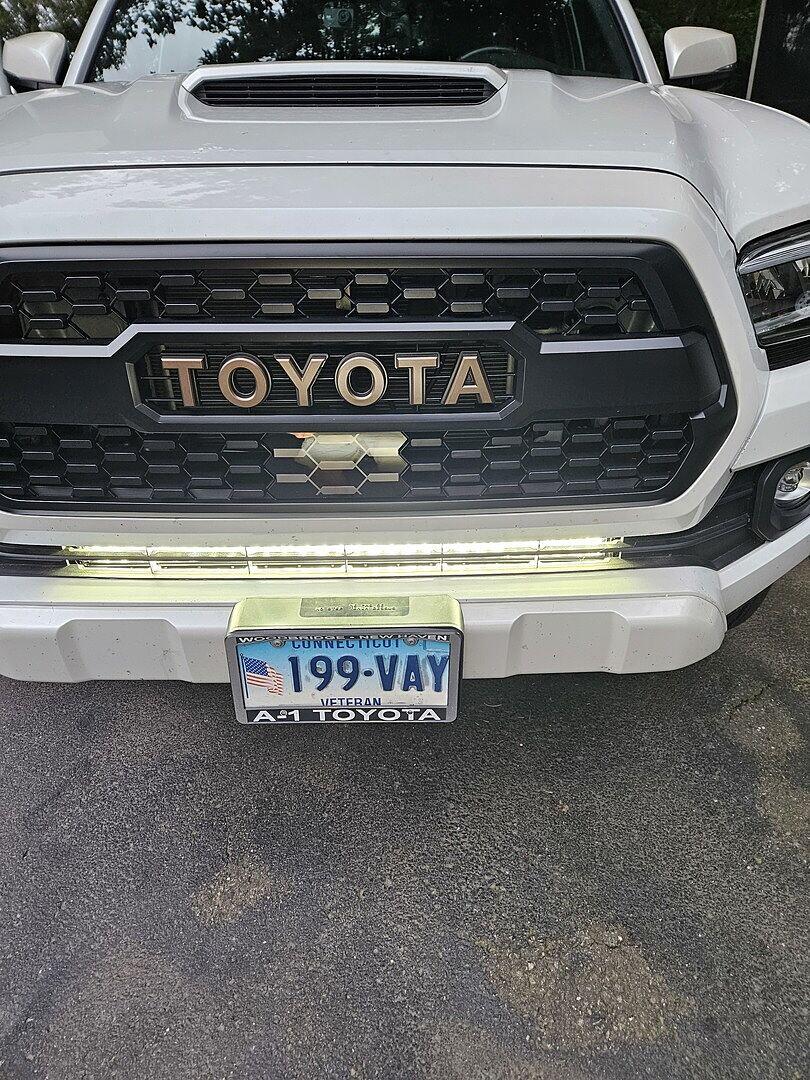

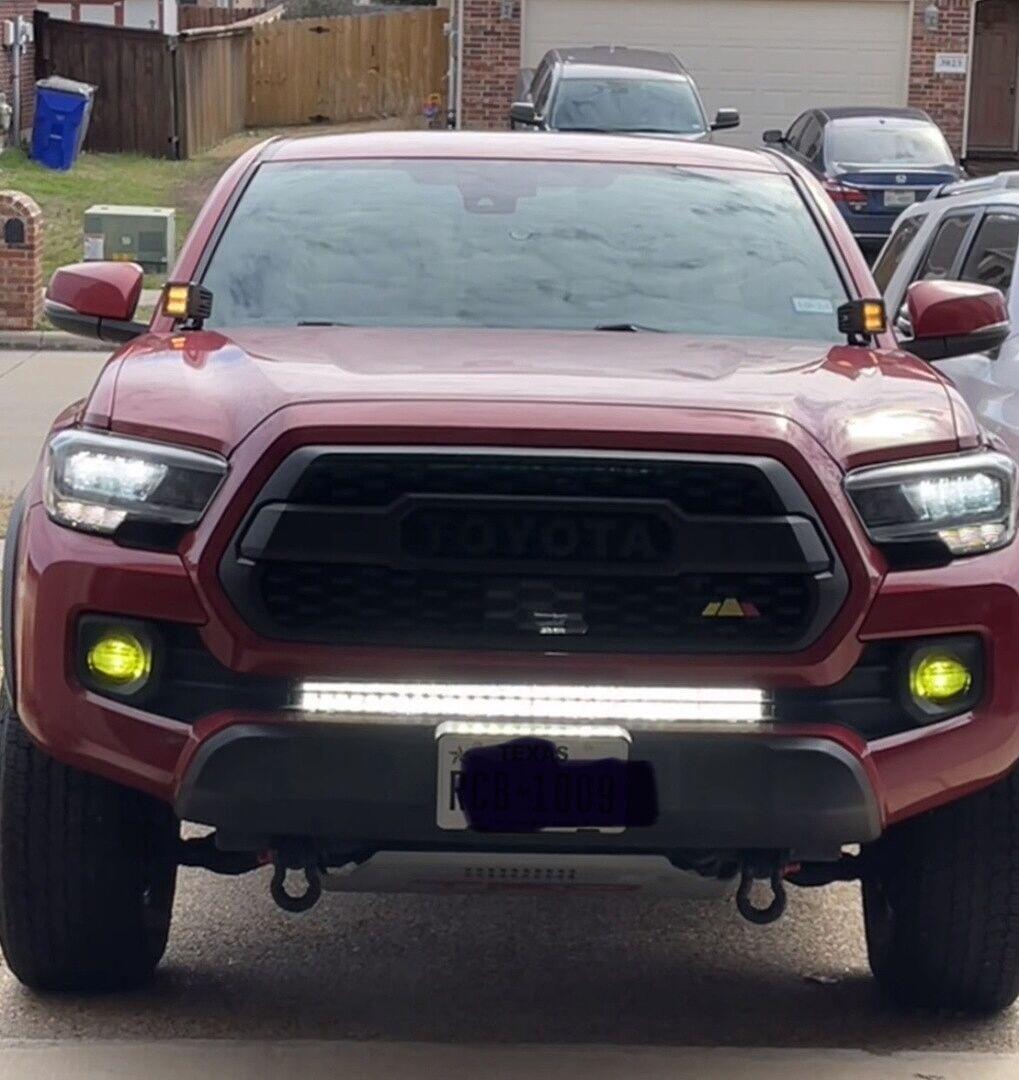

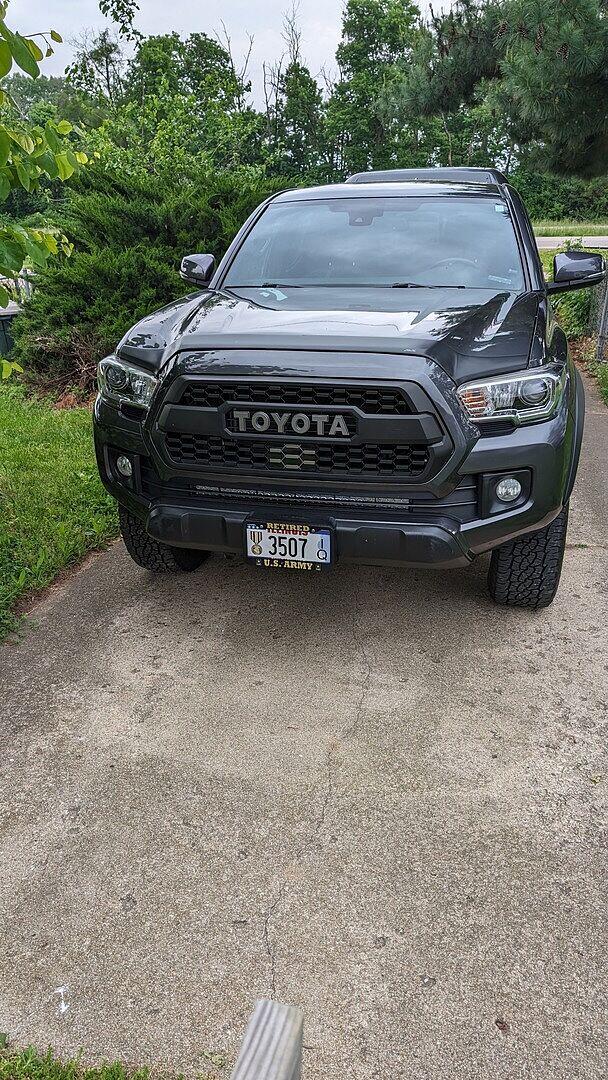

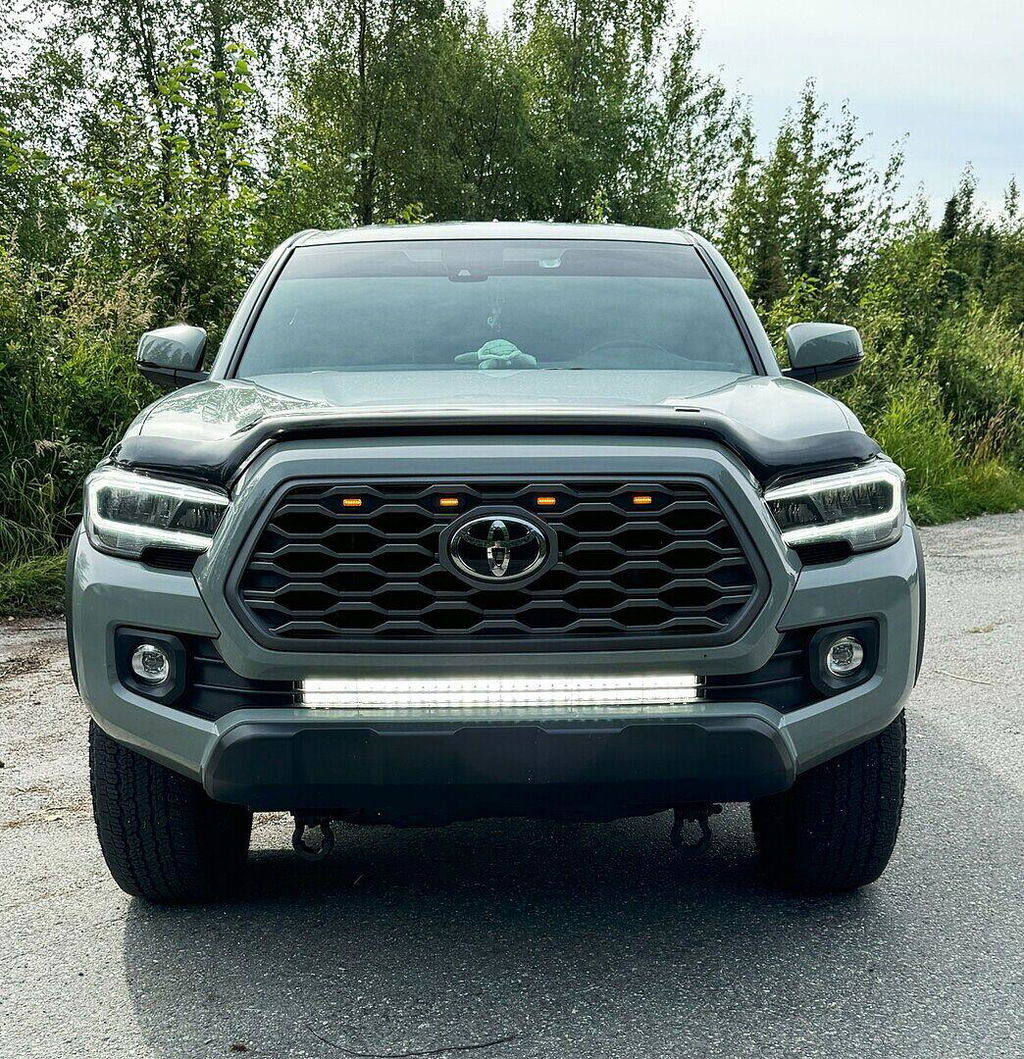

This is the hidden-mount kit. Its light bar sits behind the grille in the lower bumper opening.
A flush mount places the light bar at the outside of the opening with the light exposed. Flush mounts use a different configuration and can have different modification and light-bar requirements.
Choose the mounting kit for your specific vehicle and light bar. Do not assume this kit's fitment applies to a different mounting style.
All components in this kit are covered by a two-year warranty, including the mounting brackets, light bar, wiring harness, and optional OEM-style dash switch.

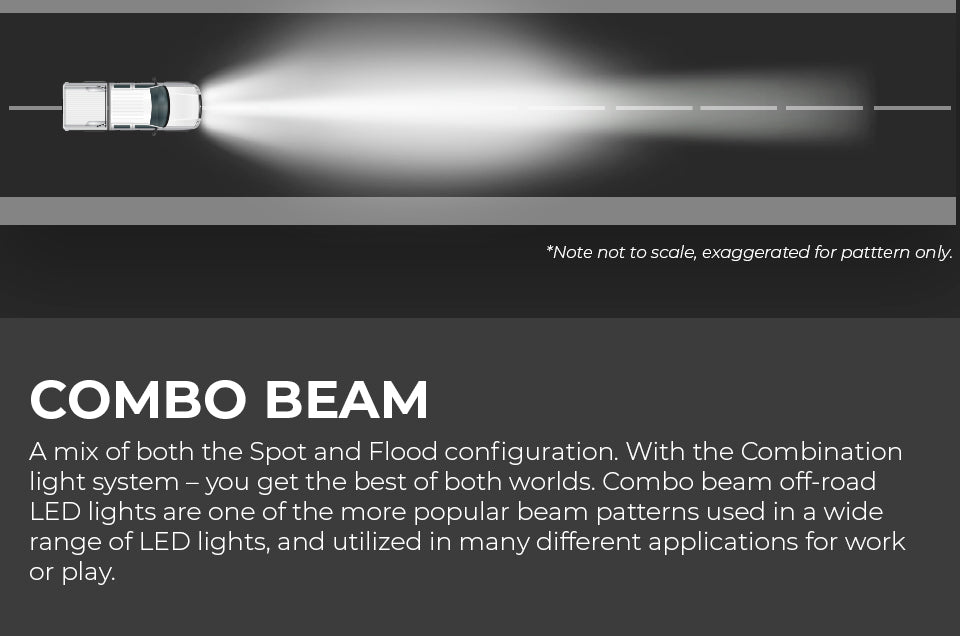

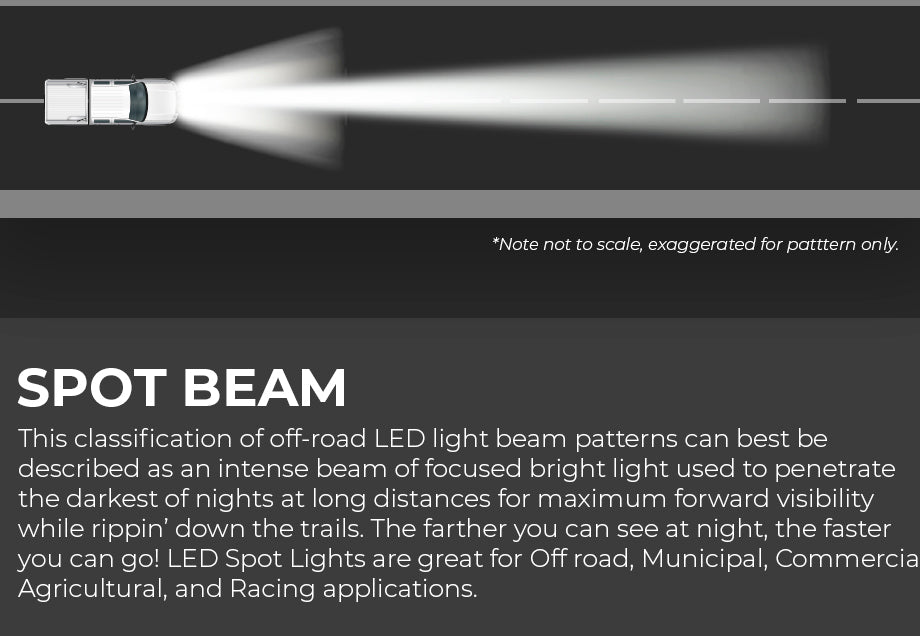

Spot: a focused light pattern.
Combo: a combination of focused and wider illumination.
The illustrations below explain the beam shapes. They are not to scale and do not represent measured output or lighting distance for this kit.
Installation
Installation guide for 2016–2023 Toyota Tacoma 32-Inch Hidden LED Light Bar Kit.
Read installation steps
Install the 2016–2023 Tacoma Hidden Lower-Bumper Light Bar Kit
Featured Photos & Installation Videos
Frequently Asked Questions
Does installation require cutting or drilling?
No. This kit installs without cutting or drilling on the listed 2016–2023 Toyota Tacoma application.
What warranty comes with this kit?
All kit components have a two-year warranty, including the mounting brackets, light bar, wiring harness, and optional OEM-style dash switch.
What Toyota Tacoma years is this kit designed for?
This kit fits the 2016–2023 Toyota Tacoma and is compatible with all trims, grilles, and sensors for those model years.
Does this kit include the light bar and wiring harness?
Yes. Every current configuration includes a 32-inch dual-row 5D Optic OSRAM LED light bar, mounting brackets, and a wiring harness with a standard switch. Choose Spot or Combo beam when ordering.
What does hidden mounting mean?
The light bar sits behind the grille in the lower bumper opening. The grille remains in front of the light bar, unlike a flush mount that places the light at the outside of the opening.
What is the difference between Spot and Combo beam?
Spot concentrates the light into a focused pattern. Combo combines focused and wider illumination. The beam illustrations show the pattern difference; they are not measurements of output or distance.
Is an OEM-style dash switch included?
An OEM-style BUMPER LIGHT BAR dash switch is included only when you select a Tall or Small switch option. Both options in this kit have blue backlighting. Every wiring harness includes a standard switch, including when No Switch is selected. Add the OEM-style switch option if you want a switch that fits a factory dash location.
Should I choose the Tall or Small switch?
Match the switch to the actual dash opening where you plan to install it. Use the switch-size comparison image to identify the style; do not choose by model year alone.
Can I buy just the mounting brackets?
Yes. Cali Raised LED has a separate 32-inch Lower Bumper Hidden LED Light Bar Mounting Brackets listing for the 2016–2023 Toyota Tacoma. That listing is for brackets rather than the full light-bar kit.
Where can I find installation help?
The installation resources on this page include Cali Raised LED videos for the hidden lower-bumper kit and OEM-style switch wiring. Review the guides before starting; the switch installation requires electrical connections.
